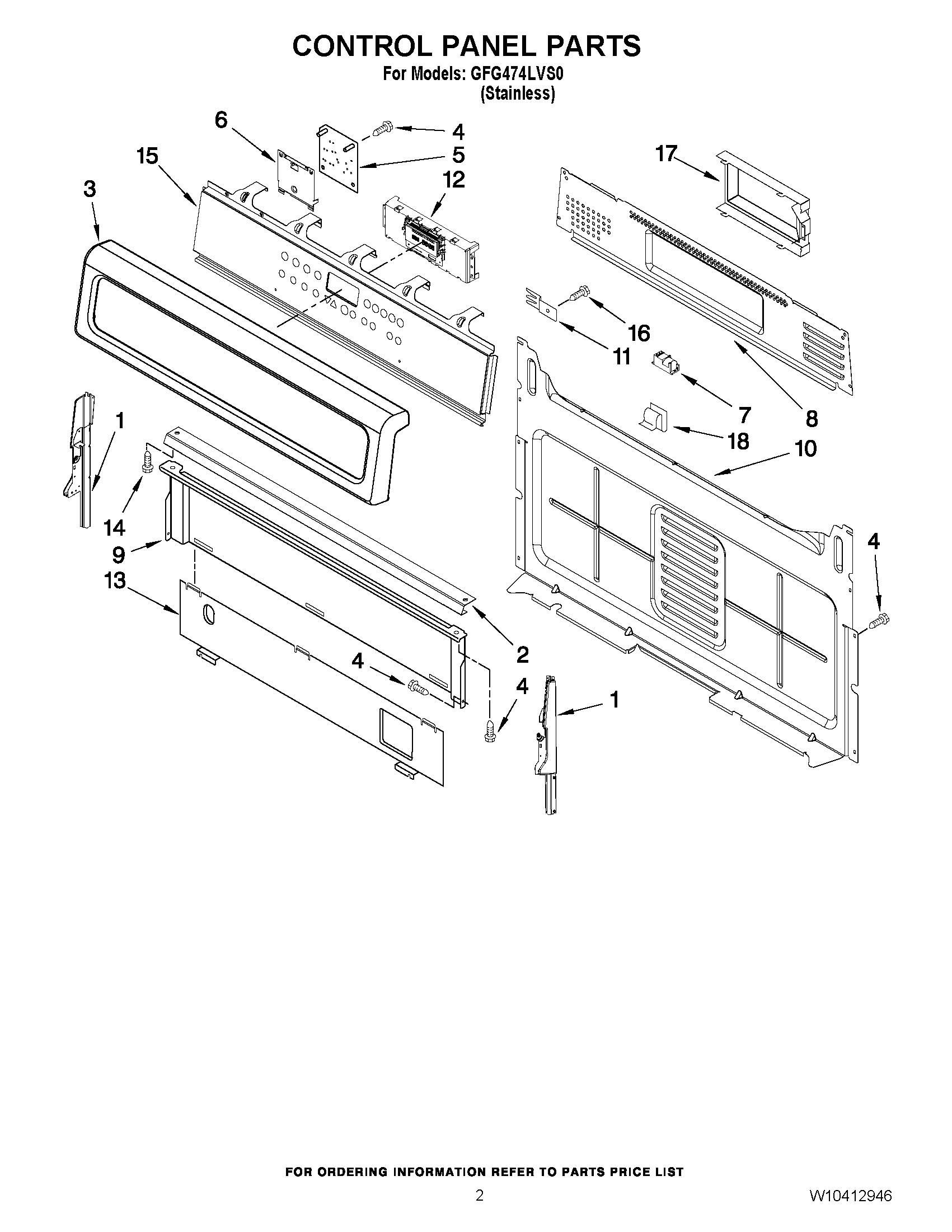

GFG474LVS0 02 – CONTROL PANEL PARTS

GFG474LVS0 02 – CONTROL PANEL PARTS

Written by

in

GFG474LVS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
2Brkt-Mntg, Console
3Panel, Control (Stainless)
4SCREW
5WPW10331686 Whirlpool Oven Spark Module
6Brkt-Mntg, DSI
7MODULE, SPARK
8W10198745 Whirlpool Rear Cover
9W10192841 Whirlpool Heat Shield
10W10184251 Whirlpool Rear Cover
118523412 Whirlpool Mounting Bracket
12Control, Range
138053505 Whirlpool Oven Shield
14WP3400832 Whirlpool Screw
15Active Overlay Assembly (Black)
16WP3196557 Whirlpool Screw
17W10158780 Whirlpool Rear Cover
18WP8273564 Whirlpool Clip
