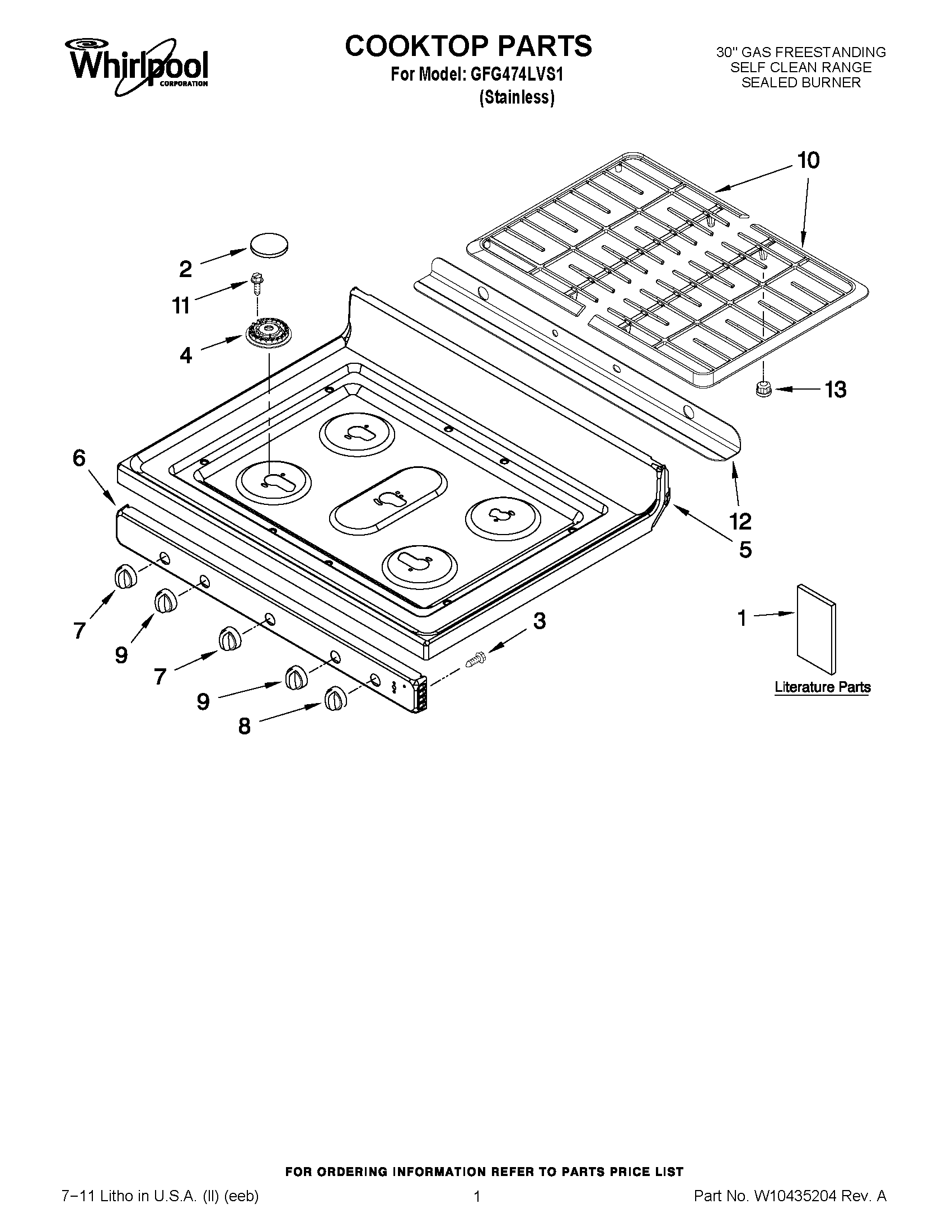

GFG474LVS1 01 – COOKTOP PARTS

GFG474LVS1 01 – COOKTOP PARTS

Written by

in

GFG474LVS1 01 – COOKTOP PARTS

Products

PositionProduct
NIGRIDDLE
1Installation Instructions
1INSTALLATION INSTRUCTIONS
1TECH SHEET
1SAFER COOKING TIPS (ENGLISH
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
2WPW10183374 Whirlpool Burner Cap
3WP3196557 Whirlpool Screw
4WPW10406878 Whirlpool Burner Base (16K)
4WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
4WPW10406243 Whirlpool Burner Head Auxiliary 6K
5Cooktop (Black)
6Panel, Manifold (Stainless)
7WPW10160649 Whirlpool Knob
8WPW10134134 Whirlpool Knob
9WPW10134131 Whirlpool Knob
10KIT, BURNER GRATE (BLACK)
11WP3368921 Whirlpool Screw
12DEFLECTOR, FLUE (BLACK)
138186321 Whirlpool Range Foot Pads Set of 4
