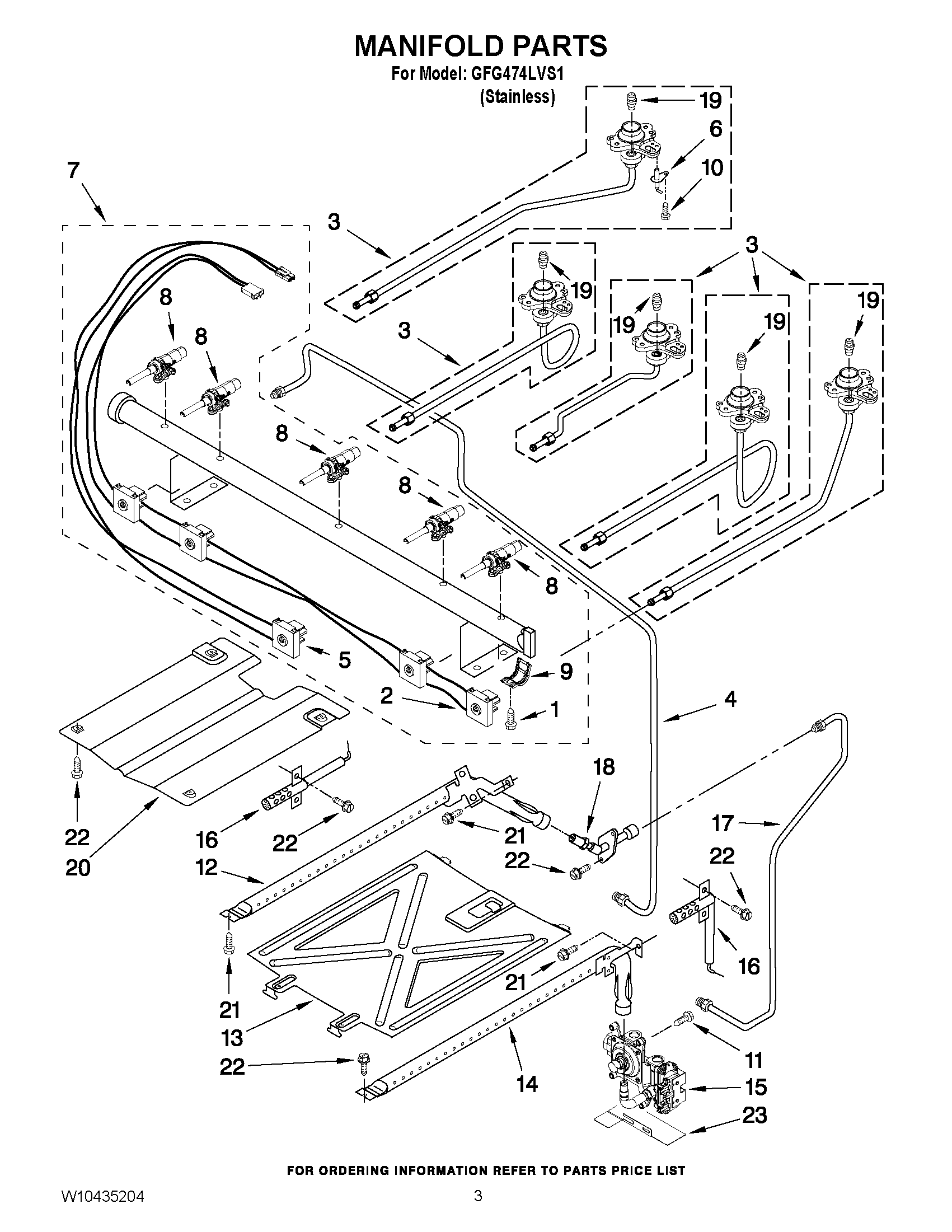

GFG474LVS1 03 – MANIFOLD PARTS

GFG474LVS1 03 – MANIFOLD PARTS

Written by

in

GFG474LVS1 03 – MANIFOLD PARTS

Products

PositionProduct
NISPUDS, LP GAS (KIT OF 5)
1W10295997 Whirlpool Screw
2WPW10295998 Whirlpool Wire Harness
3Tubing, Burner W/Orifice (Right Front)
3HOLDER, ORIFICE ((LF) 15K)
3WPW10157419 Whirlpool Orifice Holder
3TUBING, BURNER W/ORIFICE (LEFT REAR (9.5 K))
3WPW10157415 Whirlpool Orifice Holder
4W11680399 Whirlpool Gas Tubing
5W10303698 Whirlpool Wire Harness
6WPW10216419 Whirlpool Surface Igniter
7W10314239 Whirlpool Manifold Pipe
8WPW10279614 Whirlpool Burner Valve
8WPW10247744 Whirlpool Burner Valve
8WPW10279615 Whirlpool Burner Valve
8W10279613 Whirlpool Burner Valve
9W10949105 Whirlpool Mounting Bracket
10WP8273062 Whirlpool Screw
11WP3400016 Whirlpool Screw Assembly
12WP8054078 Whirlpool Broiler Burner
13WPW10184491 Whirlpool Burner Baffle
14WP9758078 Whirlpool Oven Burner
15WPW10602001 Whirlpool Gas Valve
16WP9758079 Whirlpool Oven Igniter
16WP8054129 Whirlpool Oven Igniter
17W10420040 Whirlpool Gas Tubing
18FITTING, BROILER
19WPW10170508 Whirlpool Orifice Spud
19WPW10170506 Whirlpool Orifice Spud
19WPW10170510 Whirlpool Orifice
19WPW10170507 Whirlpool Orifice
19W10853607 Whirlpool Orifice
20W10137062 Whirlpool Burner Baffle
213196265 Whirlpool Oven Screw
22SCREW
23W10224921 Whirlpool Bracket Mounting
