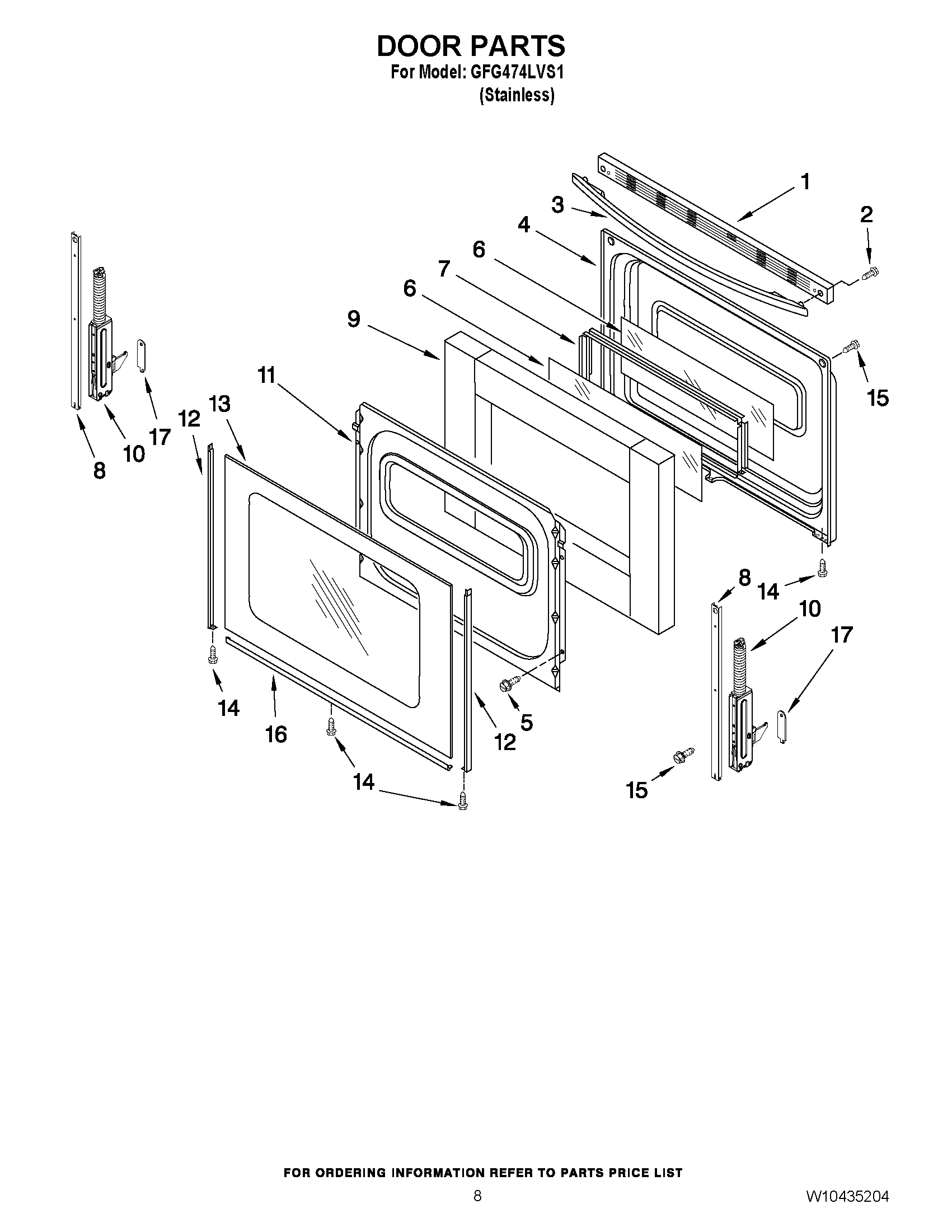

GFG474LVS1 06 – DOOR PARTS

GFG474LVS1 06 – DOOR PARTS

Written by

in

GFG474LVS1 06 – DOOR PARTS

Products

PositionProduct
1TRIM-VENT
2W11396735 Whirlpool Screw
3WPW10144883 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8W11502236 Whirlpool Door Trim
9WPW10278991 Whirlpool Insulation
10WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
10WPW10299227 Whirlpool Range Door Hinge
11W11539580 Whirlpool Retainer
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13WPW10118455 Whirlpool Door Glass Assembly
13WPW10330077 Whirlpool Door Glass
14W10491985 Whirlpool Screw
15W10777162 Whirlpool Screw
169761517 Whirlpool Oven Clip Assembly
17WPW10200660 Whirlpool Range Oven Door Handle Screw
