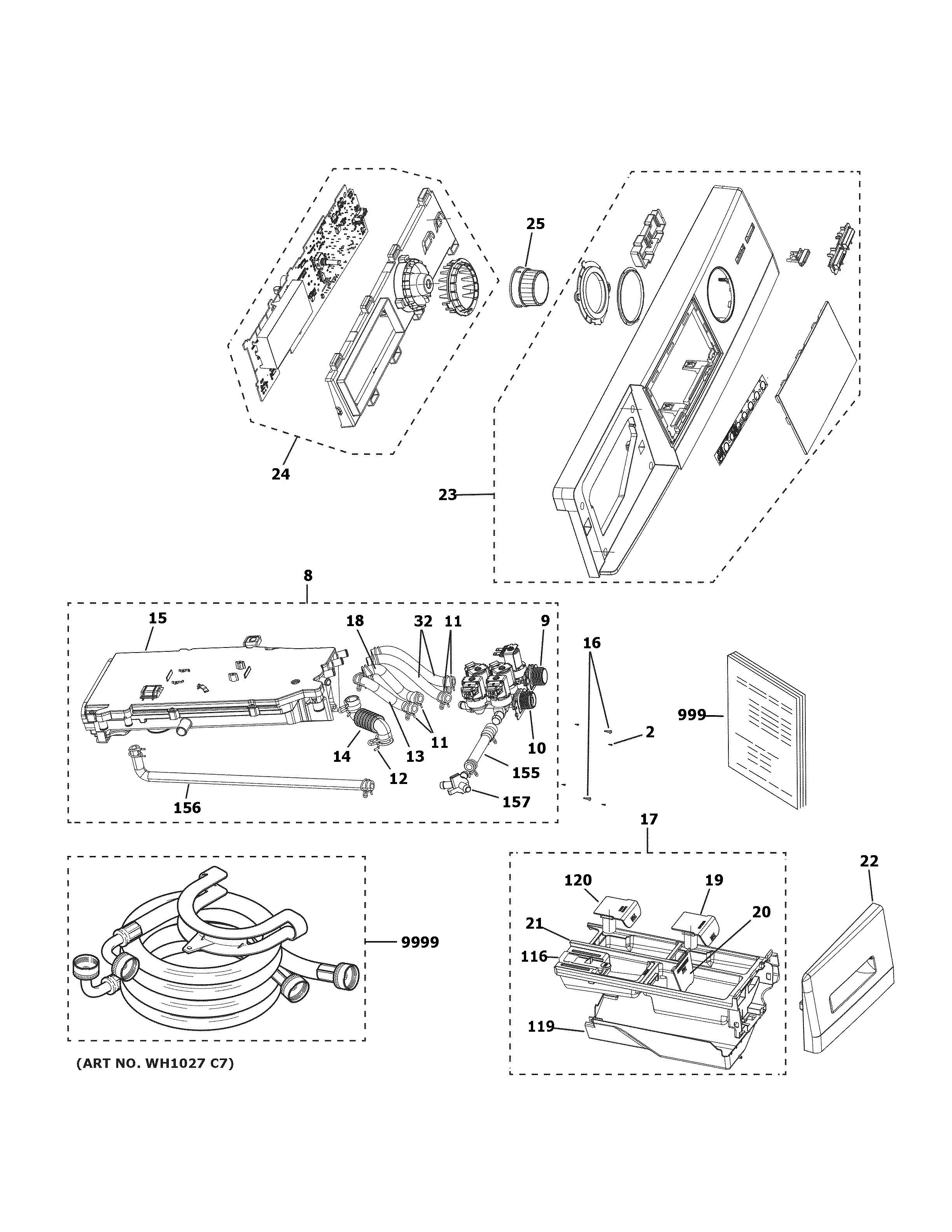

GFQ14ESSN1WW CONTROLS & DISPENSER

Products

Position	Product
2	WH02X26236 GE Screw Assembly
8	DISPENSER HOUSING VALVE & HOSE
9	WH13X28374 GE Hot Water Valve
10	COLD WATER VALVE
11	WH01X26244 GE Clamp Tube
12	WH01X26245 GE Tub Vent Hose Clamp
13	WE41X29923 GE Water Inlet Hose
14	WH41X28340 GE Tub Vent Hose
15	WH42X29949 GE Dispenser Housing
16	WH02X26514 GE Screw ST4X14
17	WH47X28597 GE Dispenser Drawer Handle
18	WH01X28398 GE Water Inlet Hose
19	WH43X28343 GE Softener Siphon Cap
20	WH15X28419 GE Dispense Liquid to Powder Flap
21	WH47X28342 GE Dispenser Drawer
22	WH13X29946 GE Dispenser Drawer Handle
23	WE13X30537 GE Control Panel
24	WE22X29945 GE User Interface Board
25	WH11X26254 GE Cycle Select Knob
32	WE41X29936 GE Soft Tube
116	WH47X28413 GE Drawer Plug
119	WH47X28399 GE Dispenser Gutter Guide
120	WH47X28400 GE Cap Bleach Siphon
155	VALVE TO Y-CONNECTOR HOSE
156	SOFT TUBE
157	Y-SHAPED CONNECTOR
999	PM QUICK OWNERS MANUAL
999	PM OWNERS AND INSTALL
999	PM MINI MANUAL AND WIRING
9999	WH41X33679 GE Inlet Hoses
