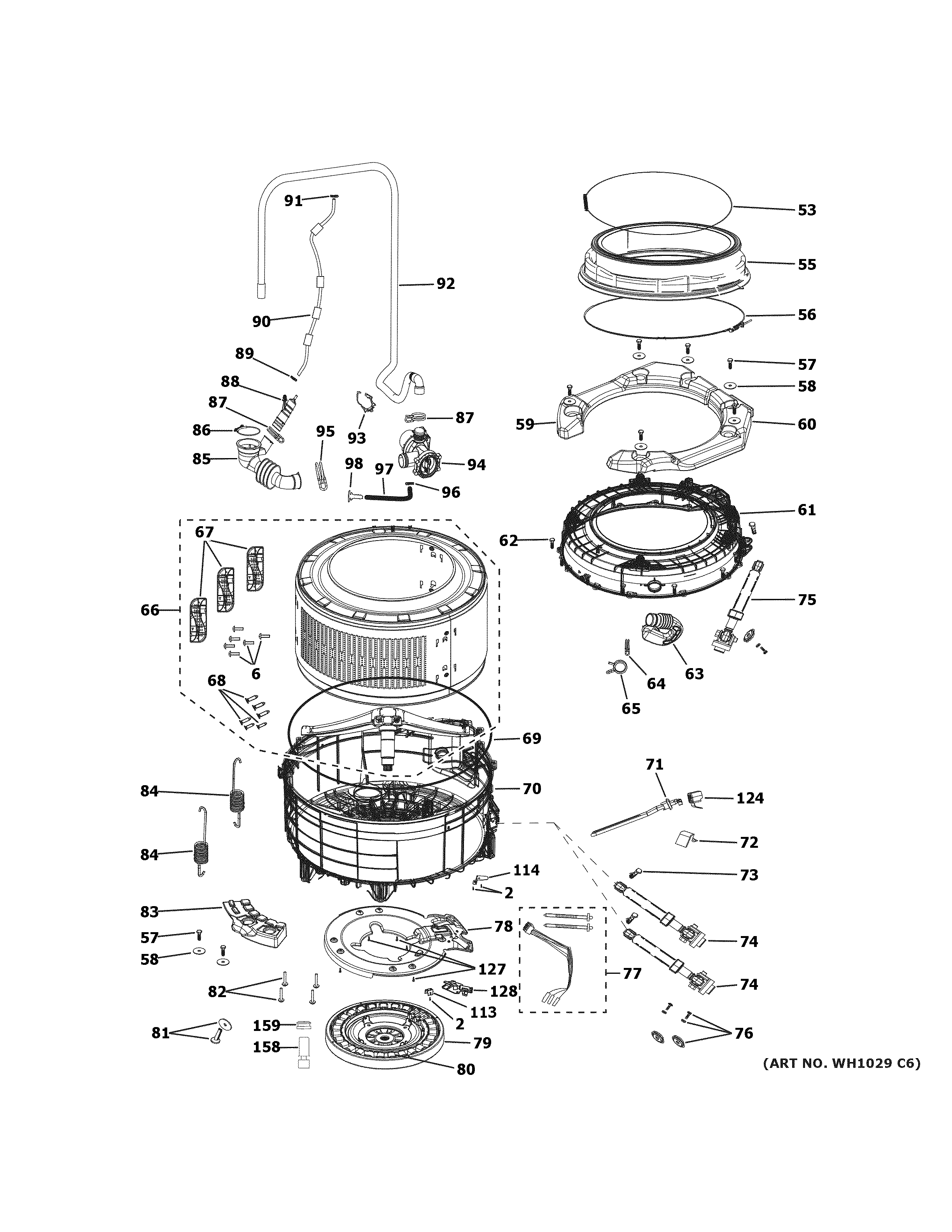

GFQ14ESSN1WW TUB

Products

Position	Product
2	WH02X26236 GE Screw Assembly
6	WH02X26240 GE Screw
53	WH01X28350 GE Outer Gasket Clamp
55	BOOT GASKET
56	WH08X26291 GE Washer Window Cushion
57	WH02X28373 GE Counterweight Bolt
58	WH02X26293 GE Flat Washer Counterweight
59	WH01X28363 GE Right Front Counterweight
60	WH01X28364 GE Front Left Counterweight
61	WH21X29921 GE Tub Front
62	WH02X26297 GE Tub Bolt
63	WH41X28366 GE Tub Fill Hose
64	WH01X26299 GE Tub Fill Hose To Dispenser C
65	WH01X27149 GE Washer Clamp
66	WH45X28351 GE Basket and TRUNION Assembly
67	WH15X28372 GE Baffle
68	SCREW
69	WH08X26304 GE O-Ring
70	WH21X29941 GE Tub Rear
71	WH01X28353 GE Heater
72	WH01X26307 GE Bracket Heating Element
73	WH01X28500 GE Damper Pin
74	WH43X28367 GE Damper Assembly
75	WH16X28408 GE Damper Assembly (120N)
76	WH02X26516 GE Bolt M8x16
77	WH19X28360 GE Motor Harness
78	WH17X28420 GE Stator Plate
79	WH21X26312 GE Rotor
80	WH21X26313 GE Stator
81	WH02X26314 GE Washer and Rotor Bolt
82	WH02X26315 GE Bolt Stator
83	WH01X28365 GE Rear Counterweight
84	WH01X28368 GE Suspension Spring
85	WH41X26318 GE Washing Machine Connector Holder
86	WH01X26319 GE Washer Hose Clip Connector
87	WH01X26320 GE Internal Drain Hose To Air C
88	WH01X26321 GE Washer Air Chamber
89	WH01X26322 GE Hose Clamp Lower Pressure
90	WH41X26323 GE Pressure Sensor Hose
91	WH01X26324 GE Upper Pressure Hose Clamp
92	WH41X26325 GE Washer Drain Hose
93	WH01X26326 GE Washing Machine External Drain Holder
94	WH23X28375 GE Washer Drain Pump
95	WH01X26328 GE Tub to Pump Hose Clamp
96	WH41X26582 GE Water Release Hose Pump
97	WH41X26580 GE Water Release Pump Hose
98	WH23X26581 GE Water Release Pump Plug
113	GROUNDING TERMINAL
114	CONNECTION BRACKET
124	HEATER SHIELD
127	WH02X26515 GE Screw
128	WH17X28352 GE Motor Harness Fixture
158	TEMPERATURE SENSOR
159	WE05X29927 GE Temperature Sensor Gasket
