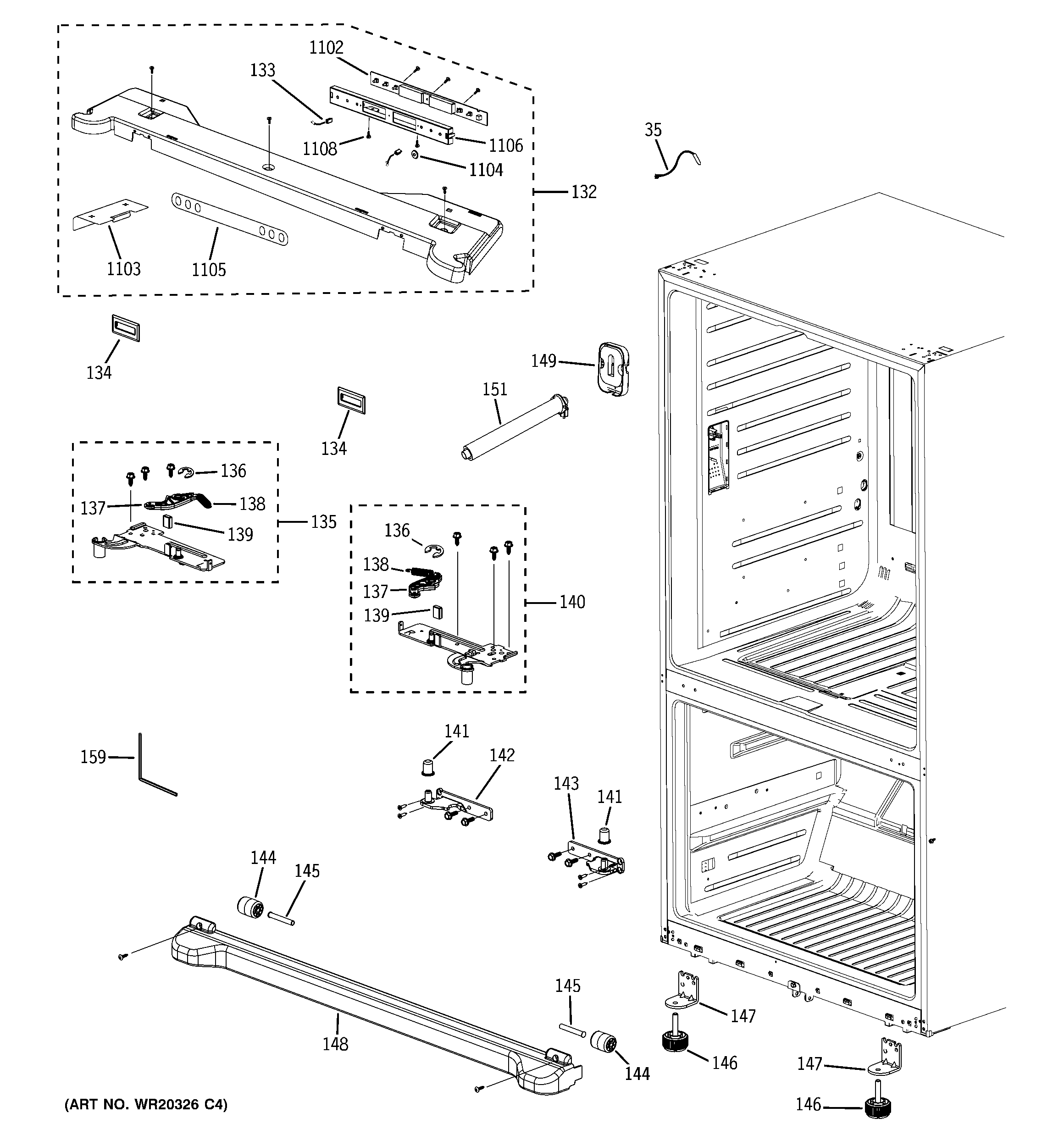

GFSF6KEXEWW CASE PARTS

GFSF6KEXEWW CASE PARTS

Written by

in

GFSF6KEXEWW CASE PARTS

Products

PositionProduct
35SENSOR TEMP
132GEN WR13X10895
132GEN WR13X10894
132GEN WR13X10893
133SWITCH REED ASM
134GEN WR13X10575
134GEN WR13X10576
134CONTROL PANEL CAP
135ASM HINGE UPP-L
135ASM HINGE UPP-L
135ASM HINGE UPP-L
136C – CLIP
137GEN WR02X12673
137GEN WR02X12668
137ASM LEVER AUTO CLOSE
138SPRING AUTO CLOASE
139GROMMET LEVER
140ASM HINGE UPPER RIGHT
140GEN WR13X10547
140ASM HINGE UPPER RIGHT BB
141GROMMET HINGLE MIDDLE
142GEN WR13X10764
143GEN WR13X10765
144FRONT WHEEL
145WHEEL AXLE
146FOOT FRONT
147SUPPORT FOOT FRONT
148COVER-LEG FRONT
148COVER-LEG FRONT
148COVER-LEG FRONT
149WATER CONNECTOR WATER
151ASM WATER LINE
159WRENCH
1102GEN WR55X10988
1103GEN WR13X10901
1104BUTTON-CONTROL
1105INLAY-DISPLAY
1105INLAY-DISPLAY
1105GEN WR55X10814
1106CASE-PBA DISPLAY
1108SCREW,TAPPING
