GFSF6KKYABB CASE PARTS

GFSF6KKYABB CASE PARTS

Written by

in

GFSF6KKYABB CASE PARTS

Products

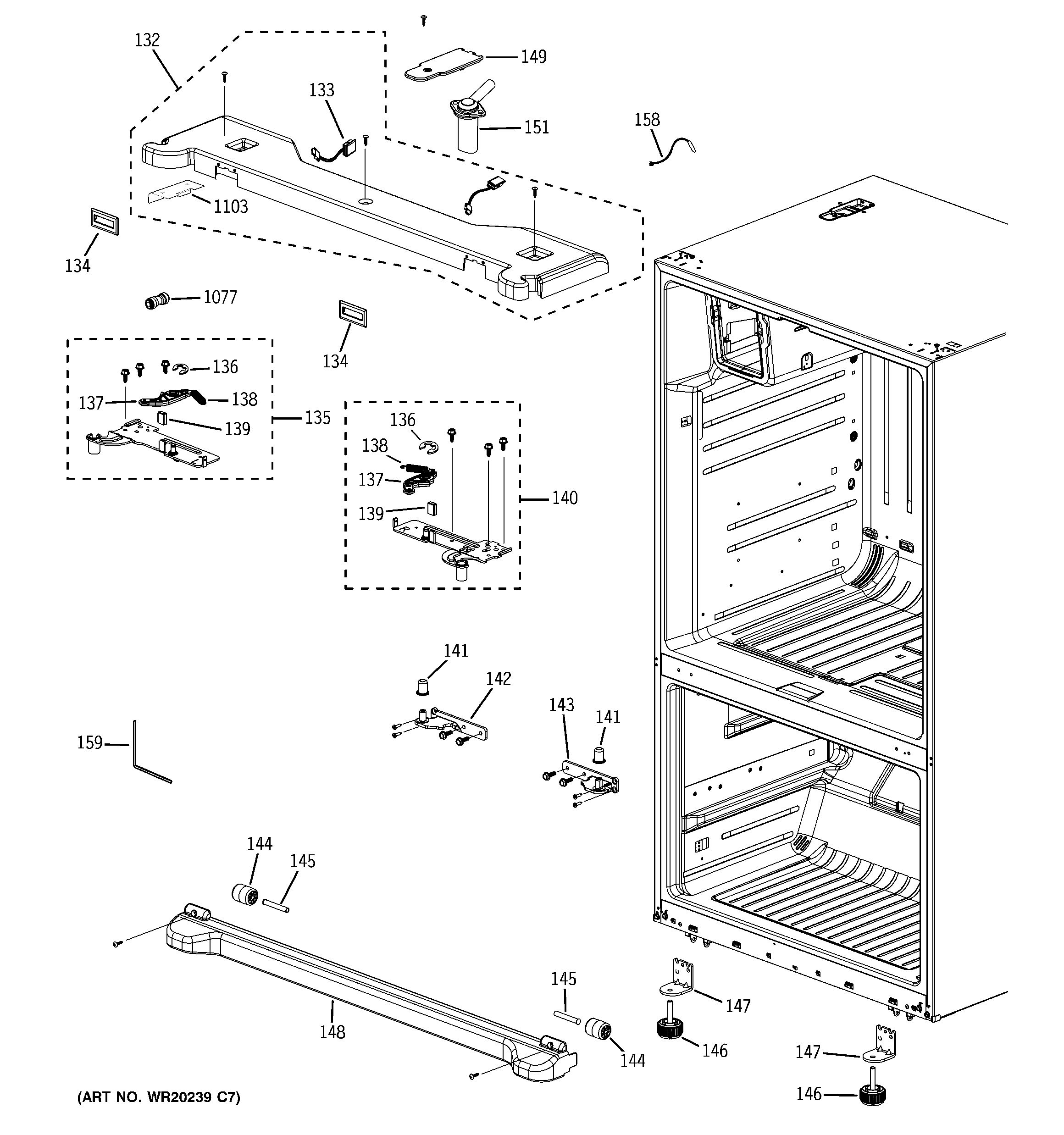

PositionProduct
132ASM CONTROL PANEL COVER
132ASM CONTROL PANEL COVER
133SWITCH REED ASM
134CONTROL PANEL CAP
134GEN WR13X10576
135ASM HINGE UPP LEFT
135ASM HINGE UPP LEFT
136C – CLIP
137GEN WR02X12673
137ASM LEVER AUTO CLOSE
138GEN WR02X12810
139GROMMET LEVER
140ASM HINGE UPPER RIGHT
140ASM HINGE UPPER RIGHT BB
141GROMMET HINGLE MIDDLE
142ASM HINGE MID LEFT
143ASM HINGE MID RIGHT
144FRONT WHEEL
145WHEEL AXLE
146FOOT FRONT
147SUPPORT FOOT FRONT
148GEN WR79X10047
148WR79X10048 GE Kick Plate
149GEN WR02X12749
151GEN WR02X12750
158SENSOR TEMP
159WRENCH
1077VALVE CHECK-FITTING
1103CASE TOP COVER
