GFSL6KEXBLS CASE PARTS

GFSL6KEXBLS CASE PARTS

Written by

in

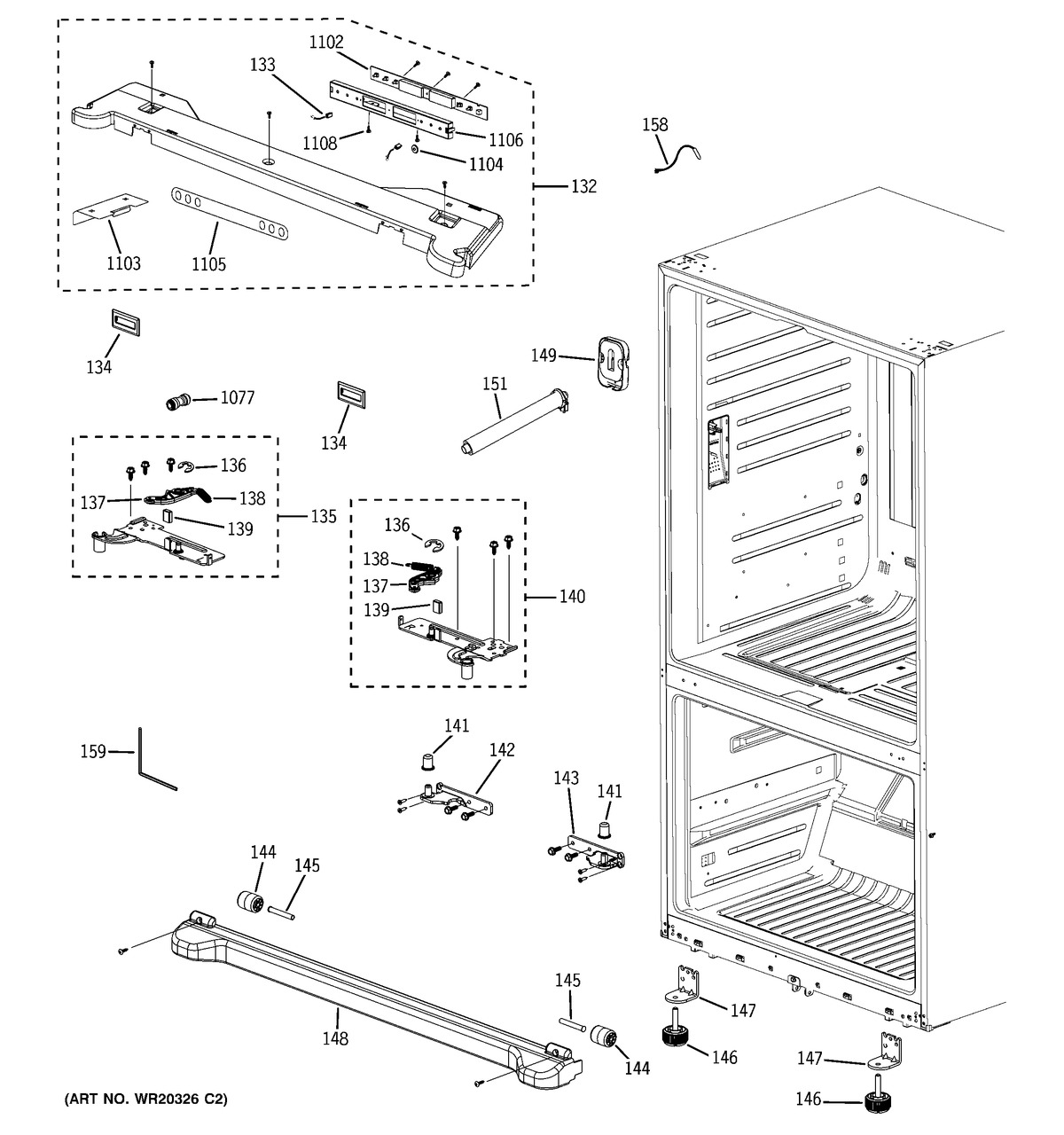

GFSL6KEXBLS CASE PARTS

Products

PositionProduct
132ASM CTRL PANEL COVER
132ASM CTRL PANEL COVER
132GEN WR13X10613
132ASM CTRL PANEL COVER
133SWITCH REED ASM
134CONTROL PANEL CAP
134GEN WR13X10576
134CONTROL PANEL CAP
134GEN WR13X10575
135ASM HINGE UPP-L
135ASM HINGE UPP-L
135ASM HINGE UPP-L
135GEN WR13X10612
136C – CLIP
137ASM LEVER-AUTO CLOSE
137GEN WR02X12673
137GEN WR02X12668
137ASM LEVER AUTO CLOSE
138SPRING AUTO CLOASE
139GROMMET LEVER
140GEN WR13X10547
140ASM HINGE UPP-R
140ASM HINGE UPPER RIGHT
140ASM HINGE UPPER RIGHT BB
141GROMMET HINGLE MIDDLE
142ASM HINGE MID LEFT
143ASM HINGE MID RIGHT
144FRONT WHEEL
145WHEEL AXLE
146FOOT FRONT
147SUPPORT FOOT FRONT
148GEN WR79X10047
148GEN WR79X10046
148WR79X10048 GE Kick Plate
148KICK PLATE
149WATER CONNECTOR WATER
151ASM WATER LINE
158SENSOR TEMP
159WRENCH
1077TUBE CONNECTOR
1102LED LIGHT MAINBOARD
1103CASE TOP COVER
1104BUTTON-CONTROL
1105INLAY-DISPLAY
1105INLAY-DISPLAY
1105GEN WR55X10814
1105INLAY-DISPLAY
1106CASE-PBA DISPLAY
1108SCREW,TAPPING
