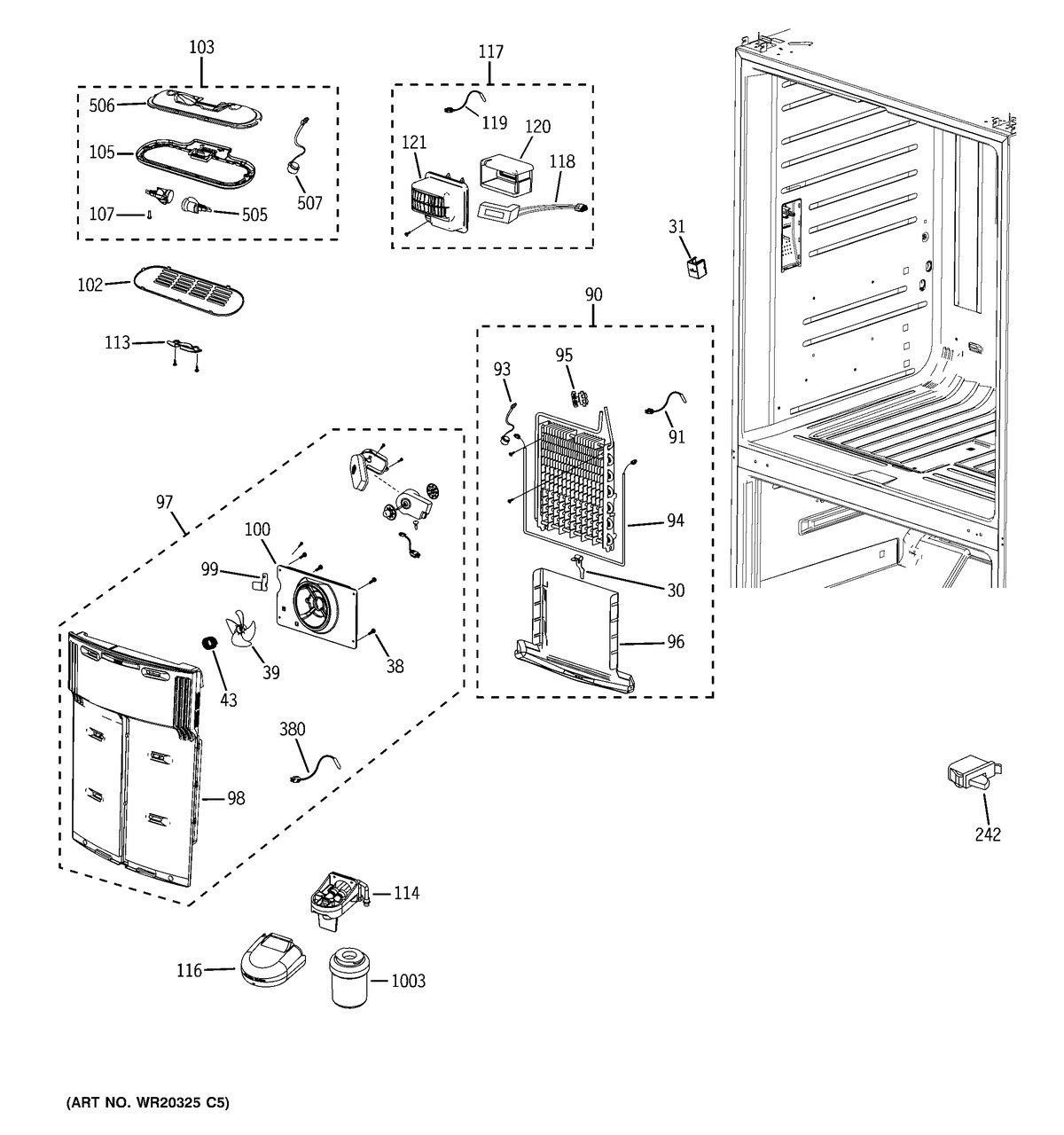

GFSL6KEXCLS FRESH FOOD SECTION

GFSL6KEXCLS FRESH FOOD SECTION

Written by

in

GFSL6KEXCLS FRESH FOOD SECTION

Products

PositionProduct
30HEATER METAL SHEATH
38SCREW TAPPING
39GEN WR60X10309
43RETAINING SPRING FAN
90GEN WR85X10125
91WR23X10582 GE Refrigerator Temperature Sensor Assembly
93BIMETAL
94DEFROST HEATER
95GEN WR02X13254
96GEN WR13X10780
97ASM COVER-EVAP REF
98ASM COVER-EAVP REF SUB
99GEN WR02X13259
100GEN WR13X10784
102COVER-LAMP REF
103ASM CASE LAMP-REF
105CASE-LAMP REF
107SCREW TAPPING
113GEN WR02X13253
114WR17X12512 WATER FILER HEAD
116COVER-WATER FILTER
117WR09X10173 GE Refrigerator Motor Damper Cover Assembly
118WR60X10253 GE Refrigerator Assembly Damper Motor
119SENSOR TEMP PANTRY
120GEN WR02X13263
121GEN WR13X10796
242SWITCH DOOR
380WR50X10058 GE Refrigerator Thermistor
505LAMP HOLER-ASSY
506PLATE-LAMP REF
507BIMETAL
1003MWFP GE Replacement Water Filter Pureline for Refrigerator
