GFSL6KKXBLS FREEZER SHELVES

GFSL6KKXBLS FREEZER SHELVES

Written by

in

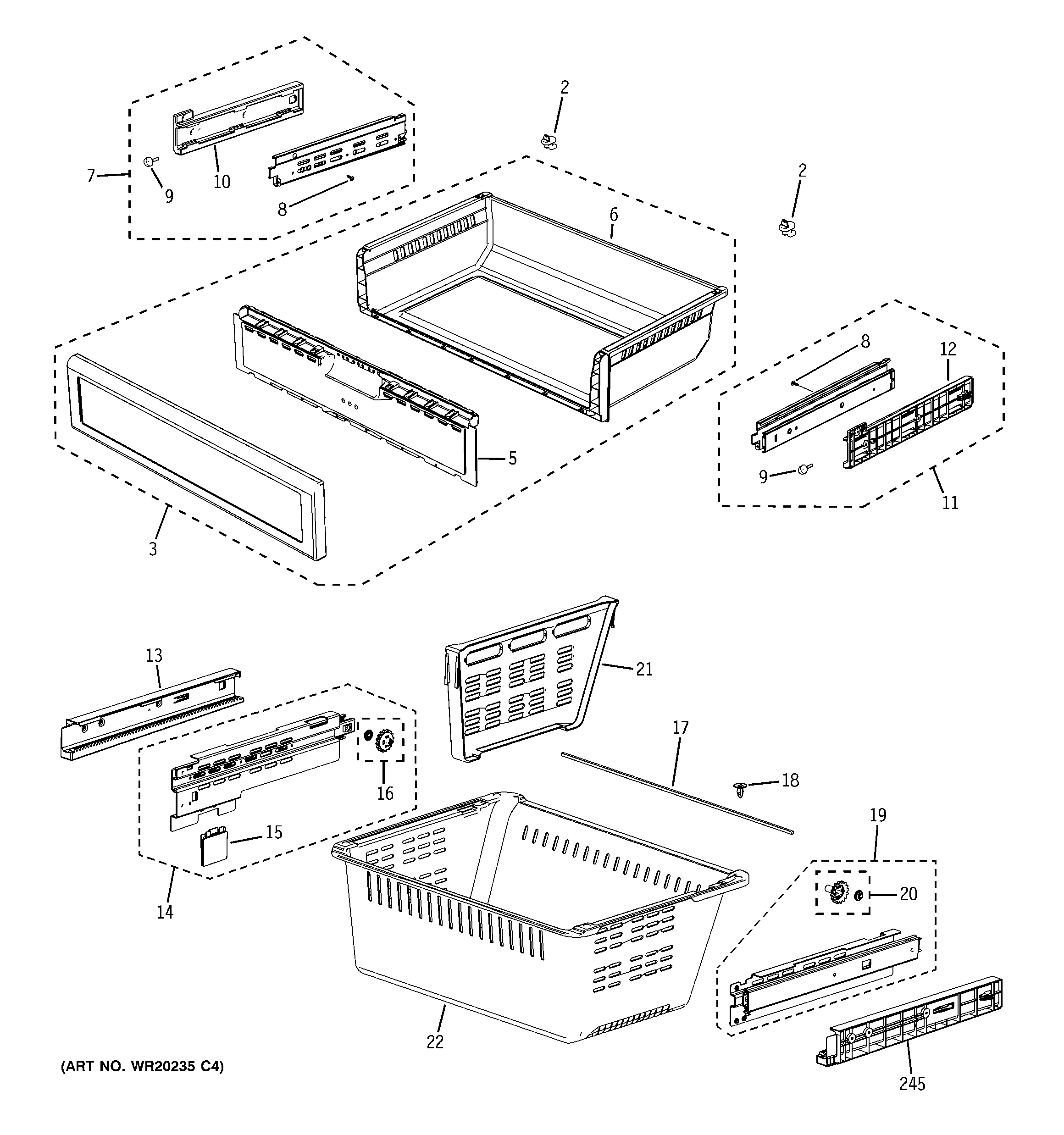

GFSL6KKXBLS FREEZER SHELVES

Products

Position	Product
2	HOLDER TRAY UPP FZ
3	ASM TRAY UPPER
5	INNER COVER TRAY UPP
5	INNER COVER TRAY UPP
6	GEN WR32X10661
7	ASM RAIL SLIDE UPP L
8	SCREW TAPPING
9	GROMMET COVER SLIDE
10	HOLDER RAIL UPP LEFT
11	ASM RAIL SLIDE UPP R
12	HOLDER RAIL UPP RIGHT
13	COVER RAIL LOW L
14	ASM RAIL SLIDE LOW L
15	SWITCH PRESSURE
16	ASM GEAR L
17	SHAFT GEAR
18	CAP DOOR HANDLE
19	ASM RAIL SLIDE LOW R
20	ASM GEAR R
21	BASKET FZ
22	ASM TRAY DRAWER BOX
245	COVER RAIL LOW R
