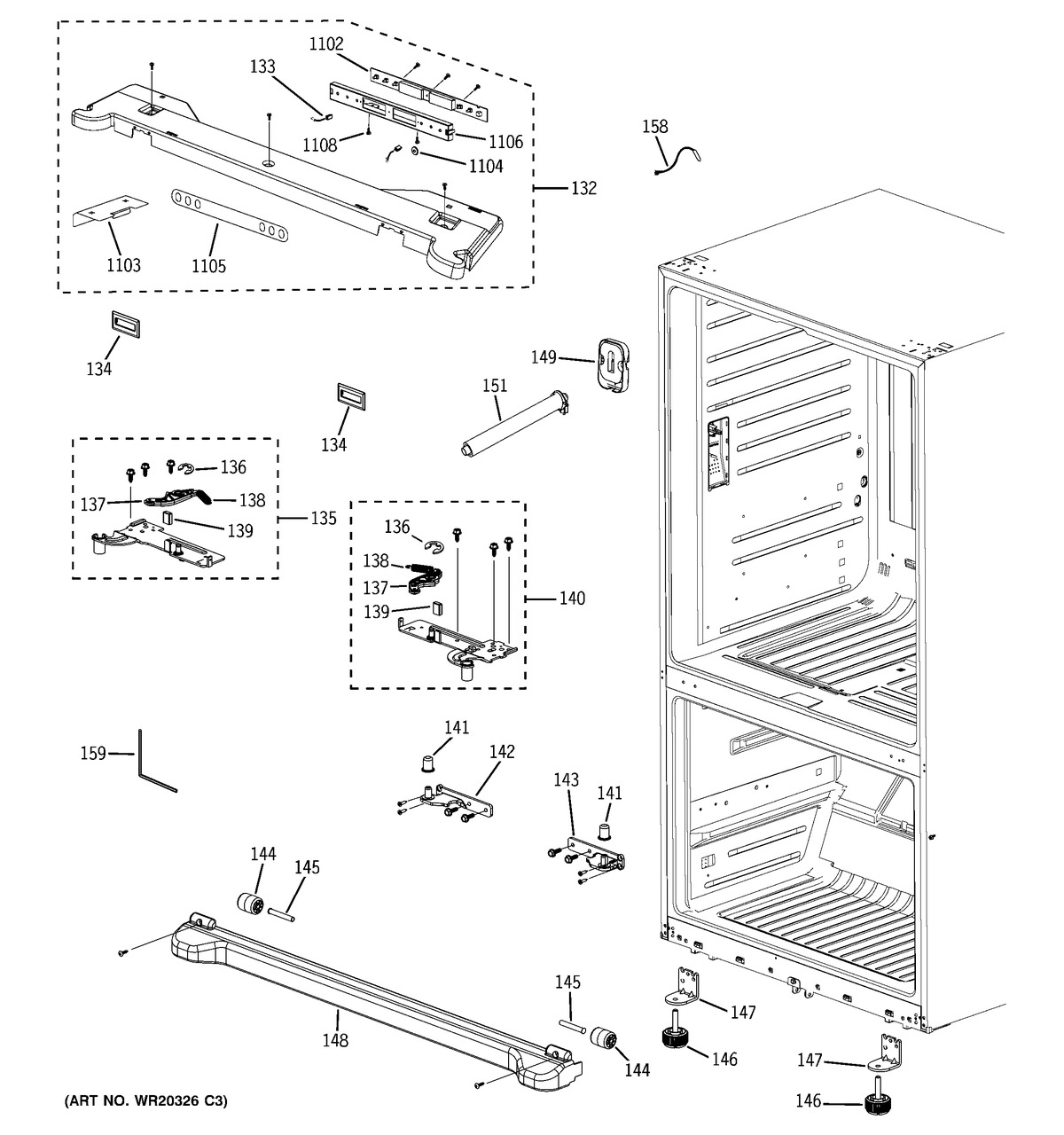

GFSS6KEXCSS CASE PARTS
Products
| Position | Product |
|---|---|
| 132 | GEN WR13X10831 |
| 132 | ASM-TOP TABLE |
| 132 | ASM-TOP TABLE |
| 133 | SWITCH REED ASM |
| 134 | GEN WR13X10816 |
| 134 | GEN WR13X10811 |
| 134 | GEN WR13X10800 |
| 135 | ASM HINGE UPP-L |
| 135 | ASM HINGE UPP-L |
| 135 | GEN WR13X10830 |
| 136 | C - CLIP |
| 137 | GEN WR02X13286 |
| 137 | GEN WR02X13301 |
| 137 | GEN WR02X13297 |
| 138 | SPRING AUTO CLOASE |
| 139 | GROMMET LEVER |
| 140 | GEN WR13X10804 |
| 140 | GEN WR13X10818 |
| 140 | GEN WR13X10813 |
| 141 | GEN WR02X13265 |
| 142 | GEN WR13X10764 |
| 143 | GEN WR13X10765 |
| 144 | FRONT WHEEL |
| 145 | WHEEL AXLE |
| 146 | GEN WR02X13252 |
| 147 | SUPPORT FOOT FRONT |
| 148 | GEN WR79X10054 |
| 148 | COVER-LEG FRONT |
| 148 | WR79X10048 GE Kick Plate |
| 149 | ASM-COVER PIPE WATER |
| 151 | ASM WATER LINE |
| 158 | SENSOR TEMP |
| 159 | WRENCH |
| 1102 | GEN WR55X10988 |
| 1103 | PLATE-TOP TABLE |
| 1104 | BUTTON-CONTROL |
| 1105 | INLAY-DISPLAY |
| 1105 | INLAY-DISPLAY |
| 1105 | GEN WR55X10814 |
| 1106 | CASE-PBA DISPLAY |
| 1108 | SCREW,TAPPING |
