GFSS6KEXESS CASE PARTS – Aparts

GFSS6KEXESS CASE PARTS

Products

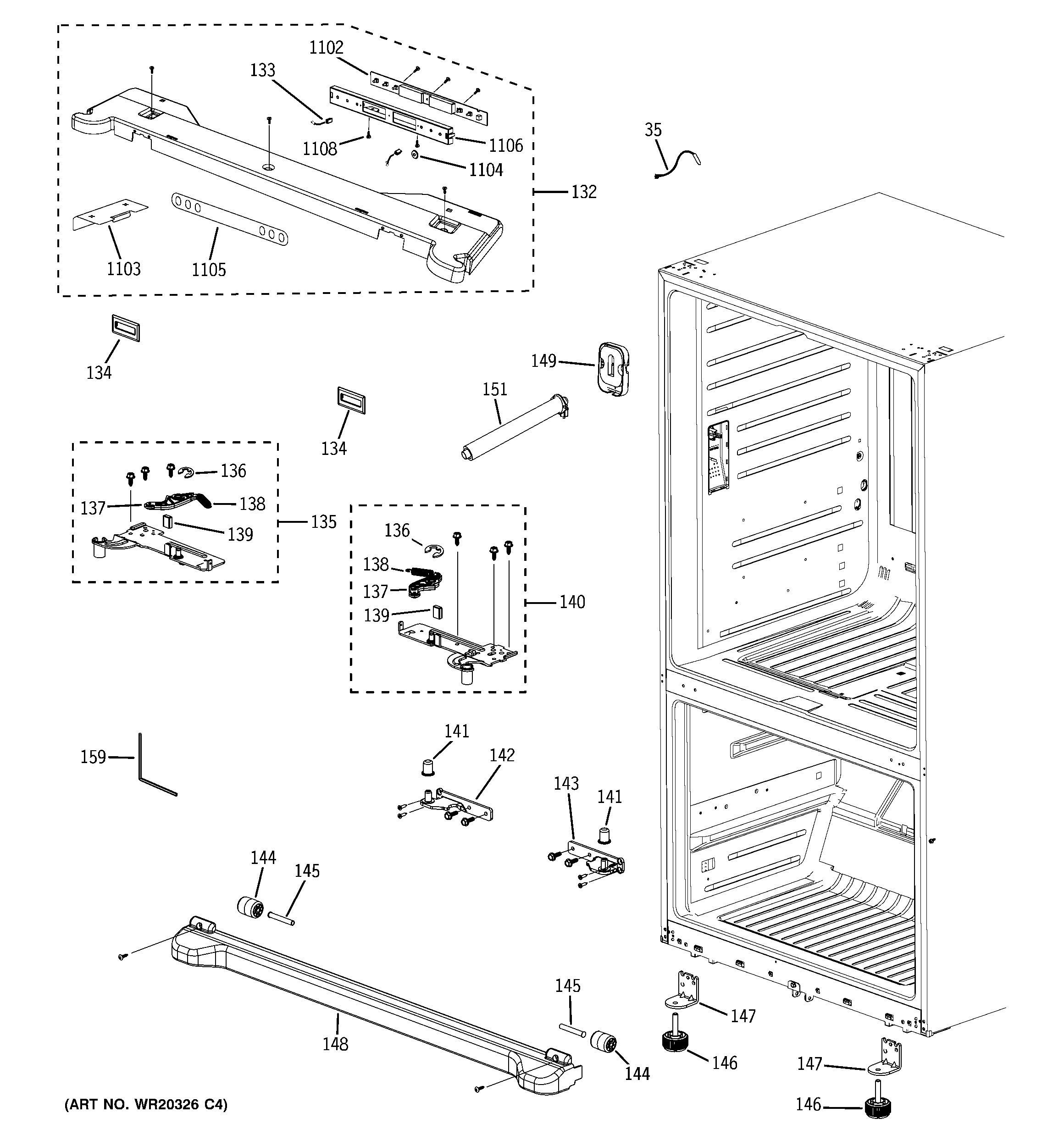

Position	Product
35	SENSOR TEMP
132	GEN WR13X10895
132	GEN WR13X10894
132	GEN WR13X10893
133	SWITCH REED ASM
134	GEN WR13X10575
134	GEN WR13X10576
134	CONTROL PANEL CAP
135	ASM HINGE UPP-L
135	ASM HINGE UPP-L
135	ASM HINGE UPP-L
136	C - CLIP
137	GEN WR02X12673
137	GEN WR02X12668
137	ASM LEVER AUTO CLOSE
138	SPRING AUTO CLOASE
139	GROMMET LEVER
140	ASM HINGE UPPER RIGHT
140	GEN WR13X10547
140	ASM HINGE UPPER RIGHT BB
141	GROMMET HINGLE MIDDLE
142	GEN WR13X10764
143	GEN WR13X10765
144	FRONT WHEEL
145	WHEEL AXLE
146	FOOT FRONT
147	SUPPORT FOOT FRONT
148	COVER-LEG FRONT
148	COVER-LEG FRONT
148	COVER-LEG FRONT
149	WATER CONNECTOR WATER
151	ASM WATER LINE
159	WRENCH
1102	GEN WR55X10988
1103	GEN WR13X10901
1104	BUTTON-CONTROL
1105	INLAY-DISPLAY
1105	INLAY-DISPLAY
1105	GEN WR55X10814
1106	CASE-PBA DISPLAY
1108	SCREW,TAPPING
