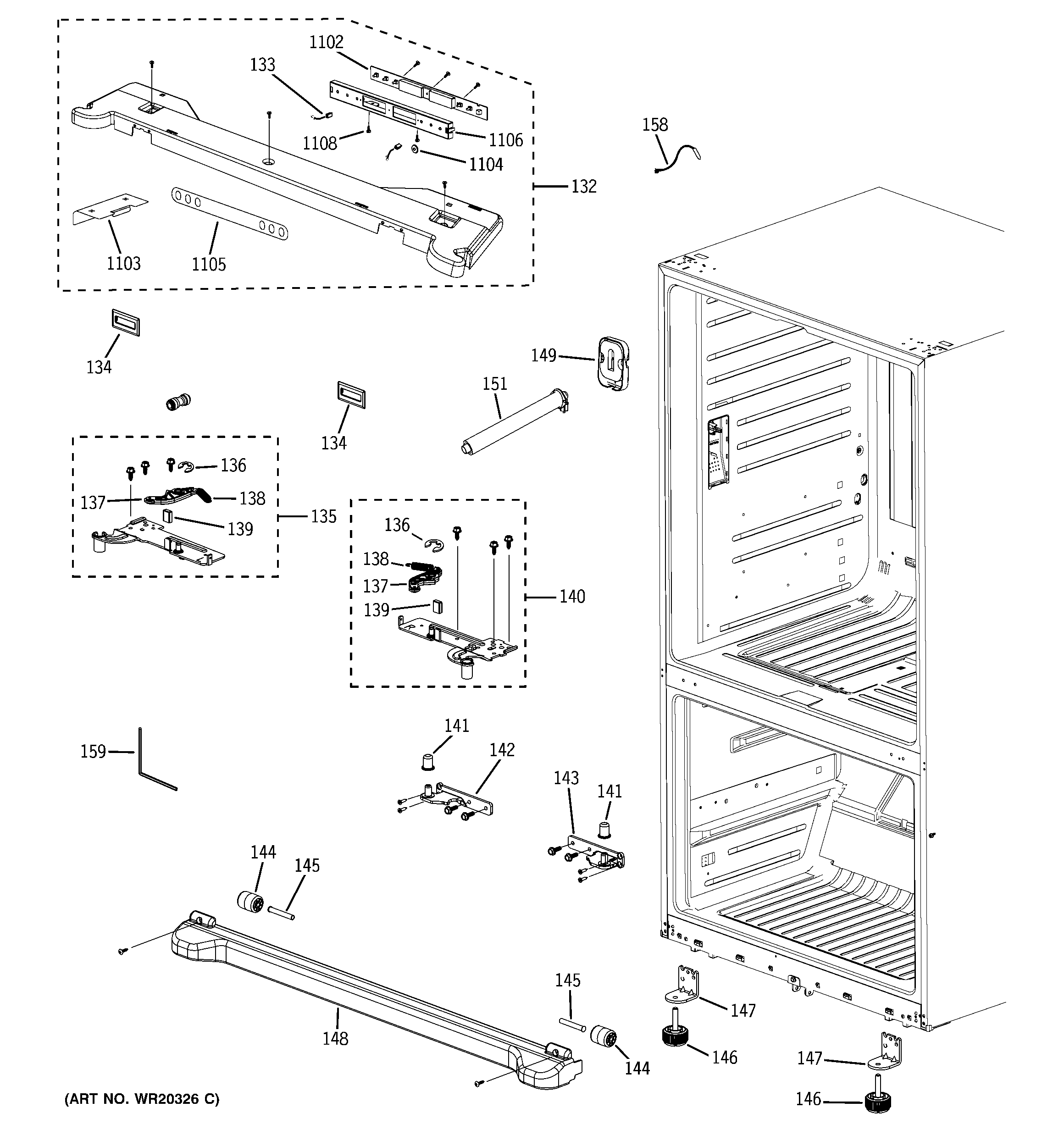

GFSS6KIXBSS CASE PARTS
Products
| Position | Product |
|---|---|
| 132 | GEN WR13X10613 |
| 133 | SWITCH REED ASM |
| 134 | GEN WR13X10575 |
| 135 | GEN WR13X10612 |
| 136 | C - CLIP |
| 137 | GEN WR02X12668 |
| 138 | SPRING AUTO CLOASE |
| 139 | GROMMET LEVER |
| 140 | GEN WR13X10547 |
| 141 | GROMMET HINGLE MIDDLE |
| 142 | ASM HINGE MID LEFT |
| 143 | ASM HINGE MID RIGHT |
| 144 | FRONT WHEEL |
| 145 | WHEEL AXLE |
| 146 | FOOT FRONT |
| 147 | SUPPORT FOOT FRONT |
| 148 | GEN WR79X10046 |
| 149 | WATER CONNECTOR WATER |
| 151 | ASM WATER LINE |
| 158 | SENSOR TEMP |
| 159 | WRENCH |
| 1102 | LED LIGHT MAINBOARD |
| 1103 | CASE TOP COVER |
| 1104 | BUTTON-CONTROL |
| 1105 | GEN WR55X10814 |
| 1106 | CASE-PBA DISPLAY |
| 1108 | SCREW,TAPPING |
