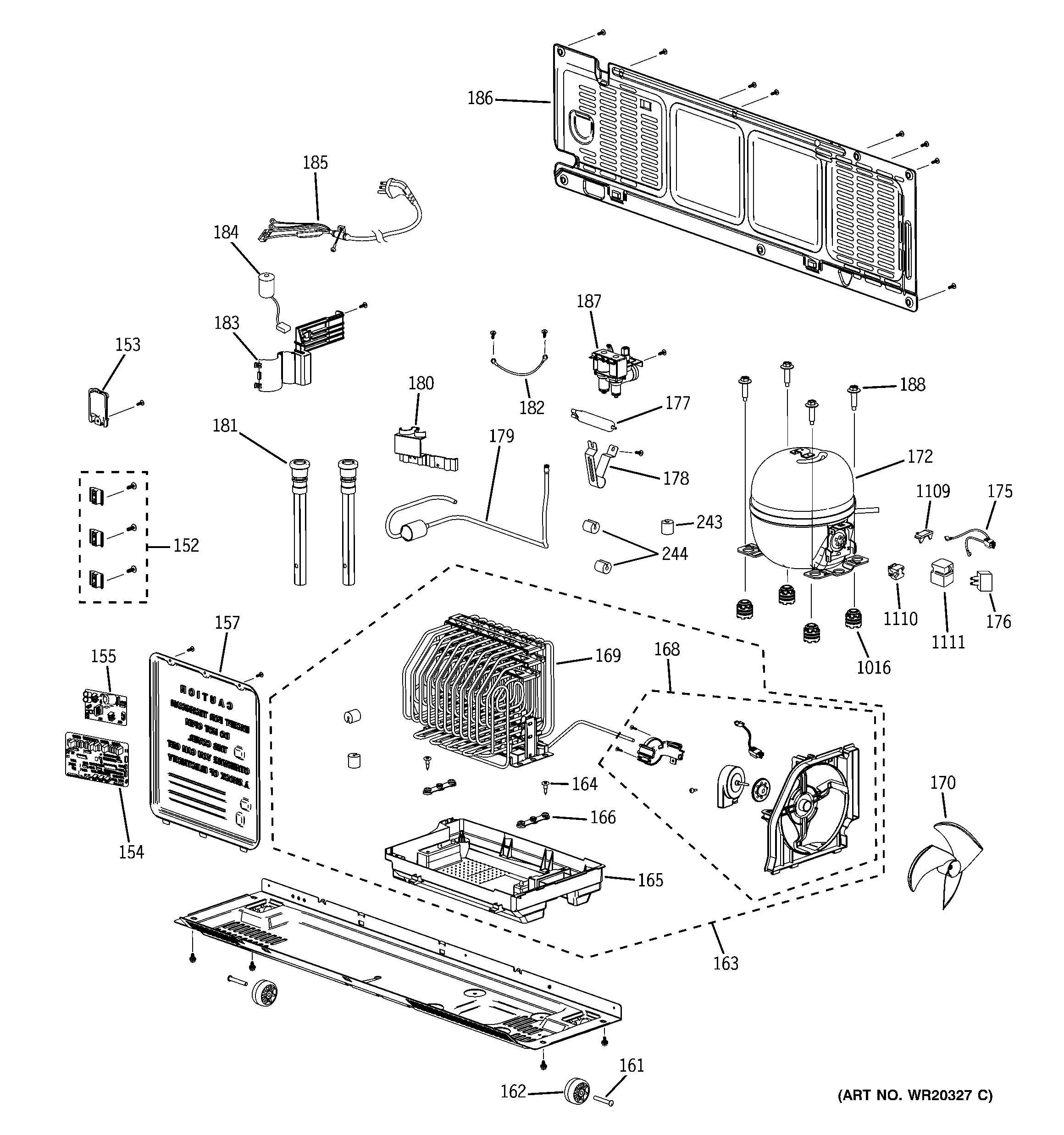

GFSS6KKXASS MACHINE COMPARTMENTadmin2025-04-26T08:41:56+00:00GFSS6KKXASS MACHINE COMPARTMENT ProductsPositionProduct152WATER LINE HOLDER153WATER LINE COVER154MAIN CIRCUIT BOARD155POWER SUPPLY BOARD157ASM MAIN BOARD COVER161WHEEL AXLE162REAR WHEEL163WR13X10741 GE Refrigerator Assembly Tray-Drain Water164SCREW SPECIAL165TRAY DRAIN WATER166GROMMET CONDENSER168ASM CONDENSER FAN169CONDENSER170CONDENSER FAN BLADE172WR87X10185 GE Refrigerator Compressor175ASSY-HARNESS COMP176OVERLOAD177DRYER178CLIP DRYER179COMP SUCTION LINE180WR02X12609 GE Refrigerator Suction Line Clamp181WR02X12751 GE Refrigerator Drain Line Assembly182WIRE HARNESS GROUND183COVER NOISE FILTER184EMI NOISE FILTER185POWER CORD186MACHINE TOP CPVER186MACHINE COMP COVER187WR57X10082 GE Refrigerator Water Valve188BOLT COMPRESSOR243GROMMET-SUCT PIPE A244GROMMET-SUCT PIPE B1016GROMMET-COMP1109WR07X10112 GE Refrigerator PTC Relay Assembly1110OLP1111COVER RELAY
