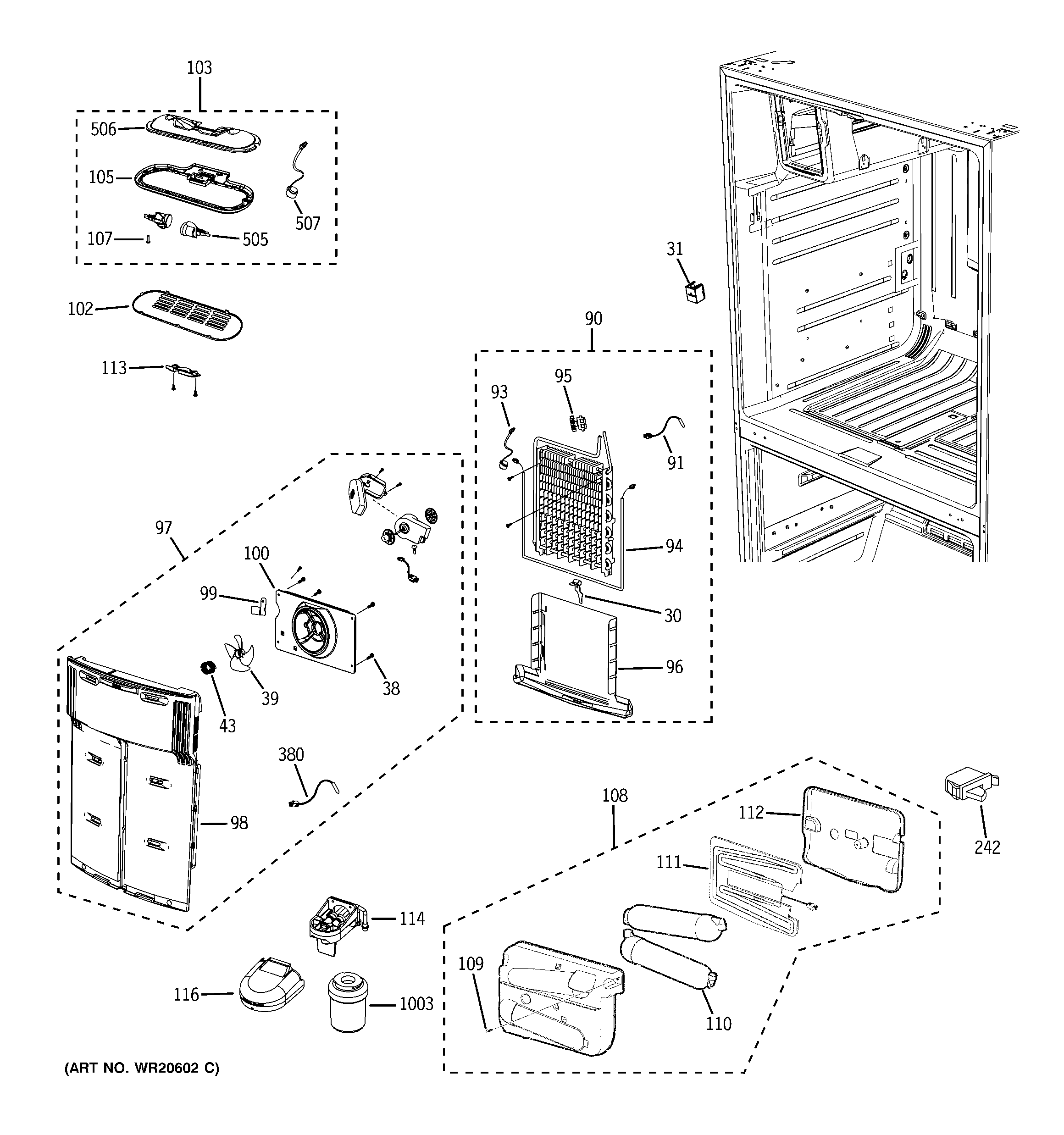

GFSS6KKXBSS FRESH FOOD SECTION

GFSS6KKXBSS FRESH FOOD SECTION

Written by

in

GFSS6KKXBSS FRESH FOOD SECTION

Products

PositionProduct
30HEATER METAL SHEATH
31HOUSING COVER HOLDER
38SCREW TAPPING
39EVAP FAN BLADE
43RETAINING SPRING FAN
90ASM EVAPORATOR FF
91WR23X10582 GE Refrigerator Temperature Sensor Assembly
93BIMETAL
94DEFROST HEATER
95SENSOR CLAMP
96DRAIN TRAY EVAP
97WR60X10272 GE Refrigerator Evaporator Cover Assembly
98ASM COVER-EAVP REF SUB
99EVAP HOSUING CLIP
100EVAP MOTOR HOSUING
102LIGHT COVER
103ASM LIGHT FF
105LIGHT HOLDER
107SCREW TAPPING
108GEN WR17X12739
109GEN WR13X10733
110WR17X12741 GE Refrigerator Water Tank Assembly
111GEN WR51X10117
112GEN WR51X10118
113DOOR GUIDE
114WR17X12512 WATER FILER HEAD
116COVER-WATER FILTER
242SWITCH DOOR
380WR50X10058 GE Refrigerator Thermistor
505LAMP HOLER-ASSY
506PLATE-LAMP REF
507BIMETAL
1003MWFP GE Replacement Water Filter Pureline for Refrigerator
