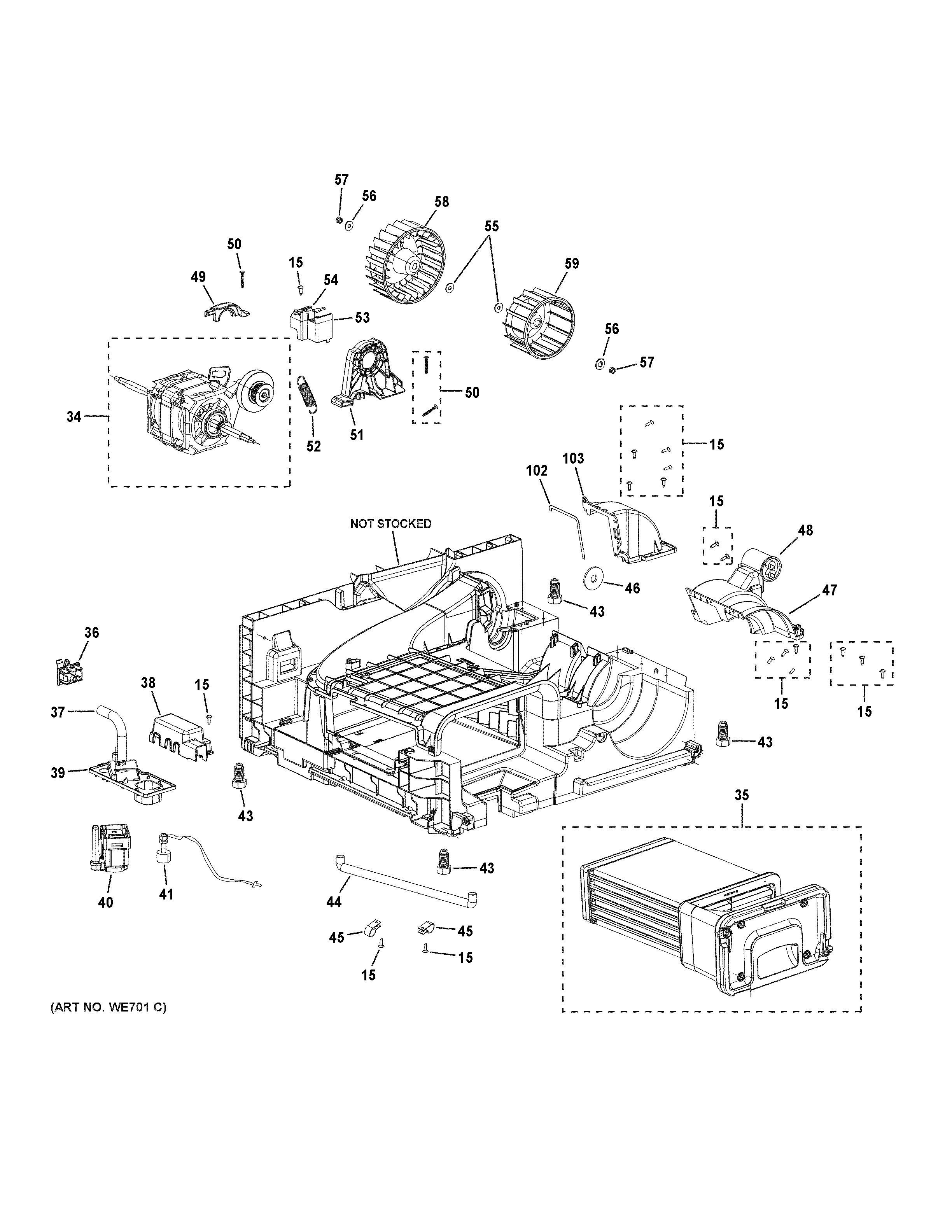

GFT14ESSL0WW BLOWER, MOTOR & CONDENSER ASSEMBLY

Products

Position	Product
15	TAPPING SCREW
34	WE17X26577 GE Motor Assembly
35	WE01X26382 GE Condenser Assembly
36	WE01X26375 GE External Drain Hose Connector
37	WE01X26376 GE Drain Hose Internal
38	PUMP COVER
39	WE13X26377 GE Plastic Pump Bracket
40	WE01X26378 GE Drain Pump
41	WE01X26379 GE Float Switch
43	WE02X26373 GE Leveling Leg
44	WE01X26381 GE Overflow Tube
45	OVER FLOW TUBE STRAP
46	MOTOR SHAFT FELT
47	CONDENSER BLOWWER WHEEL COVER
48	WE01X26354 GE Capacitor
49	REAR MOTOR SUPPORT
50	WE02X26358 GE Motor Bolts
51	FRONT MOTOR SUPPORT
52	MOTOR TENSION SPRING
53	WE02X26356 GE Belt Switch Mounting Bracket
54	WE12X26355 GE Belt Switch
55	WE02X26368 GE Washer Outer Flat Washer
56	WE02X26367 GE Washer Inner Flat
57	WE02X26366 GE Fan Nut
58	WE11X26363 GE Heater Blower Wheel
59	WE16X26371 GE Condenser Blower Wheel
102	BLOWER COVER FOAM GASKET
103	WE16X26361 GE Heater Blower Wheel Cover
