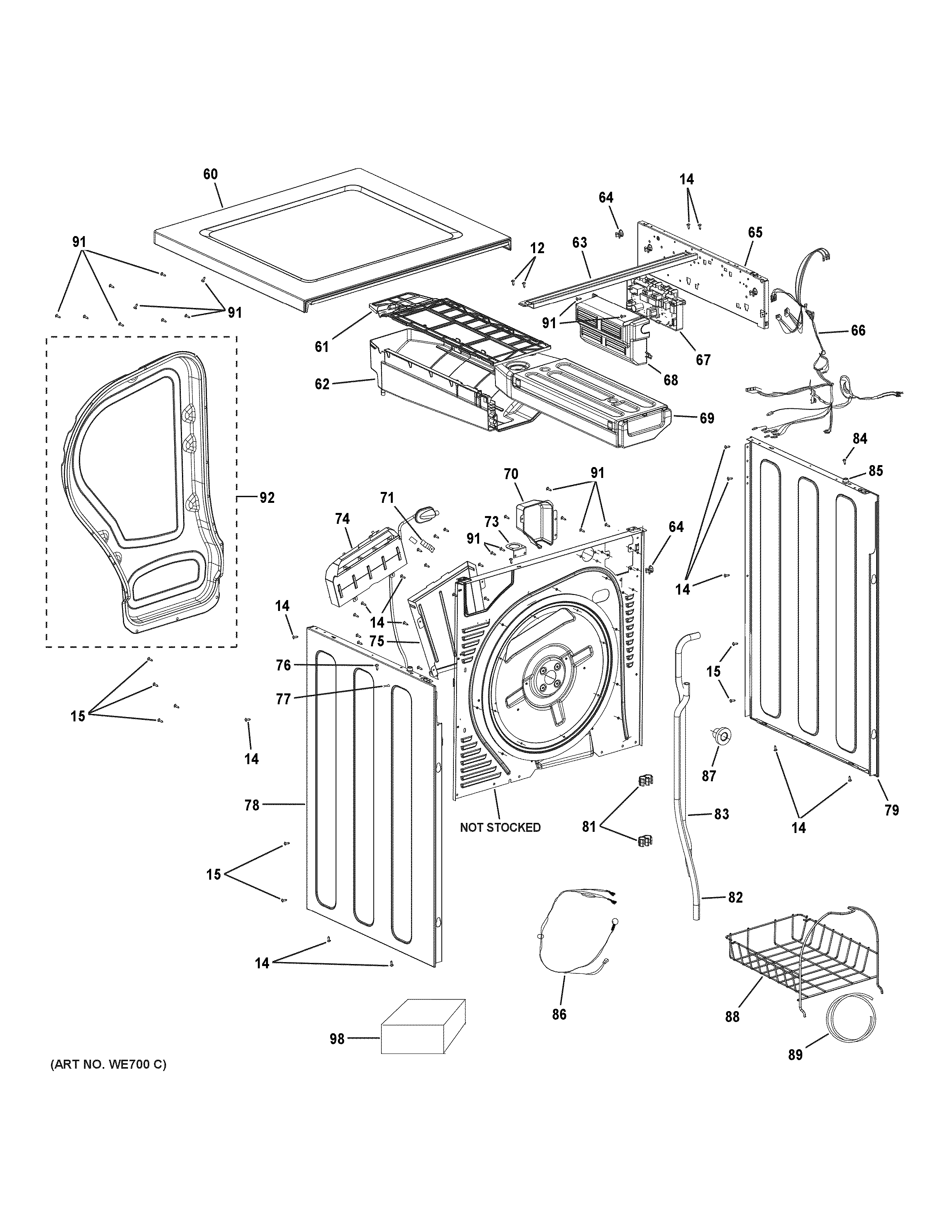

GFT14ESSL0WW CABINET & TOP PANEL

GFT14ESSL0WW CABINET & TOP PANEL

Written by

in

GFT14ESSL0WW CABINET & TOP PANEL

Products

PositionProduct
12WE02X26338 GE Front Panel Screws
14WH02X26267 GE Screw
15TAPPING SCREW
60WH44X26235 GE Top Cover
61WE01X26397 GE Dryer Top Condenser Tank Housing
62CONDENSER TANK HOUSING BOTTOM
63TOP BRACKET
64WIRE TIES
65BRAKET (TOP RIGHT)
66HARNESS MAIN
67WE04X26392 GE Control Board
68CONTROL BOARD COVER
69WE11X26405 GE Dryer Tank
70WE01X26404 GE Terminal Block Cover
71DRUM GROUND STRAP
73WE01X26403 GE Power Cord Conduit Bracket
74WE11X26400 GE Heater Assembly
75AIR DUCT PANEL (REAR)
76SCREW
77STEAL CLIP
78WE20X26414 GE Left Panel
79WE20X26407 GE Right Panel
81CLIP
82WE01X26410 GE Washer Condenser Housing Drain Tube
83CONDENSER TANK OVERFLOW TUBE
84WH02X26265 GE Top Panel Guide Pin Screw
85WH01X26264 GE Top Panel Guide Pin
86WE01X26415 GE Humidity Sensor and Harness
87REAR BEARING
88WE01X26416 GE Rack Assembly
89WE01X26417 GE External Drain Tube
91WH02X26236 GE Screw Assembly
92BACK PANEL COVER ASM
98GFA24KITL GE 24" Front Load Stacking Kit
