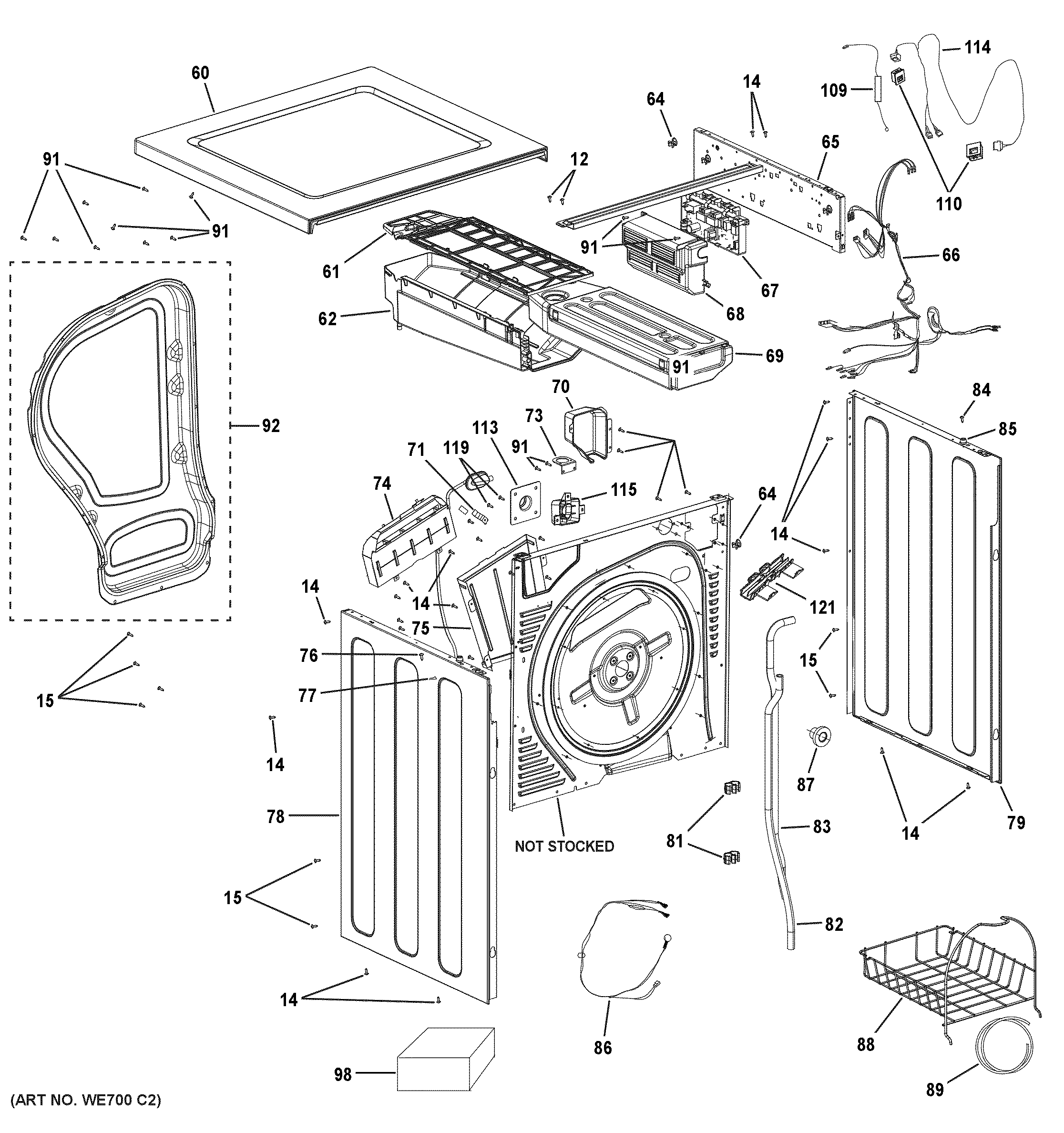

GFT14ESSM0WW CABINET & TOP PANEL

Products

PositionProduct
12WE02X26338 GE Front Panel Screws
14WH02X26267 GE Screw
15TAPPING SCREW
60WE20X28777 GE Top Cover White
61WE01X26397 GE Dryer Top Condenser Tank Housing
62CONDENSER TANK HOUSING BOTTOM
64WIRE TIES
65BRAKET (TOP RIGHT)
66WE15X27514 GE Main Harness
67WE04X27515 GE Control Board
68WE01X27516 GE Control Board Cover
69WE11X26405 GE Dryer Tank
70WE01X26404 GE Terminal Block Cover
71WE01X28416 GE Drum Ground Strap
73WE01X26403 GE Power Cord Conduit Bracket
74WE11X27519 GE Heater Assembly
75AIR DUCT PANEL (REAR)
76SCREW
77STEAL CLIP
78WE20X26414 GE Left Panel
79WE20X26407 GE Right Panel
81CLIP
82WE01X28518 GE Condenser Drain Tube Housing
83WE01X28519 GE Condenser Overflow Tank Tube
84WH02X26265 GE Top Panel Guide Pin Screw
85WH01X26264 GE Top Panel Guide Pin
86WE01X26415 GE Humidity Sensor and Harness
87WE03X27520 GE Rear Bearing
88WE01X26416 GE Rack Assembly
89WE01X28586 GE External Drain Tube
91WH02X26236 GE Screw Assembly
92BACK PANEL COVER ASM
98GFA24KITL GE 24" Front Load Stacking Kit
109WE01X27782 GE Dryer Fuse
110RJ45 CONNECTOR
113WE21X27518 GE Rear Drum Bearing Support
114WH19X28477 GE RJ45 Harness
115OUTLET COVER
119POWER BOARD MOUNTING SCREWS
121WE08X28521 GE Fuse Harness Holder
