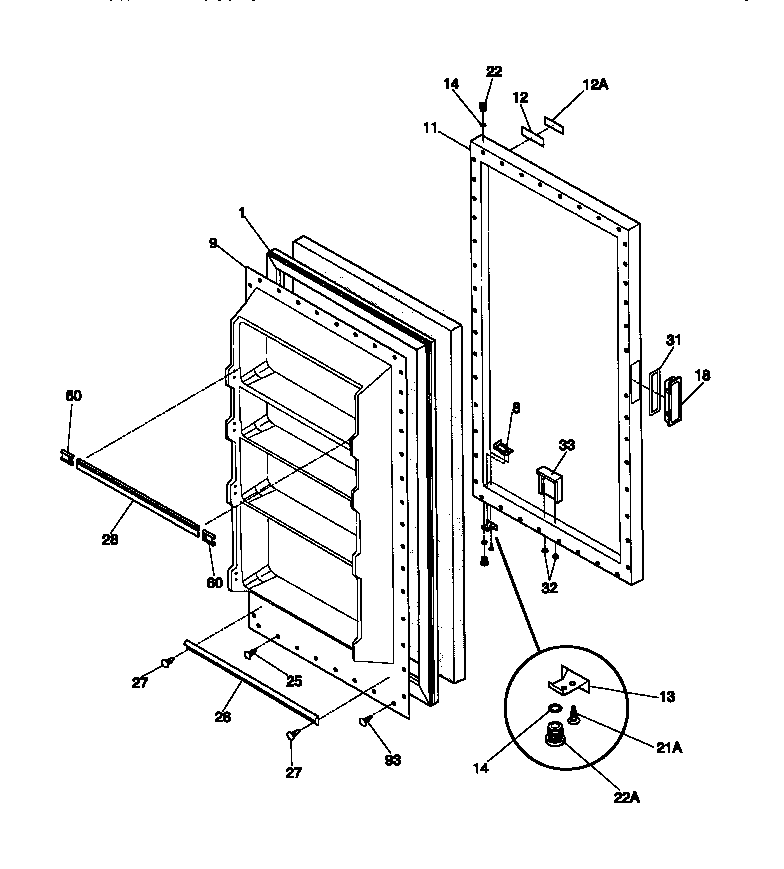

GFU09M2AW4 02 – DOOR

GFU09M2AW4 02 – DOOR

Written by

in

GFU09M2AW4 02 – DOOR

Products

PositionProduct
*65840INSULATION
1WCI 3206236
8WCI 5300091170
9PANEL-INNER DOOR, WHITE
11PANEL-OUTER DOOR, WHITE
12BEZEL, NAMEPLATE
12INSERT-BEZEL
13DOOR STOP
14WCI 5303313518
18WCI 216140200
21Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
22297006800 Frigidaire Refrigerator Bearing Hinge
22WCI 5303925197
25WCI 216022800
26WCI 08009385
275303212828 Frigidaire Refrigerator Primary Clip
28RACK-SHELF, NARROW, WHITE
31GASKET, WHITE
32Valve,breather ,door base
33WCI 5303212700
60WCI 5303298264
93216858001 Frigidaire Refrigerator Screw
