GFU14F3AW2 07 – SYSTEM

GFU14F3AW2 07 – SYSTEM

Written by

in

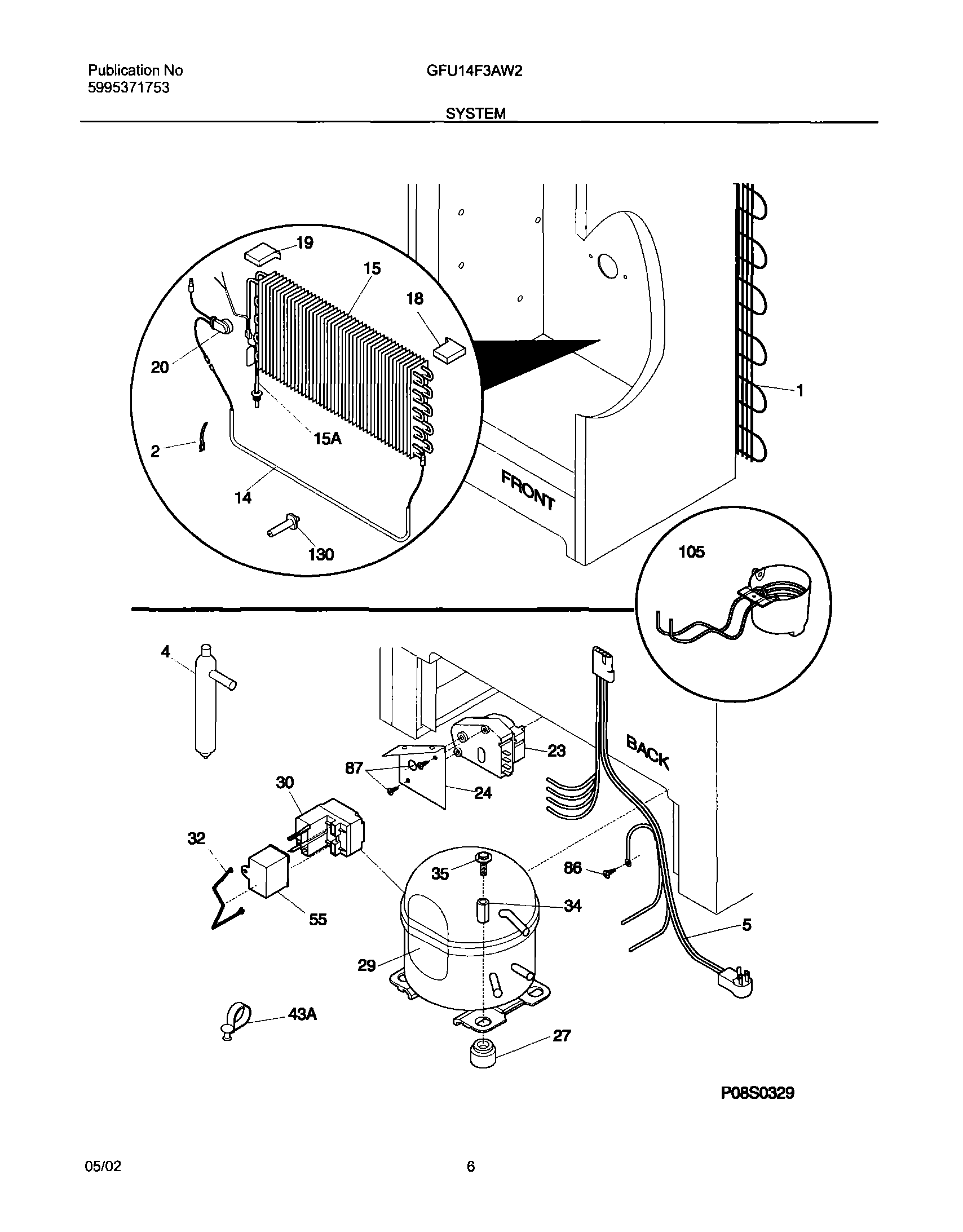

GFU14F3AW2 07 – SYSTEM

Products

PositionProduct
15300123788 Frigidaire Refrigerator Condenser
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216824400
145304496687 Frigidaire Refrigerator Defrost Heater
15A297348500 Frigidaire Heat Exchange
15297414800 Frigidaire Refrigerator Evaporator
18WCI 216727600
19WCI 216727700
20297216600 Frigidaire Refrigerator Defrost Thermostat
235304518034 Frigidaire Refrigerator Defrost Timer
24WCI 08016580
27216498900 Frigidaire Refrigerator Grommet
29WCI 216784300
305304491584 Frigidaire Overload Start Relay
325304497418 Frigidaire Refrigerator Clip
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A297315800 Frigidaire Refrigerator Clip
55218909912 Frigidaire Capacitor Run
86216036601 Frigidaire Refrigerator Screw
87SCREW
105216999900 Frigidaire Refrigerator Cup-Drain
130297244700 Frigidaire Refrigerator Support
