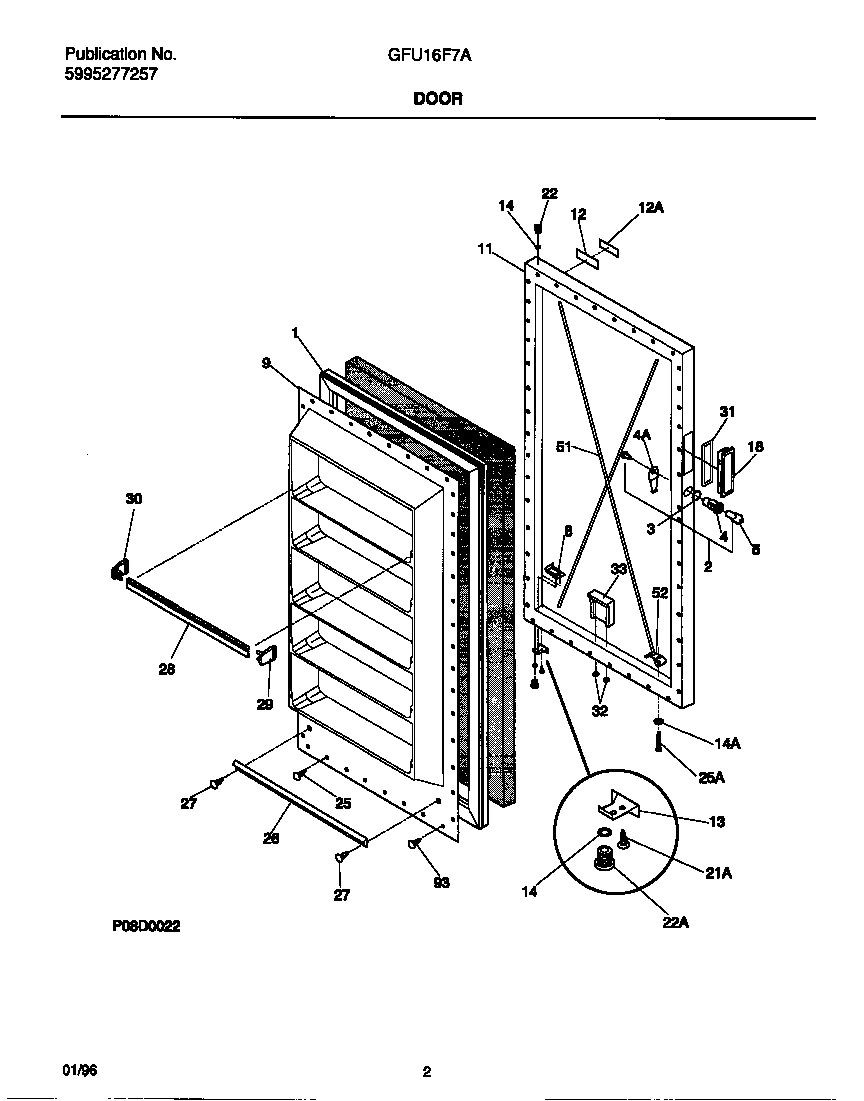

GFU16F7AW5 02 – DOOR

GFU16F7AW5 02 – DOOR

Written by

in

GFU16F7AW5 02 – DOOR

Products

PositionProduct
*38360INSULATION
1WCI 3206251
2WCI 5303925107
3Washer-sealing
4WCI 5303283905
4WCI 216330800
5297147700 Frigidaire Freezer Plastic Door Key
8WCI 5300091170
9PANEL-INNER DOOR, WHITE
11WCI 216011712
12INSERT-BEZEL
12BEZEL, NAMEPLATE
13DOOR STOP
14WCI 5303313518
14WCI 5303307087
18WCI 216140200
21Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
22WCI 5303925197
22297006800 Frigidaire Refrigerator Bearing Hinge
25WCI 216022800
25WCI 216365400
26WCI 06594681
275303212828 Frigidaire Refrigerator Primary Clip
28RACK-SHELF, NARROW
29216334000 Frigidaire Refrigerator End Cap
30216334100 Frigidaire Refrigerator End Cap
31GASKET, WHITE
32Valve,breather ,door base
33WCI 216196001
51WIRE-DOOR ADJUSTMENT
52WCI 05879859
93216858001 Frigidaire Refrigerator Screw
