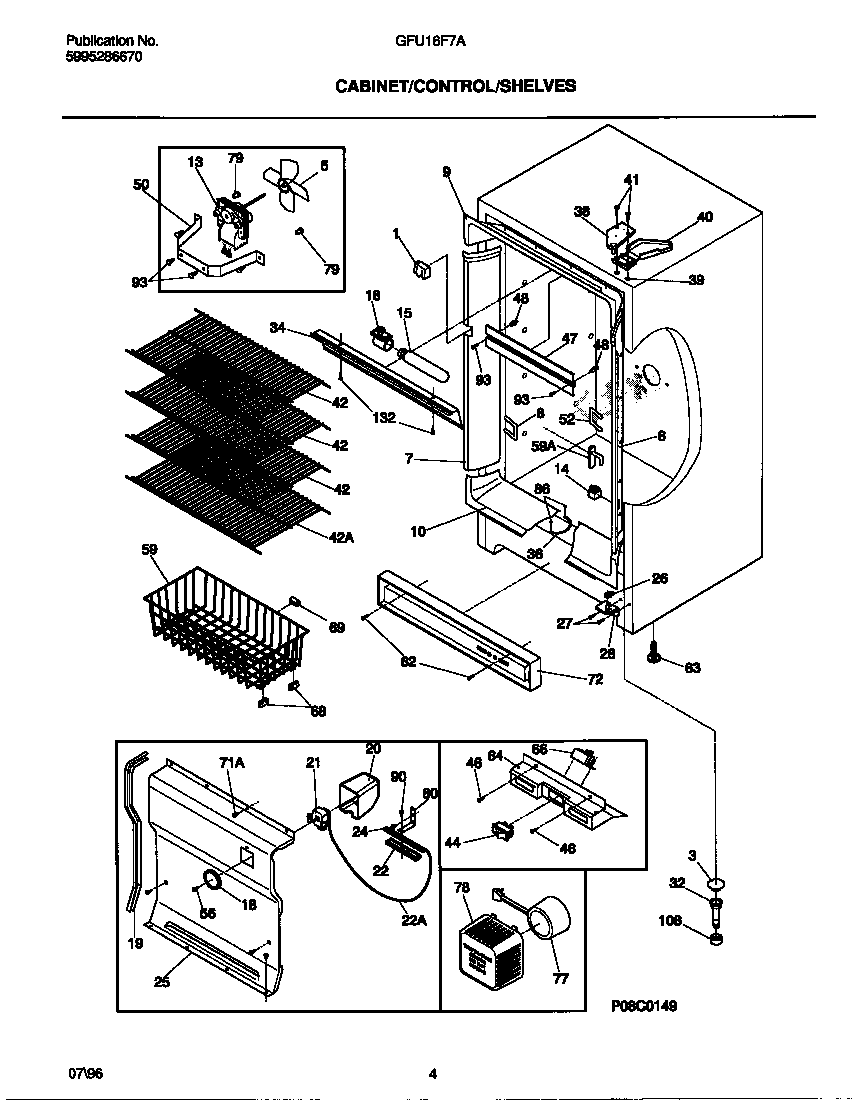

GFU16F7AW7 03 – CABINET/CONTROL/SHELVES

GFU16F7AW7 03 – CABINET/CONTROL/SHELVES

Written by

in

GFU16F7AW7 03 – CABINET/CONTROL/SHELVES

Products

PositionProduct
*29881WCI 06594680
*29882WCI 5303207297
*29883WCI 5303207388
*29884WCI 5303212683
*298855303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 216013600
3216503100 Frigidaire Refrigerator Screen-Drain
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 216108801
7WCI 216108901
8CLIP, U, LOCK
9WCI 216085900
10WCI 216085800
135304442620 Frigidaire Refrigerator Evaporator Fan Motor
145309918806 Frigidaire Refrigerator Light Switch Door
155304517886 Frigidaire Refrigerator Light
16SOCKET, LIGHT/LAMP
18WCI 216008801
19WCI 216204900
20WCI 216230300
21WCI 216303500
22WCI 05878562
22TUBE
24SCREW, CLAMP, TRUSS HD CR, CONTROL
25WCI 216084100
26RAMP, DOOR
27154518001 Frigidaire Refrigerator Screw
28WCI 216247400
325304511843 Frigidaire Refrigerator Sleeve
34WCI 216241601
36WCI 06594651
38WCI 5303925086
39WCI 5303294372
40COVER, HINGE
41WCI 5303212937
42WCI 216267001
42SHELF-BOTTOM, (1)
44WCI 5303017178
46WCI 08037851
47WCI 5303288233
48WCI 08000456
50WCI 216394000
52RETAINER, WIRE, BREAKER
56WCI 09950853
595304497658 Frigidaire Refrigerator Basket
59WCI 09948791
62131420300 Frigidaire Screw
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
64WCI 08016369
66WCI 08016367
6808009560 Frigidaire 0 Basket Glide
695305878546 Frigidaire Refrigerator Bumper-Basket
71131168200 Frigidaire Dryer Screw
72GRILLE/KICKPLATE
77WCI 5308037992
78WCI 3205349
79301036 Frigidaire Refrigerator Insert Nut
80WCI 06594601
86216036601 Frigidaire Refrigerator Screw
90SCREW, TH, 8-32 X 2-1/2
93216858001 Frigidaire Refrigerator Screw
108WCI 216388600
132WCI 5303283898
