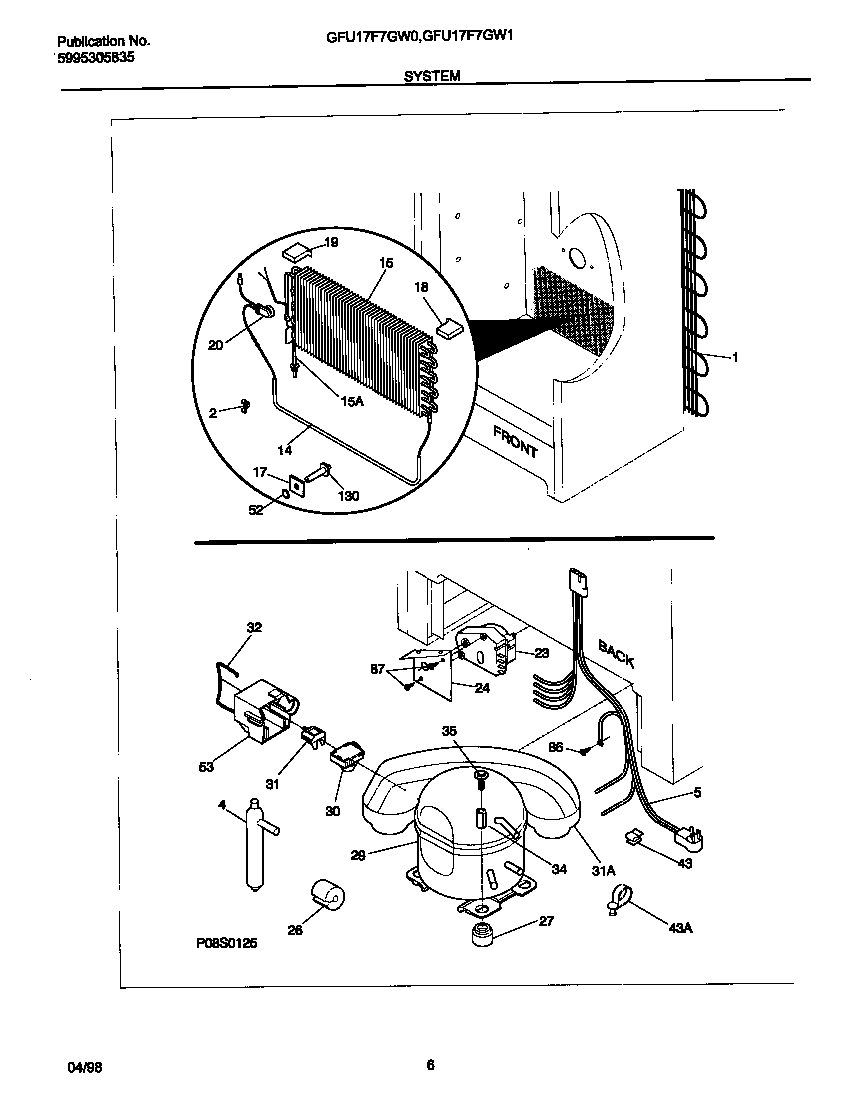

GFU17F7GW1 04 – SYSTEM

GFU17F7GW1 04 – SYSTEM

Written by

in

GFU17F7GW1 04 – SYSTEM

Products

PositionProduct
*89645WCI 05878556
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216588900
14216608500 Frigidaire Refrigerator Defrost Heater Assembly
15WCI 216195900
15WCI 216385200
17WCI 06599546
18WCI 06599531
19WCI 3017674
20297216600 Frigidaire Refrigerator Defrost Thermostat
235304518034 Frigidaire Refrigerator Defrost Timer
24WCI 08016580
26WCI 216511900
27216498900 Frigidaire Refrigerator Grommet
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
30216594300 Frigidaire Refrigerator Starter
315304428401 Frigidaire Refrigerator Pan Kit
31WCI 216100115
325303006412 Frigidaire Refrigerator Cover Mounting Strap
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
435303212614 Frigidaire Refrigerator Clip
43WCI 09950610
52WCI 08013198
53WCI 08006982
86216036601 Frigidaire Refrigerator Screw
87SCREW
130WCI 06599544
