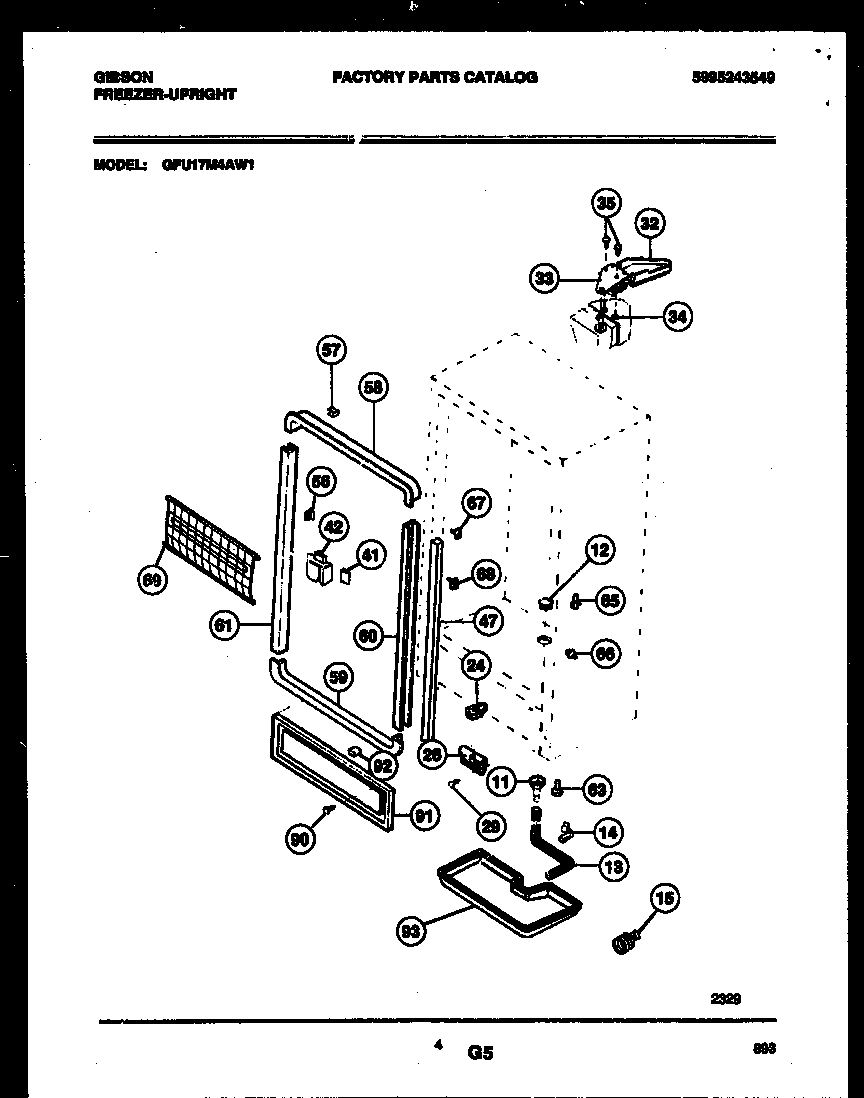

GFU17M4AW1 03 – CABINET PARTS

Products

Position	Product
11	5304511843 Frigidaire Refrigerator Sleeve
12	PLUG, DRAIN, LINER
13	5304512272 Frigidaire Hose Drain
14	WCI 06593405
15	WCI 5303294374
24	RAMP, DOOR
26	WCI 5303210383
29	154518001 Frigidaire Refrigerator Screw
32	COVER, HINGE
33	HINGE, TOP
34	WCI 5303294372
35	WCI 5303212937
41	CLIP, U, LOCK
42	WCI 216013600
47	INSULATION (CUT TO SIZE)
56	WCI 06594680
57	RETAINER, WIRE, BREAKER
58	WCI 216085900
59	WCI 216085800
60	WCI 216109000
61	WCI 216109101
63	WCI 216218100
65	WCI 06599973
66	WCI 06599975
67	WCI 06599974
68	WCI 06599976
69	WCI 216098200
90	FASTENER BASE PANEL
91	WCI 216157800
92	WCI 5300118003
