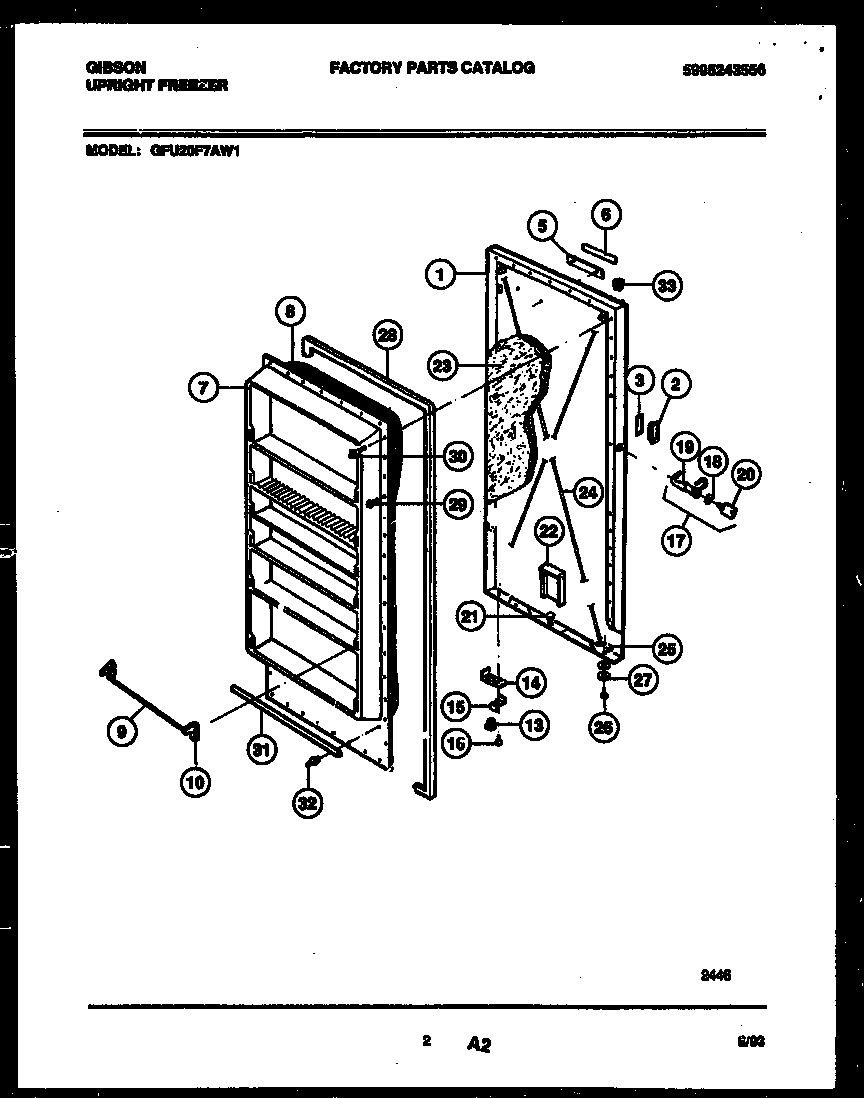

GFU20F7AW1 02 – DOOR PARTSadmin2025-04-26T09:31:08+00:00GFU20F7AW1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | PANEL-OUTER DOOR, WHITE |
| 2 | WCI 216140200 |
| 3 | GASKET, WHITE |
| 5 | BEZEL, NAMEPLATE |
| 6 | INSERT-BEZEL |
| 7 | PANEL-INNER DOOR, WHITE |
| 8 | INSULATION (CUT TO SIZE) |
| 9 | WCI 3205348 |
| 10 | 5303925377 Frigidaire Refrigerator Endcap Kit R & L |
| 11 | WCI 08016386 |
| 12A | END CAP LH WIDE (3) |
| 12 | END CAP, RH WIDE (3) |
| 13 | 297006800 Frigidaire Refrigerator Bearing Hinge |
| 14 | WCI 5300091170 |
| 15 | DOOR STOP |
| 16 | Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric |
| 17 | WCI 5303925107 |
| 18 | Washer-sealing |
| 19 | WCI 216013800 |
| 20 | 297147700 Frigidaire Freezer Plastic Door Key |
| 21 | Valve,breather ,door base |
| 22 | WCI 5303212700 |
| 23 | INSULATION-BULK (NON-ILLUSTRATED) |
| 24 | WIRE, DOOR ADJUSTMNT |
| 25 | WCI 05879859 |
| 26 | SCREW |
| 27 | WASHER, PLAIN, DOOR BRACKET |
| 28 | GASKET DOOR |
| 29 | 216858001 Frigidaire Refrigerator Screw |
| 30 | WCI 08009384 |
| 31 | WCI 5308016356 |
| 32 | 5303212828 Frigidaire Refrigerator Primary Clip |
| 33 | WCI 5303297490 |
