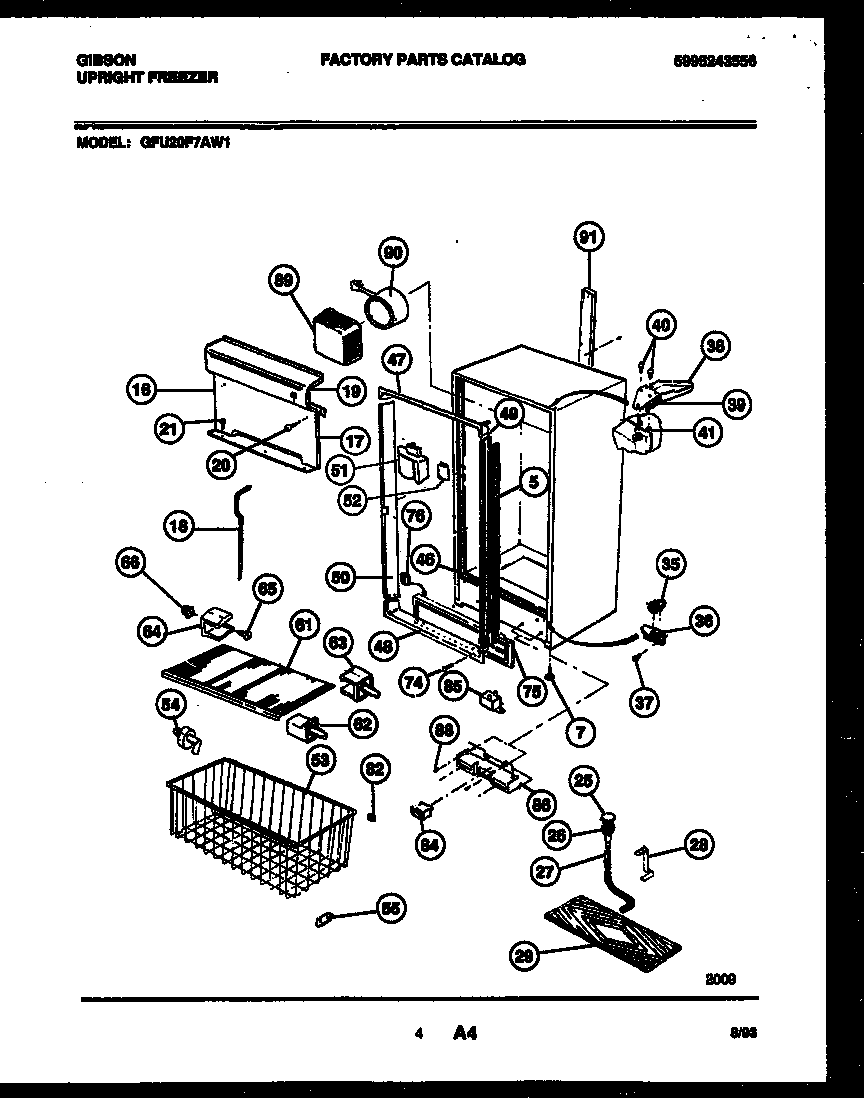

GFU20F7AW1 03 – CABINET PARTS

Products

Position	Product
5	INSULATION (CUT TO SIZE)
7	SCREW-LEVELING (4)
16	WCI 216084200
17	WCI 06599547
18	WCI 216204901
19	PLUG-INDICATOR
20	216858001 Frigidaire Refrigerator Screw
21	131168200 Frigidaire Dryer Screw
25	216503100 Frigidaire Refrigerator Screen-Drain
26	5304511843 Frigidaire Refrigerator Sleeve
27	5304512272 Frigidaire Hose Drain
28	WCI 06594637
29	WCI 5308016387
35	RAMP, DOOR
36	WCI 5303210383
37	154518001 Frigidaire Refrigerator Screw
38	COVER, HINGE
39	HINGE, TOP
40A	SPACER-BREAKER (8)
40	WCI 5303212937
41	WCI 5303294372
46	WCI 06594680
47	WCI 216085900
48	WCI 216085800
49	WCI 216107501
50	WCI 216107601
51	WCI 216013600
52	CLIP, U, LOCK
53	WCI 216076700
54	WCI 09948791
55	08009560 Frigidaire 0 Basket Glide
61A	WCI 216077100
61	WCI 216077101
62	WCI 5306594706
62A	WCI 5306594707
63	WCI 5306594584
64	WCI 5306594585
65	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66	301036 Frigidaire Refrigerator Insert Nut
74	FASTENER BASE PANEL
75	WCI 216222900
76	WCI 5300118003
82	5305878546 Frigidaire Refrigerator Bumper-Basket
84	WCI 5303017178
85	WCI 08016367
86	WCI 08016369
88	WCI 08037851
89	WCI 3205349
90	WCI 5308037992
90A	WCI 5303212683
91	WCI 216009000
