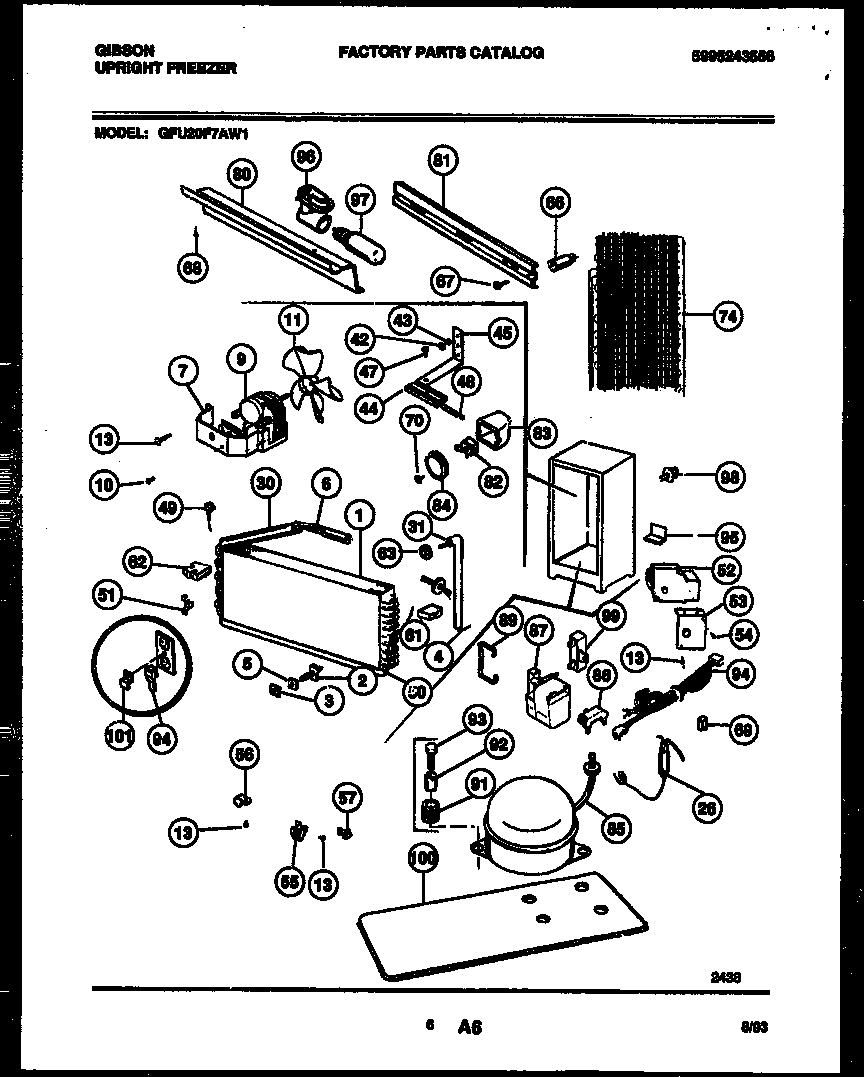

GFU20F7AW1 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

GFU20F7AW1 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

GFU20F7AW1 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 216195900
2WCI 06599544
3WCI 08013198
4WCI 5303272332
5WCI 06599546
6SLEEVE-EVAPORATOR TUBING (2)
7WCI 08013207
95304442620 Frigidaire Refrigerator Evaporator Fan Motor
10WCI 08037851
11WCI 3205520
265303305677 Frigidaire Replacement Filter Dryer Filters
30WCI 06594625
31WCI 5303207297
42216036601 Frigidaire Refrigerator Screw
43WCI 5300095480
44AWCI 06594508
44WCI 05788562
45WCI 06594601
47SCREW, CLAMP, TRUSS HD CR, CONTROL
48TUBE
495303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
50WCI 5306599535
515308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
525304518034 Frigidaire Refrigerator Defrost Timer
53WCI 08016580
54SCREW
555304455846 Frigidaire Refrigerator Clamp
56WCI 06599553
57WCI 05878556
61WCI 06599531
62WCI 3017674
66WCI 08000456
67216858001 Frigidaire Refrigerator Screw
68WCI 5303283898
69RETAINER, WIRE, BREAKER
70AWCI 06594651
70WCI 09950853
745300083897 Frigidaire Refrigerator Condenser P1 O/S2
80WCI 216241601
81WCI 5303288233
82WCI 216216000
83WCI 216230300
84WCI 216008801
85WCI 216110300
86WCI 216110400
87WCI 216008900
89WCI 215012000
91216498900 Frigidaire Refrigerator Grommet
92SLEEVE-COMPRESSOR
93SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
94WCI 216236100
95WCI 5303272330
96SOCKET, LIGHT/LAMP
975304517886 Frigidaire Refrigerator Light
985309918806 Frigidaire Refrigerator Light Switch Door
995304464438 Frigidaire Compressor Run Capacitor
100WCI 216169200
101RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
