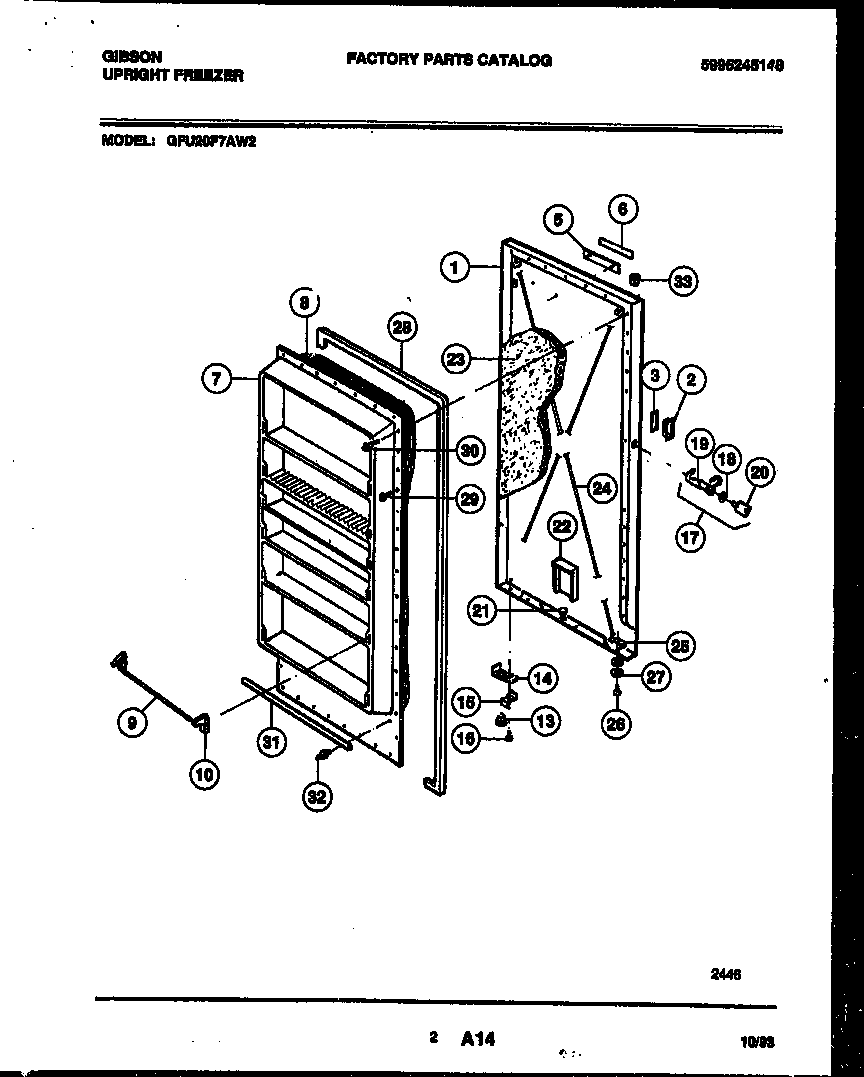

GFU20F7AW2 02 – DOOR PARTS

Products

Position	Product
1	PANEL-OUTER DOOR, WHITE
2	WCI 216140200
3	GASKET, WHITE
5	BEZEL, NAMEPLATE
6	INSERT-BEZEL
7	PANEL-INNER DOOR, WHITE
8	INSULATION (CUT TO SIZE)
9	WCI 3205348
10	5303925377 Frigidaire Refrigerator Endcap Kit R & L
13	297006800 Frigidaire Refrigerator Bearing Hinge
14	WCI 5300091170
15	DOOR STOP
16	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
17	WCI 5303925107
18	Washer-sealing
19	WCI 216013800
20	297147700 Frigidaire Freezer Plastic Door Key
21	Valve,breather ,door base
22	WCI 5303212700
23	INSULATION-BULK (NON-ILLUSTRATED)
24	WIRE, DOOR ADJUSTMNT
25	WCI 05879859
26	SCREW
27	WASHER, PLAIN, DOOR BRACKET
28	GASKET DOOR
29	216858001 Frigidaire Refrigerator Screw
30	WCI 08009384
31	WCI 5308016356
32	5303212828 Frigidaire Refrigerator Primary Clip
33	WCI 5303297490
