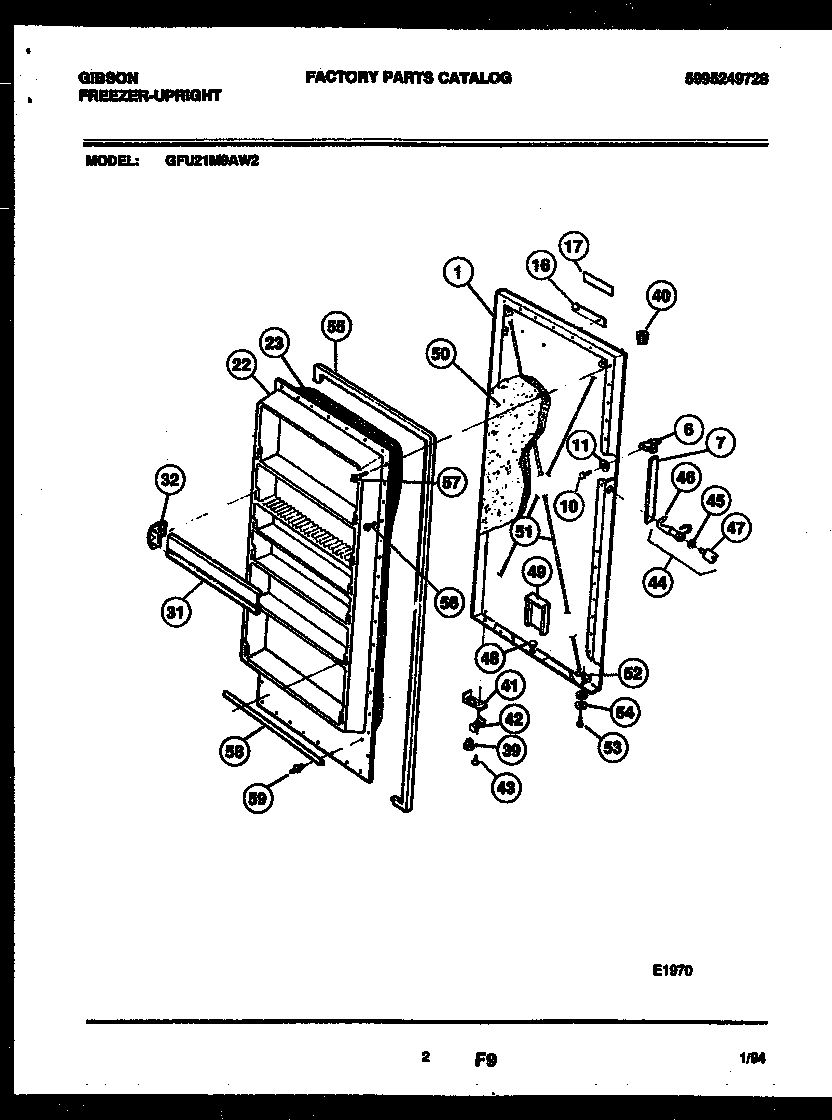

GFU21M9AW2 02 – DOOR PARTS

Products

Position	Product
1	PANEL-DOOR, WHITE
6	END CAP-HANDLE
7	HANDLE, CENTER
10	216858001 Frigidaire Refrigerator Screw
11	134716700 Frigidaire Washer
16	BEZEL,NAMEPLATE
17	INSERT-BEZEL
22	WCI 216048807
23	INSULATION (CUT TO SIZE)
31	WCI 216153100
31A	WCI 216153200
32A	WCI 216257900
32	WCI 216257800
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5306593364
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5303925107
45	Washer-sealing
46	WCI 216013800
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE, DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	GASKET DOOR
57	WCI 216022800
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
