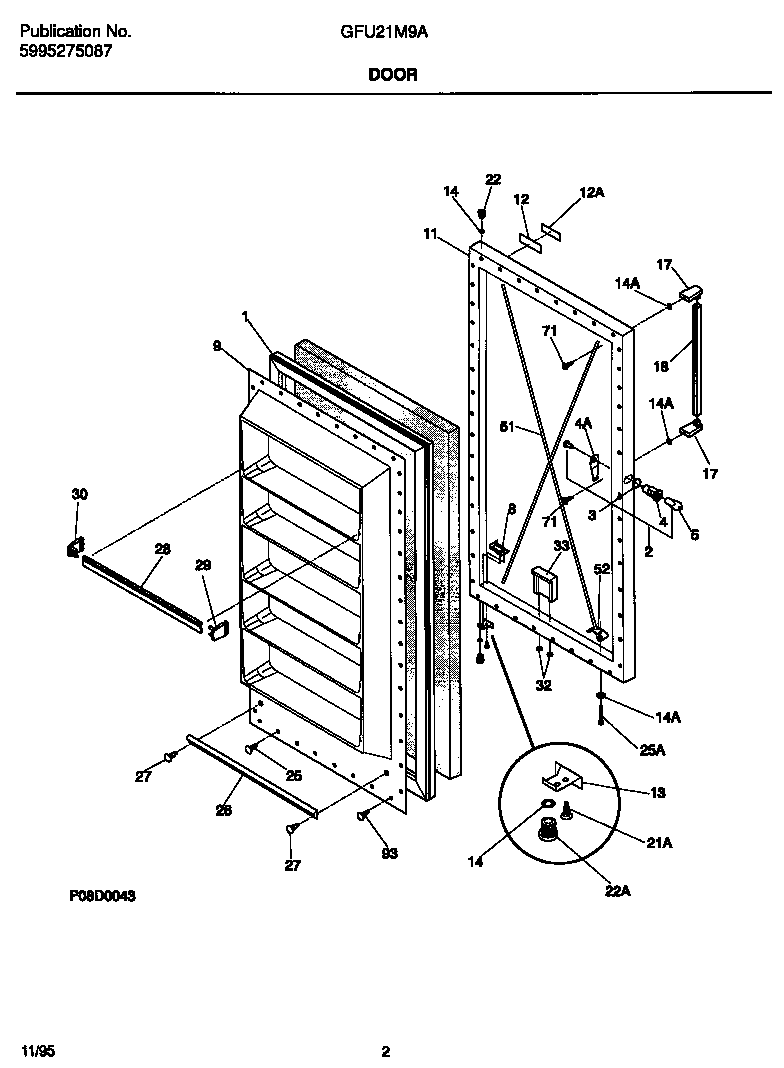

GFU21M9AW5 02 – DOOR

GFU21M9AW5 02 – DOOR

Written by

in

GFU21M9AW5 02 – DOOR

Products

PositionProduct
*46800INSULATION
1GASKET DOOR
2WCI 5303925107
3Washer-sealing
4WCI 216323600
4WCI 5303283905
5297147700 Frigidaire Freezer Plastic Door Key
8WCI 5300091170
9PANEL-INNER DOOR, WHITE
11WCI 216011606
12BEZEL,NAMEPLATE
12INSERT-BEZEL
13DOOR STOP
14WCI 5303307087
14WCI 5303313518
17END CAP-HANDLE
18HANDLE, CENTER
21Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
22297006800 Frigidaire Refrigerator Bearing Hinge
22WCI 5303925197
25WCI 216022800
25WCI 216365400
26WCI 06594681
275303212828 Frigidaire Refrigerator Primary Clip
28WCI 216153200
29END CAP-WIDE, LH
30END CAP-WIDE, RH
32Valve,breather ,door base
33WCI 5303212700
51WIRE, DOOR ADJUSTMNT
52WCI 05879859
71216858001 Frigidaire Refrigerator Screw
