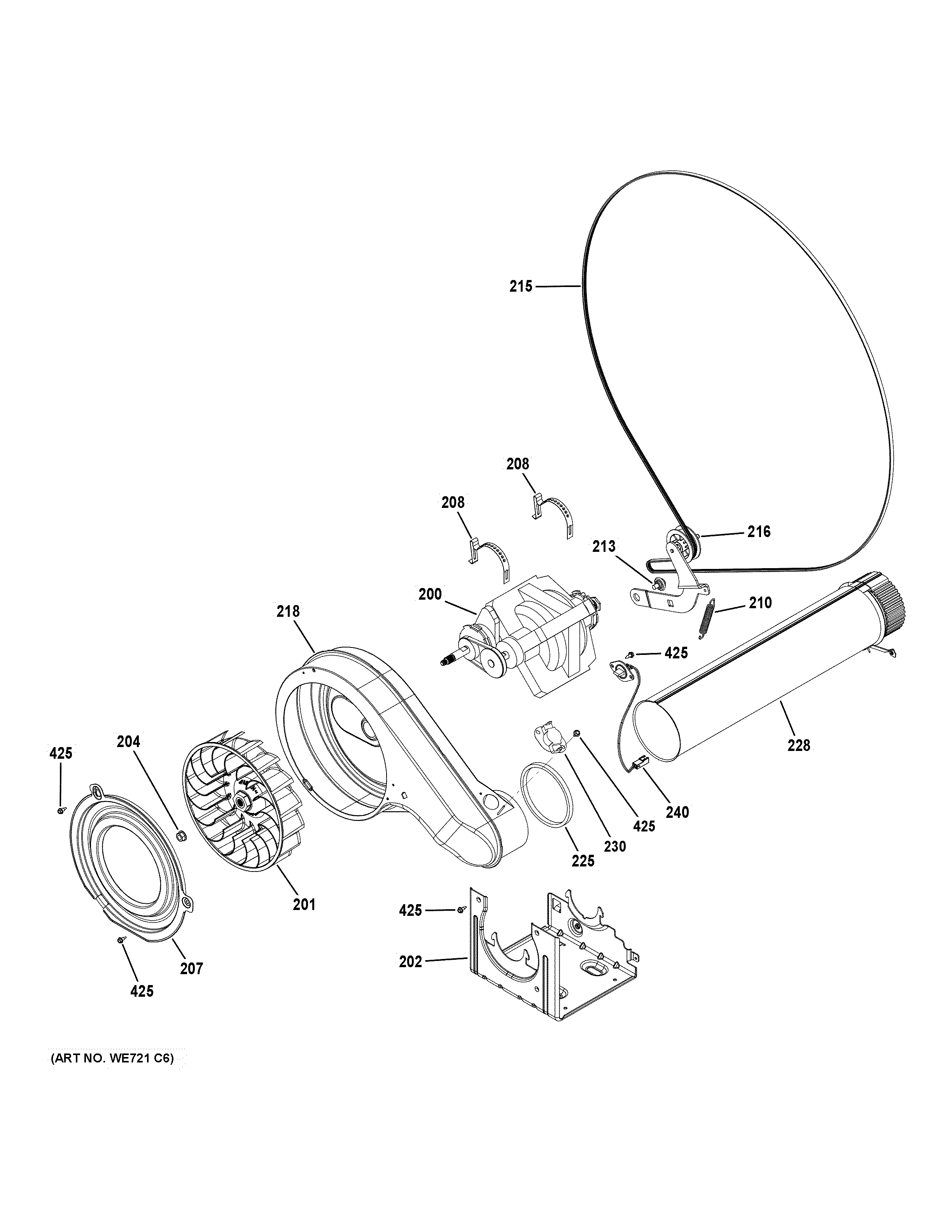

GFV55ESSN2WW BLOWER & MOTOR

GFV55ESSN2WW BLOWER & MOTOR

Written by

in

GFV55ESSN2WW BLOWER & MOTOR

Products

PositionProduct
200WE03X29821 GE Motor
201WE16X33977 GE Blower Wheel Assembly
202MOTOR BRACKET LONG VENT
204WE02X29717 GE Belleville Nut
207WE13X29716 GE Inlet Ring
208CLIP RESILIENT MOUNT
210WE03X29702 GE Idler Spring Assembly
213WE02X29732 GE Pivot Bold Shoulder
215WE03X29704 GE Drive Belt
216IDLER ARM
218WE16X29713 GE Blower Housing
225FAN SEAL
228WE11X29734 GE Exhaust Duct
230THERMOSTAT 2
240WE04X29714 GE Outlet Thermistor
425WH2X1217 GE Screw Assembly
