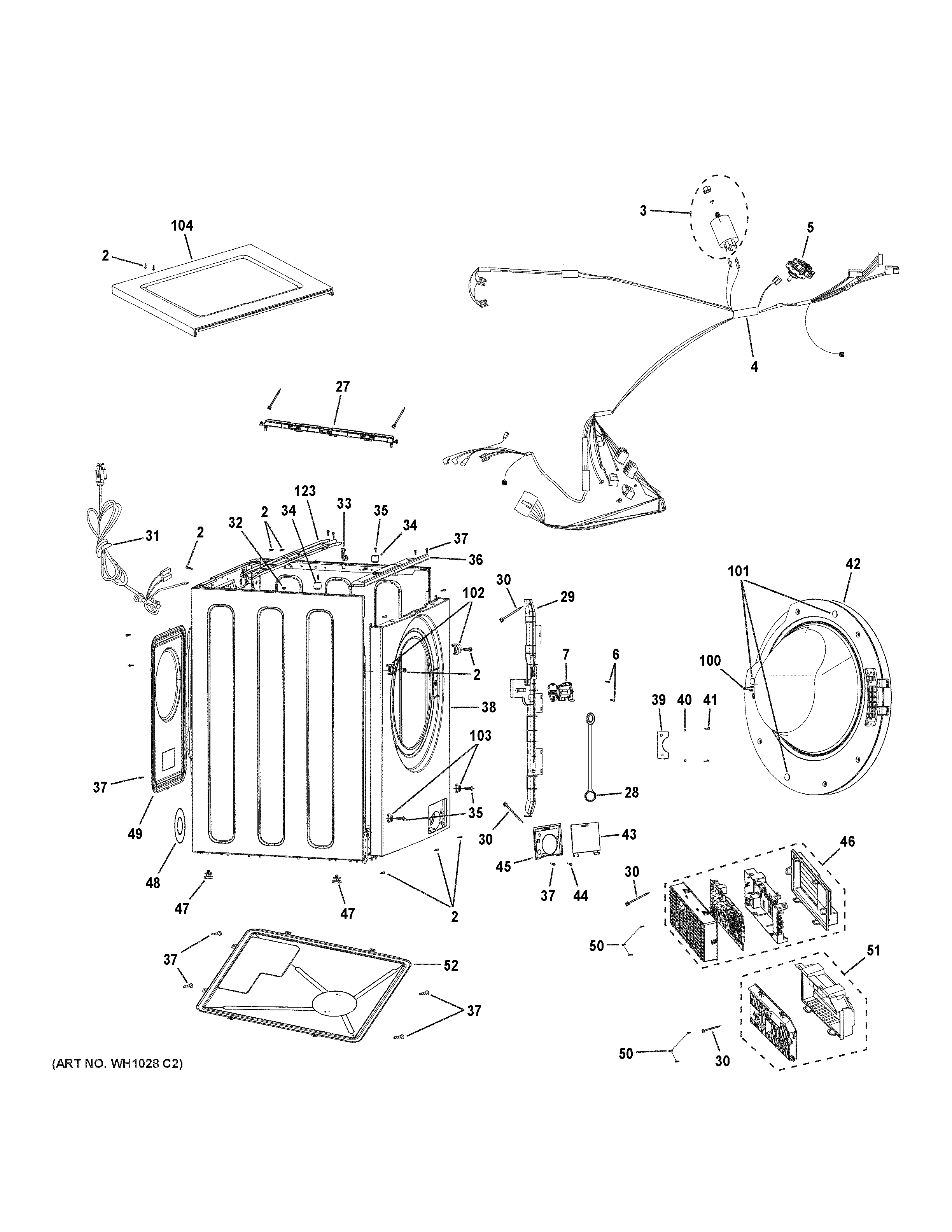

GFW148SSL0WW CABINET

Products

Position	Product
2	WH02X26236 GE Screw Assembly
3	LINE FILTER ASSEMBY
4	MAIN HARNESS
5	WH12X27814 GE Pressure Switch
6	WH02X26240 GE Screw
7	WH01X26241 GE Washer Door Lock
27	WH19X26256 GE Washing Machine Go Through – S
28	WH16X26579 GE Washer Door Unlock Strap
29	WH19X26258 GE Washing Machine Go Through – L
30	WH01X26259 GE Wire Tie
31	WH19X26260 GE Power Cord
32	WH02X26262 GE Right Spring Sheath
33	WH02X26263 GE Left Spring Sheath
34	WH01X26264 GE Top Panel Guide Pin
35	WH02X26265 GE Top Panel Guide Pin Screw
36	TOP FRONT BRACKET
37	WH02X26267 GE Screw
38	FRONT PANEL
39	WH10X26269 GE Washing Machine Door Hin Ret
40	WH02X26270 GE Lock Washer
41	WH02X26271 GE Door Hinge Screws
42	WH46X27275 GE Washer Inner Frame of Sight Window
43	DRAIN CLEANOUT ACCESS DOOR (WHITE)
44	WH02X26189 GE Tapping Screw
45	ACCESS DOOR FRAME
46	WH18X26279 GE Power Control Board Assembly
47	WH46X26281 GE Washer Levelling Leg
48	WH41X26282 GE Hose Guide External
49	WH44X26283 GE Rear Cover
50	POWER BOARD MOUNTING SCREWS
51	WH18X26285 GE Refrigerator Control Board Driver Assembly
52	BOTTOM COVER PLATE
100	WH01X26274 GE Door Strike
101	WH01X26275 GE Washer Rubber Cover
102	WH01X26843 GE Upper Guide Pins
103	LOWER GUIDE PIN
104	WH44X26235 GE Top Cover
123	CROSS BRACE
