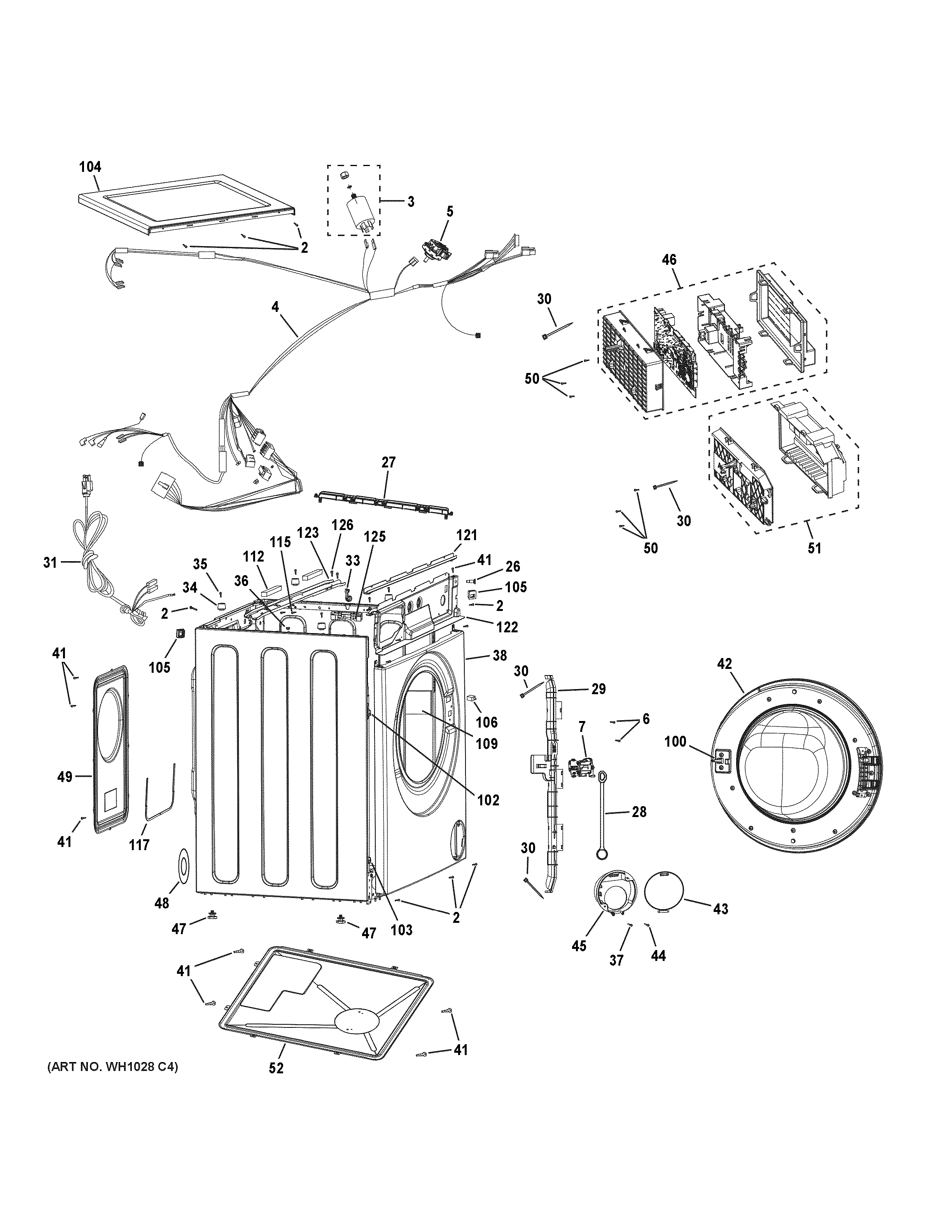

GFW148SSM0WW CABINET

Products

Position	Product
2	WH02X26236 GE Screw Assembly
3	WH04X29460 GE Line Filter
4	WH19X28337 GE Main Harness
5	WH12X27815 GE Pressure Switch
6	WH02X26240 GE Screw
7	DOOR LOCK
26	WH02X28411 GE Control Panel Position Screw
27	WH19X26256 GE Washing Machine Go Through – S
28	WH16X26579 GE Washer Door Unlock Strap
29	WH19X26258 GE Washing Machine Go Through – L
30	WH01X26259 GE Wire Tie
31	WH08X31357 GE Power Cord
33	WH02X26263 GE Left Spring Sheath
34	WH01X26264 GE Top Panel Guide Pin
35	TOP PANEL GUIDE PIN SCREW
36	WH02X26262 GE Right Spring Sheath
37	WH02X26267 GE Screw
38	WH46X28499 GE Front Panel
41	WE02X27505 GE Hinge Screw
42	DOOR ASSEMBLY
43	WH42X28355 GE Cleanout Access Door Drain (Wh)
44	WH02X26189 GE Tapping Screw
45	WH42X28356 GE Access Door Frame
46	WH18X28357 GE Power Board Assembly
47	WH46X28359 GE Washer Leveling Leg
48	WH41X26282 GE Hose Guide External
49	REAR COVER
50	TAPPING SCREW
51	WH18X28358 GE Inverter Board Assembly
52	BOTTOM COVER PLATE
100	WH01X28362 GE Door Strike
102	WH01X26843 GE Upper Guide Pins
103	LOWER GUIDE PIN
104	WE20X27513 GE Top Cover
105	RJ45 CONNECTOR
106	WH18X28404 GE Door Switch
109	SQUARE FELT
112	WH01X28406 GE Crossbrace Foam Pad
115	GROUND SCREW
117	WH08X28414 GE Back Cover Seal
121	WATER CHANNEL
122	CONTROL PANEL MOUNTING BRACKET
123	CROSS BRACE
125	CROSS BRACE CONNECTION REINFORCEMENT
126	WH02X28479 GE M6 Bolt
