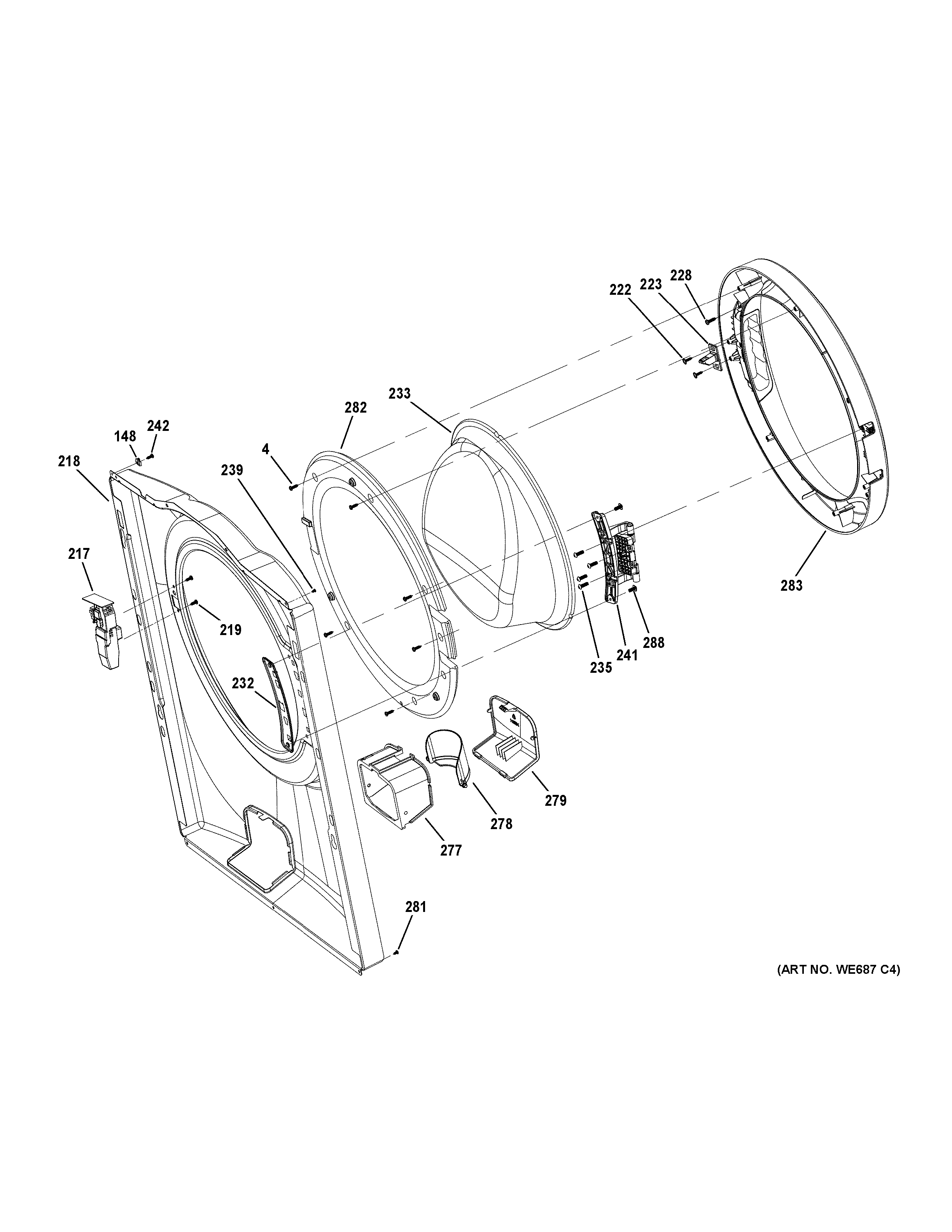

GFW400SCM1WW FRONT PANEL & DOOR

GFW400SCM1WW FRONT PANEL & DOOR

Products

PositionProduct
4WH02X10222 GE Screw ST4 16
148GEN WH01X10651
217DOOR LOCK
218WH46X20822 GE Front Panel Assembly
219WH02X10189 GE Screw ST4 13 F05
222WH02X10269 GE ST4.13 Screw
223DOOR PLUNGER
228WH02X10193 GE Screw ST3.5
232GEN WH16X10163
233GEN WH46X10150
235WH02X10270 GE Screw M5 16
239WH02X10197 GE Screw St4.4 9.5
241HINGE ASSEMBLY
242GEN WH02X10182
277WH12X10543 GE Board Fender
278WH01X10655 GE Drain Channel
279GEN WH01X10654
281WH02X10219 GE Screw ST4 10
282DOOR COVER SUB
283DR FRM HANDLE SUB
288WH02X10234 GE Screw M5 12
