GFW430SSM1WW CONTROLS & DISPENSER

GFW430SSM1WW CONTROLS & DISPENSER

Written by

in

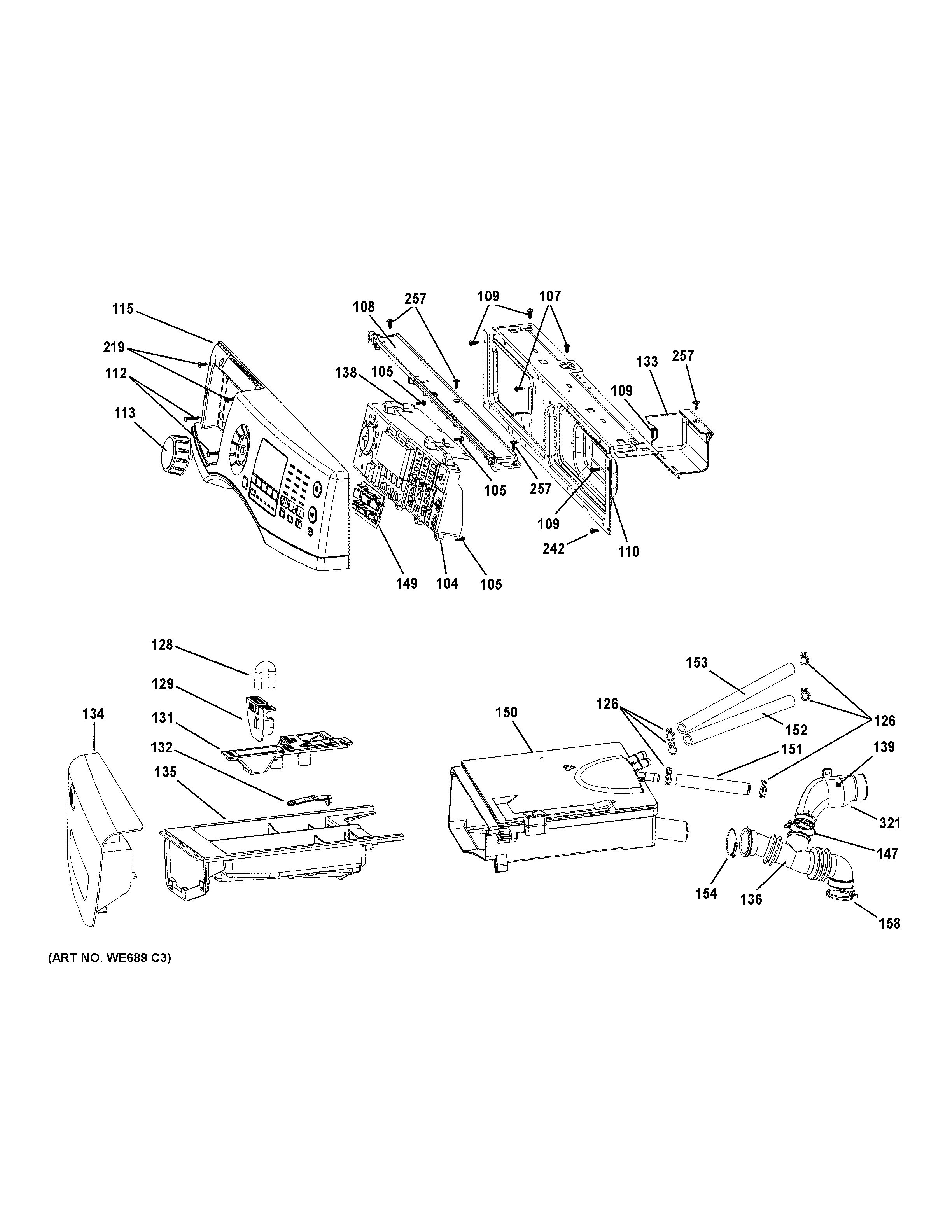

GFW430SSM1WW CONTROLS & DISPENSER

Products

PositionProduct
104WH12X27296 GE User Interface Board
105WH02X10181 GE Screw ST3.5 x 11
107WH02X10183 GE Screw ST4 13
108WH44X21237 GE Washer Rear Control
109WH02X10184 GE Screw 4.2 x 13
110WH46X10272 GE Top Front Bracket
112WH02X10185 GE Screw ST4 25
113WE01X21167 GE Washer Knob
115CONTROL PANEL ASM
126WH01X10324 GE Washer Water Inlet Hose
128WH41X10112 GE Siphon Pipe
129LIQUID DETERGENT INSERT
131WH41X10155 GE Washer Bleach Dispenser
132WH01X10245 GE Level Drawer Latch
133WH44X10296 GE Cover Harness
134HANDLE
135WH41X10302 GE Drawer
136WH41X10257 GE Water Inlet Pipe
138FLAME RESISTANT FLAP
139GEN WH02X10186
147WH02X10341 GE Washer Water Inlet Hose
149TEMP BUTTON PIPE SUB
150WH41X10303 GE Main Box
151GEN WH41X10156
152WH41X10157 GE Inlet Water Hose for Bleach
153WH41X10158 GE Hot Water Inlet Hose
154GEN WH01X10377
158WH01X10379 GE Washer Water Inlet Hose
219WH02X10189 GE Screw ST4 13 F05
242GEN WH02X10182
257WH02X10201 GE Screw ST4.2 13
321WH41X10249 GE Vent Hose
