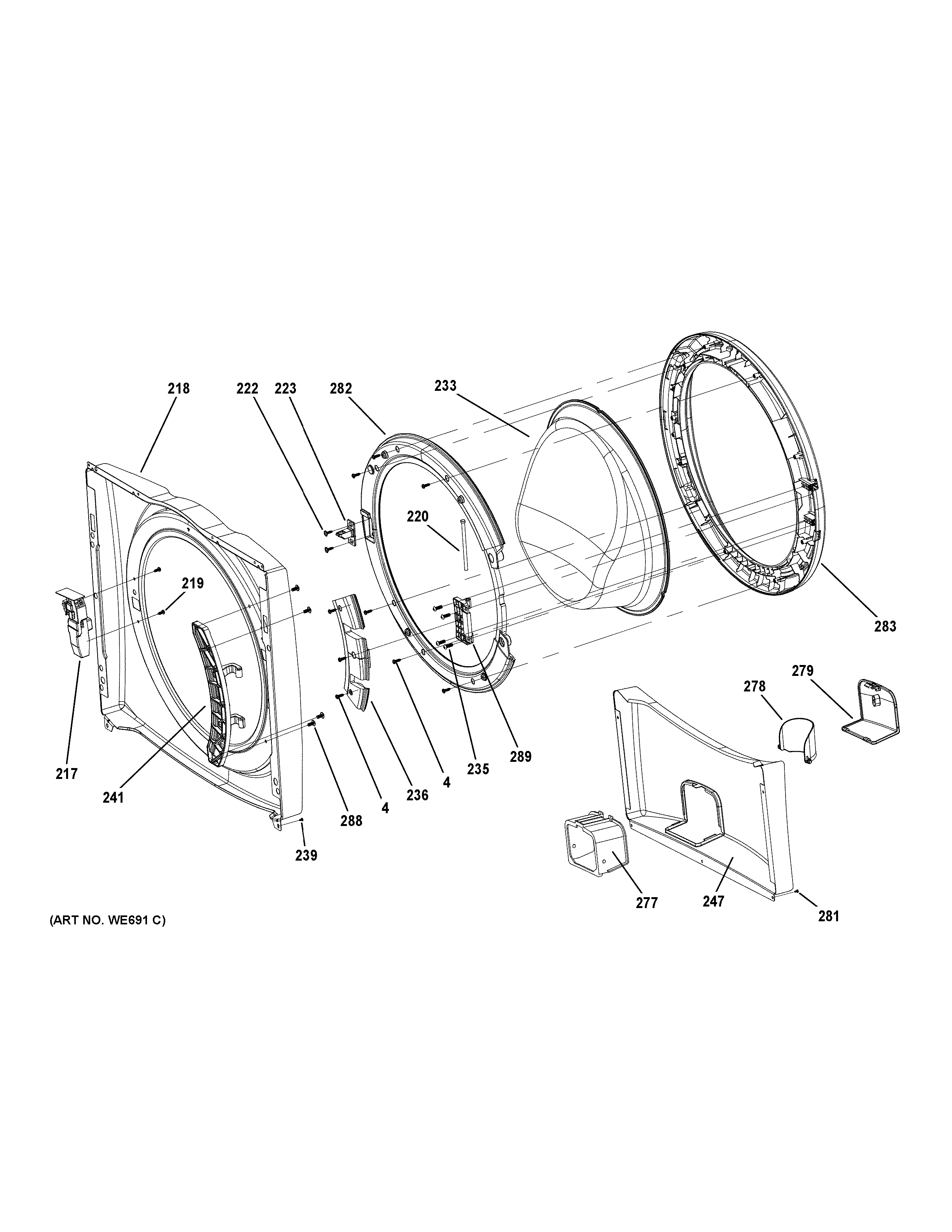

GFW450SPK0DG FRONT PANEL & DOOR

GFW450SPK0DG FRONT PANEL & DOOR

Written by

in

GFW450SPK0DG FRONT PANEL & DOOR

Products

PositionProduct
4WH02X10222 GE Screw ST4 16
217DOOR LOCK
218FRONT PANEL
219WH02X10189 GE Screw ST4 13 F05
220HINGE PIN
222WH02X10191 GE ST4 20 Screw
223DOOR PLUNGER
233WH46X25561 GE Glass Door
235WH02X10270 GE Screw M5 16
236HINGE COVER
239WH02X10197 GE Screw St4.4 9.5
241HINGE
247SERVICE PANEL
277WH01X10567 GE Shroud Access Pump
278WH01X10568 GE Drain Pump Channel
279WH01X21560 GE Access Door
281WH02X10219 GE Screw ST4 10
282DOOR COVER SUB
283DOOR FRAME AND PROTECT C
288WH02X10234 GE Screw M5 12
289WH02X20920 GE Hinge Leaf
