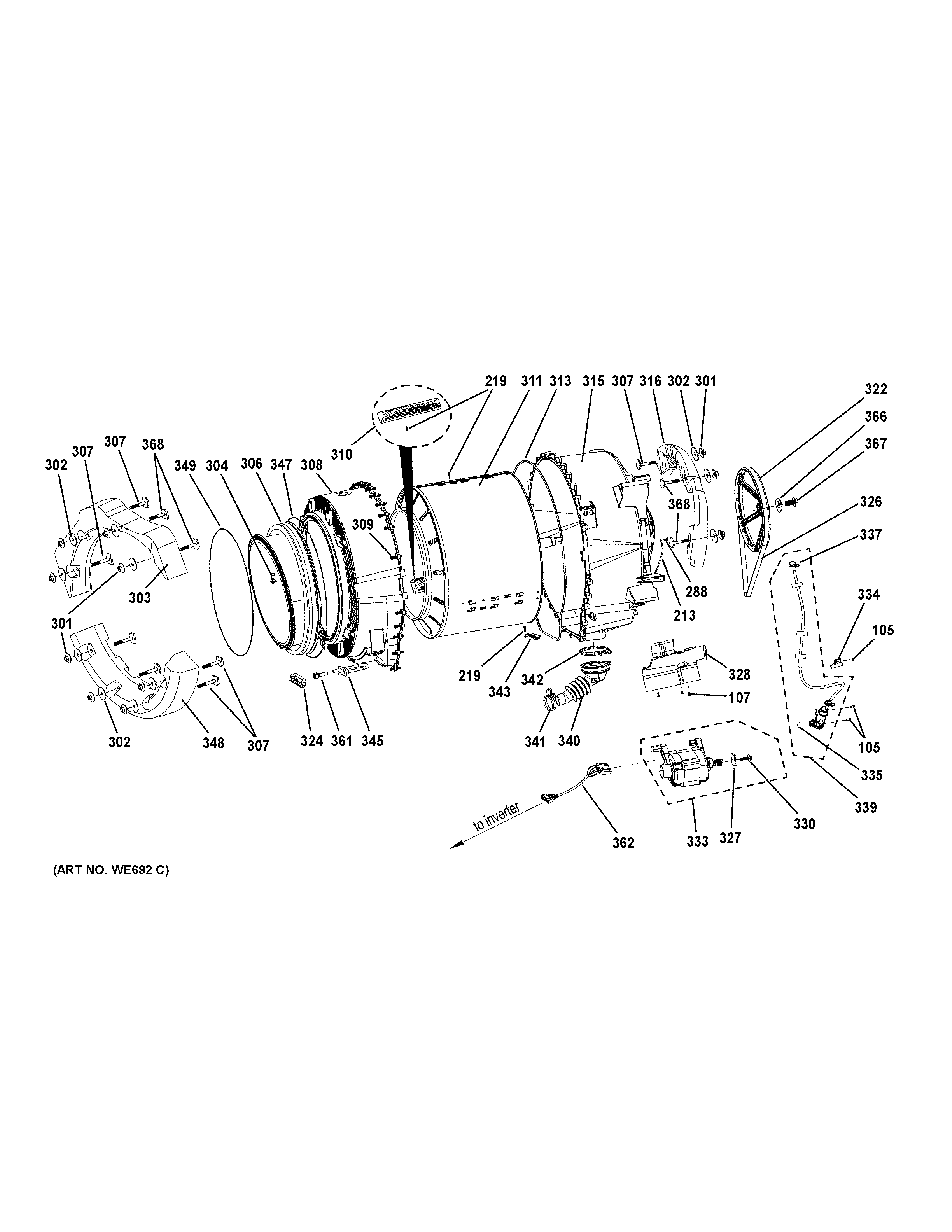

GFW450SPK0DG TUB & MOTOR

GFW450SPK0DG TUB & MOTOR

Written by

in

GFW450SPK0DG TUB & MOTOR

Products

PositionProduct
105WH02X10181 GE Screw ST3.5 x 11
107WH02X10183 GE Screw ST4 13
213WH19X20899 GE Washer Wire Harness
219WH02X10189 GE Screw ST4 13 F05
288WH02X10234 GE Screw M5 12
301WH02X10204 GE Nut M8
302WH02X10205 GE Washer
303WH01X22895 GE Front Counterweight
304WH08X20921 GE Washer Nozzle Gasket
306WH08X20906 GE Washer Boot Gasket
307WH02X10207 GE M8 Bolt 48
308WH45X22894 GE Tub Front
309WH02X10208 GE Screw ST6 35
310WH16X10128 GE Baffle
311BASKET ASM 5.1 CU FT
313WH08X10054 GE Tub Seal
315GEN WH45X10096
316WH01X22897 GE Rear Counterweight
322WH07X10022 GE Washer Drive Pulley Kit
324GEN WH44X10264
326WH08X10050 GE Washer Drive Belt
327WH02X10212 GE Motor
328WH16X10131 GE Washer Motor Shield
330GEN WH02X10213
333WH20X10078 GE Motor Assembly
334WH01X10396 GE Pressure Hose Support
335WH01X10397 GE Air Chamber Ring
337WH01X10273 GE Pressure Hose Clamp
339WH41X20908 GE Air Chamber Assembly
340GEN WH41X10250
341WH01X10275 GE Pump Clamp
342GEN WH01X10276
343WH16X10081 GE Heater Support
345GEN WH12X10309
347WH08X10055 GE Clamp Inside Gasket
348WH01X22896 GE Counterweight Front Bottom
349WH08X10056 GE Gasket Outside Clamp
361WH12X10351 GE Heater Thermistor
362WH19X10070 GE Motor Harness
366WH02X10337 GE Washer 34×12.5×3.5 mm
367WH02X10334 GE Bolt Flange M12 25
368WH02X10333 GE Bolt M8 x 38 Front Counterweight
