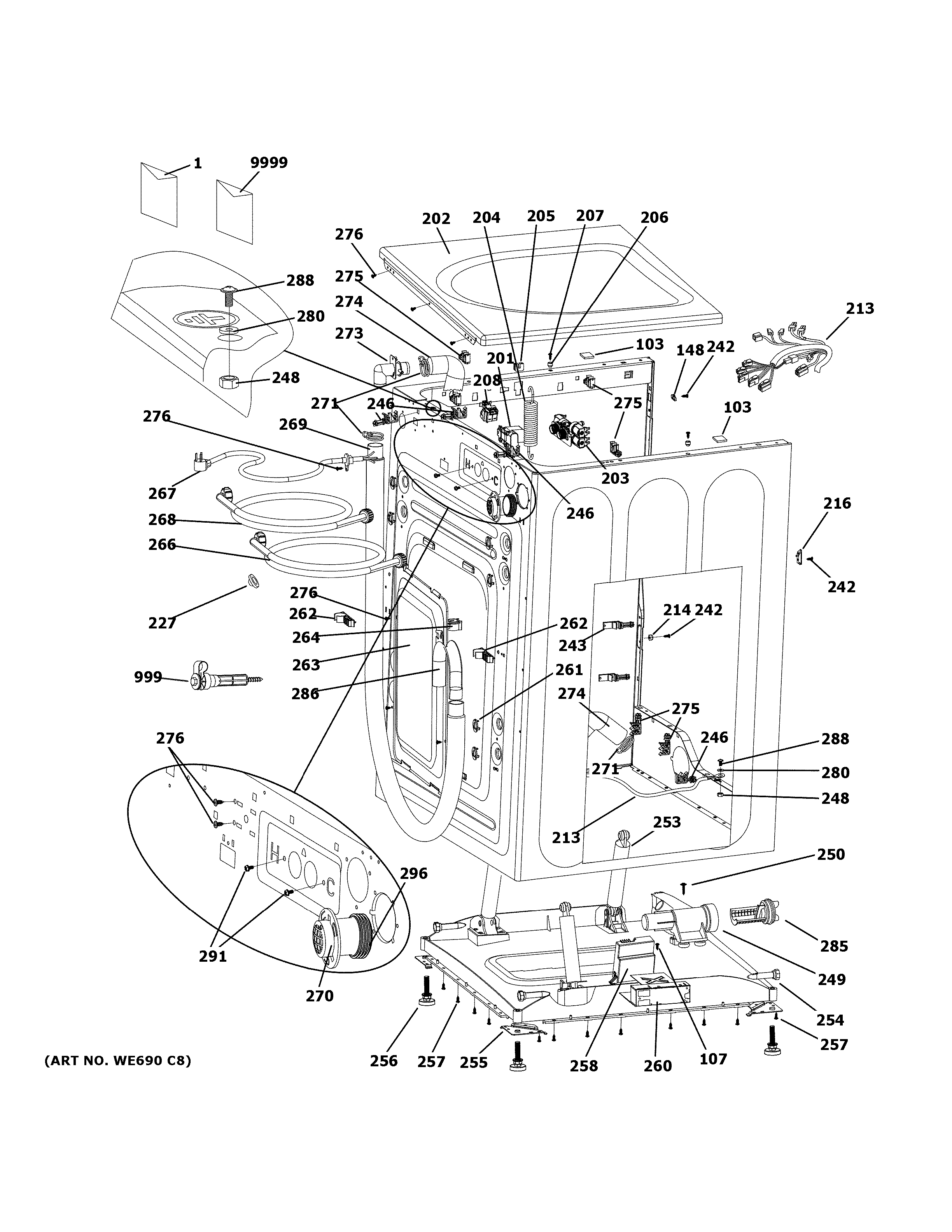

GFW450SPM1DG CABINET & TOP PANEL

GFW450SPM1DG CABINET & TOP PANEL

Written by

in

GFW450SPM1DG CABINET & TOP PANEL

Products

PositionProduct
1USER MANUAL
1PM MINI MANUAL
103FOAM PAD
107WH02X10183 GE Screw ST4 13
148WH01X20897 GE Washer Control Panel
201WH41X10301 GE EMI Filter
202TOP PANEL SUB
203WH13X27295 GE Washer Water Valve
204WH05X10012 GE Suspension Spring
205WH01X10251 GE Han R Spring
206WH01X10252 GE Top Panel Pin
207GEN WH02X10187
208WH12X20898 GE Washer Pressure Switch
213WH19X27943 GE Wire Harness
214WH01X10253 GE Front Panel Pin
216WH16X10073 GE Front Panel
227WH01X10636 GE Strainer Inlet Hose
242GEN WH02X10182
243WH16X10074 GE Catch Wire
246WH16X10076 GE Wire Catch
248GEN WH02X10199
249PUMP
250WH02X10200 GE Screw ST4*25
253DAMPER SHOCK
254WH01X10261 GE Damper Pin
255WH16X10077 GE Corner Bracket
256WH46X20828 GE Washer Leveling LE
257WH02X10201 GE Screw ST4.2 13
258WH12X27941 GE Inverter
260SHIELD
261WH44X10206 GE Cover Screw
262WH01X10262 GE Drain Hose Catch
263WH46X10237 GE Rear Cabinet Cover
264WH01X10263 GE Washer Inside Drain Hose
266GEN WH41X10286
267WH19X20903 GE Power Cord
268GEN WH41X10287
269WH41X10126 GE Drain Hose Outside
270WH01X10527 GE Vent Hose Coupling
271WH01X10265 GE Drain Hose Clamp
273WH01X10266 GE Drain Hose Coupling
274GEN WH41X10127
275WH16X10078 GE Wire Catch
276GEN WH02X10203
280GEN WH02X10218
285PUMP FILTER
286WH41X10133 GE Drain Hose U-Shape
288WH02X10234 GE Screw M5 12
291GEN WH02X10251
296GEN WH08X10052
999KIT – SHIPPING BOLT
9999WE25X10028 GE Washer Stacking Kit
