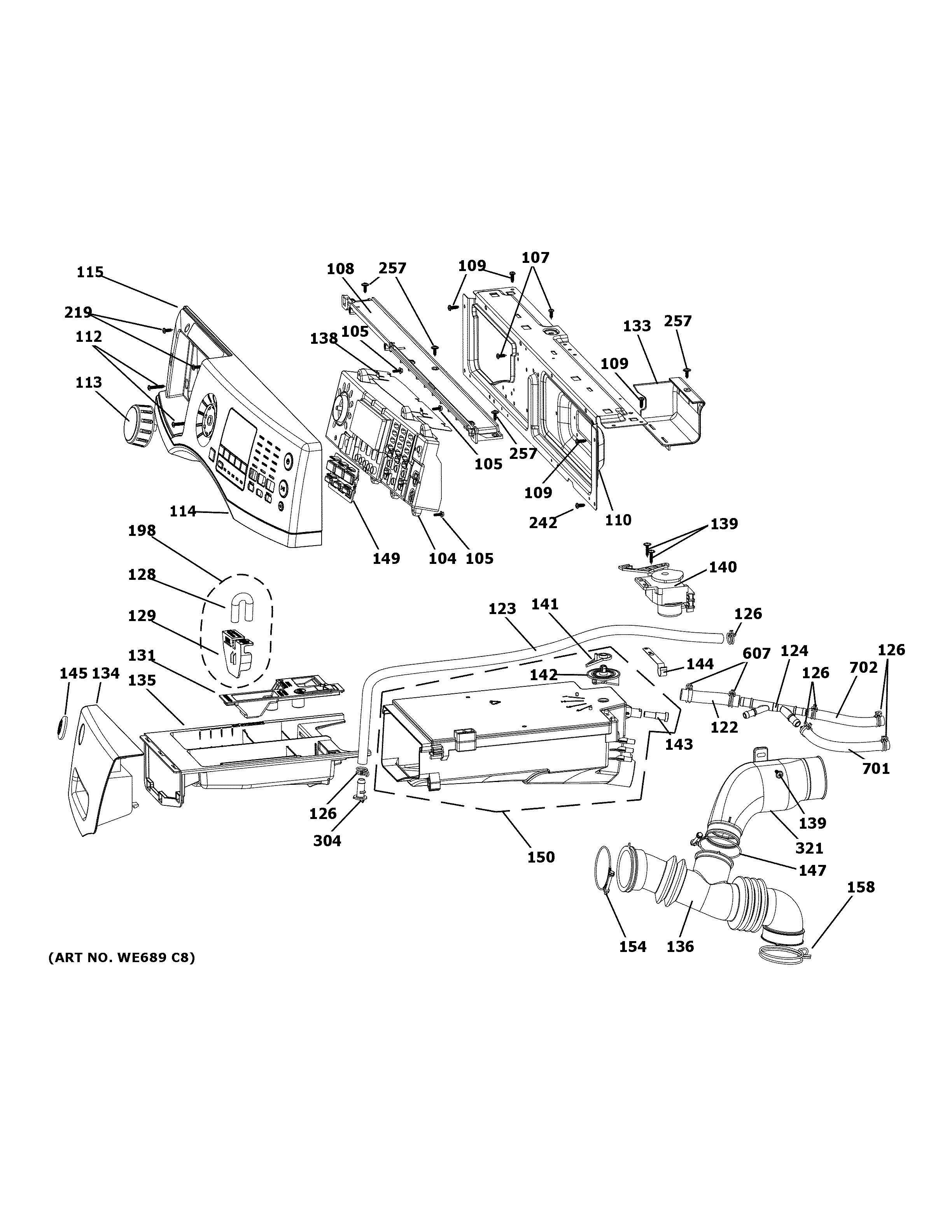

GFW450SSK0WW CONTROLS & DISPENSER

Products

Position	Product
104	WH12X24234 GE Unit Interface Board
105	WH02X10181 GE Screw ST3.5 x 11
107	WH02X10183 GE Screw ST4 13
108	WH44X21237 GE Washer Rear Control
109	WH02X10184 GE Screw 4.2 x 13
110	WH46X10272 GE Top Front Bracket
112	WH02X10185 GE Screw ST4 25
113	WE01X21167 GE Washer Knob
114	COSMETIC STRIP
115	CONTROL PANEL ASM WW
122	WH41X20914 GE Inlet Water Hose
123	WH41X20915 GE Spray Hose
124	3 WAY PIPE
126	WH01X10324 GE Washer Water Inlet Hose
128	WH41X10179 GE Siphon Pipe
129	WH41X10264 GE Liquid Detergent Insert
131	WH41X10181 GE Bleach Softener Cover
133	WH44X10296 GE Cover Harness
134	HANDLE SUB
135	WH41X10185 GE Drawer Dispenser Assembly
136	WH41X10257 GE Water Inlet Pipe
138	FLAME RESISTANT FLAP
139	GEN WH02X10186
140	WH43X10059 GE Washer Dispenser Actuator
141	WH01X10247 GE Diverter Indicator
142	WH01X10376 GE Washer Lever Plate
143	WH41X10121 GE Washer Dispenser Inlet
144	WH01X10249 GE Dispenser Clamp
145	WE19M10949 GE Badge
147	WH02X10341 GE Washer Water Inlet Hose
149	TEMP BUTTON PIPE SUB
150	WH41X10307 GE Main Box
154	GEN WH01X10377
158	WH01X10379 GE Washer Water Inlet Hose
198	WH49X21455 GE Drawer Kit
219	WH02X10189 GE Screw ST4 13 F05
242	GEN WH02X10182
257	WH02X10201 GE Screw ST4.2 13
304	WH08X20921 GE Washer Nozzle Gasket
321	WH41X10249 GE Vent Hose
607	WH01X10244 GE Pipe Clamp 3-Way
701	WH41X20922 GE Washer Hot Water Drain
702	COLD WATER OUT HOSE
