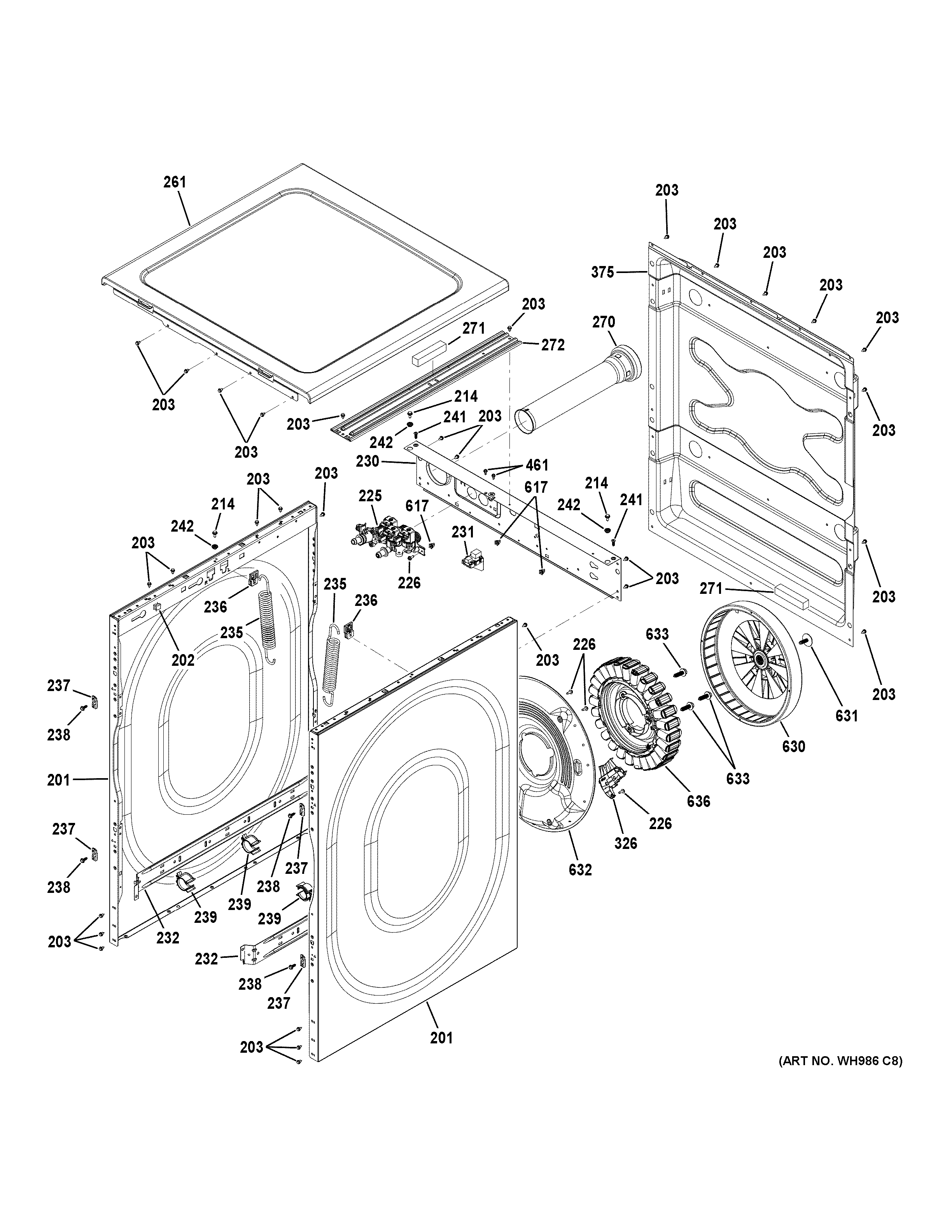

GFW480SPK0DG CABINET & TOP PANEL

GFW480SPK0DG CABINET & TOP PANEL

Written by

in

GFW480SPK0DG CABINET & TOP PANEL

Products

PositionProduct
201PANEL SIDE (DG)
202BRACKET SPRING
203WH02X10396 GE Screw 10-16 B HXW 3/8 S
214WH02X10398 GE Screw Type A 10-16 SHLDR
225WH13X10066 GE Washer Water Valve Assembly
226WH2X1205 GE Screw 8-18
230WH10X10024 GE Rear Top Panel
231WH12X28437 GE RJ45 Assembly
232BRACKET SUPPORT SIDE
235WH01X10730 GE Suspension Spring
236WH01X10732 GE Support Spring
237WH01X10733 GE Front Support Pin
238WD02X10151 GE Dishwasher Screw 10-16 AB 43WHEX 5/8
239WH01X10734 GE Clip
241WR01X10065 GE Screw
242BUSH GUIDE PIN
261WH44X26020 GE Top Panel Assembly
270WH01X10749 GE Air Vent Tube
271INSULATION LID
272BRACKET TOP
326WH12X23995 GE Rotor Position Sensor
375PANEL REAR BOTTOM
461WZ5X158D GE Screw Package of 12
617WR2X8349 GE Screw Grommet
630WH39X10014 GE Rotor
631WH02X10409 GE Screw 5/16-24 Hexagon
632WH10X10019 GE Motor Shield
633WH02X10404 GE Screw 5/16-18 HXW 1 1/4 S
636WH39X10013 GE Stator
