GFW480SSK0WW CONTROLS & DISPENSER

GFW480SSK0WW CONTROLS & DISPENSER

Written by

in

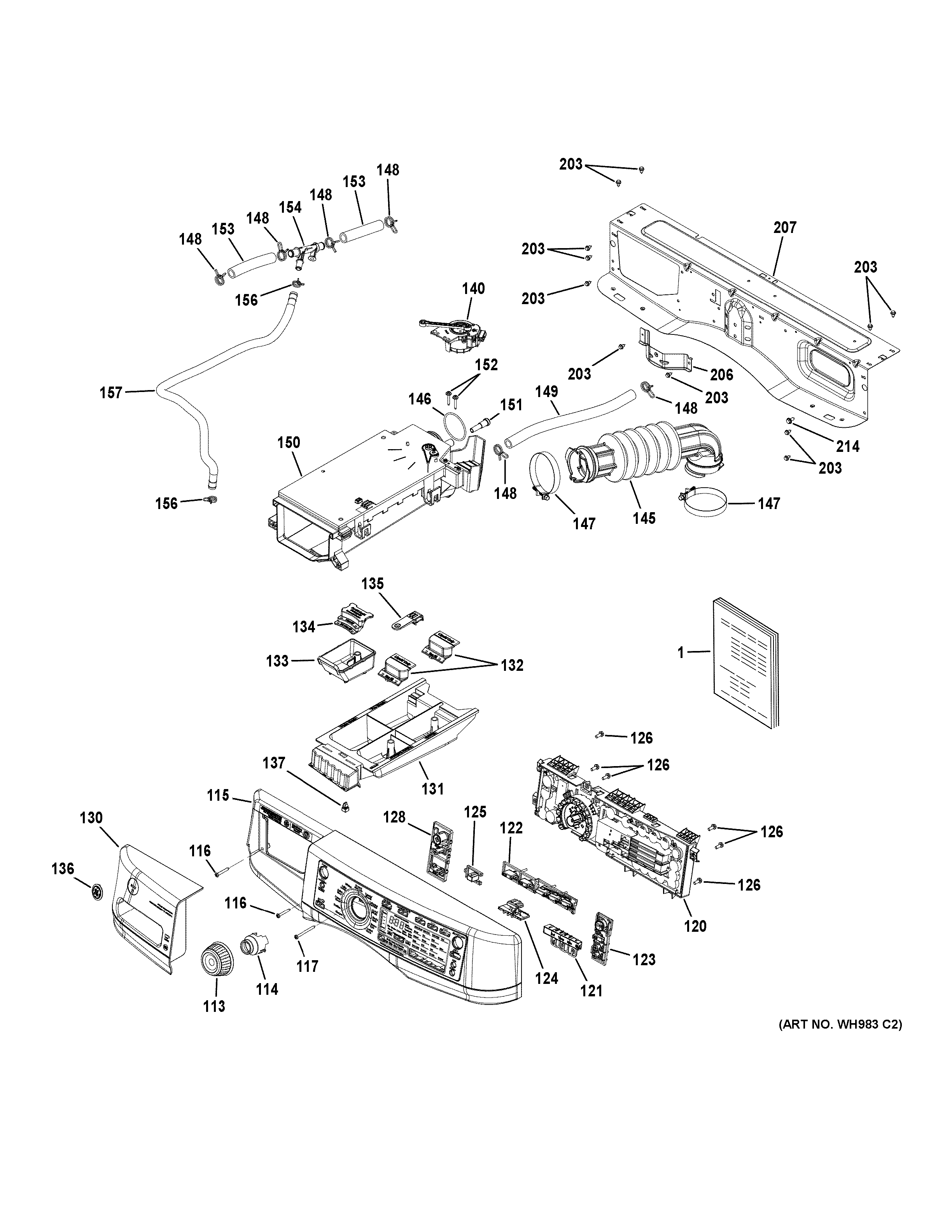

GFW480SSK0WW CONTROLS & DISPENSER

Products

PositionProduct
1MANUAL USE & CARE
1PM MANUAL MINI
1QUICK INSTALL GUIDE
113WH01X10748 GE Dryer Rubber Knob Assembly
114WH01X10743 GE Washer Dryer Knob Retainer
115WH42X25562 GE Control Panel Bezel Assembly
116WH02X10403 GE Screw 8-18 AB PNP 1-1/4"
117WH02X10408 GE Screw 8-18 AB PNP 2-1/8"
120WE04X25572 GE Printed Circuit Board UI Assembly
121WH42X11000 GE Button Tree Assembly – Soil
122BUTTON TREE ASM
123WH42X25571 GE Button Tree Assembly
124BUTTON TREE ASM
125WH42X10988 GE Button Tree
126WR01X10619 GE Refrigerator Screw
128WH42X10983 GE Button Tree Assembly
130WH47X25573 GE Refrigerator Dispenser Door Assembly
131WH47X10033 GE Drawer Body Dispenser
132WH47X20146 GE Siphon Cap
133WH47X20147 GE Detergent Cup
134WH47X10036 GE Dishwasher Cup Siphon Detergent
135WH47X10035 GE Refrigerator Drawer Dispenser Retainer
136WE19M10949 GE Badge
137WH02X10395 GE Grommet Closed Screw
140WH47X10040 GE Drive Assembly Diverter
145WH41X10337 GE Fill Hose Sub Assembly
146WH01X10741 GE O-Ring
147WH01X10739 GE Clamp
148WH01X10740 GE Clamp
149WH41X10338 GE Hose
150WH47X20507 GE Dispense Body Manual Assembly
151WH01X10738 GE Inlet Dispenser Nozzle
152WH02X10400 GE Scraper 6-19 BHXWP 1S
153WH41X10339 GE Hose
154WH41X10355 GE Channel Y
156WH01X10747 GE Clamp
157WH41X10351 GE Hose Assembly (Glass Clean)
203WH02X10396 GE Screw 10-16 B HXW 3/8 S
206WH10X10014 GE Control Bracket
207WH10X10013 GE Control Bracket
214WH02X10398 GE Screw Type A 10-16 SHLDR
