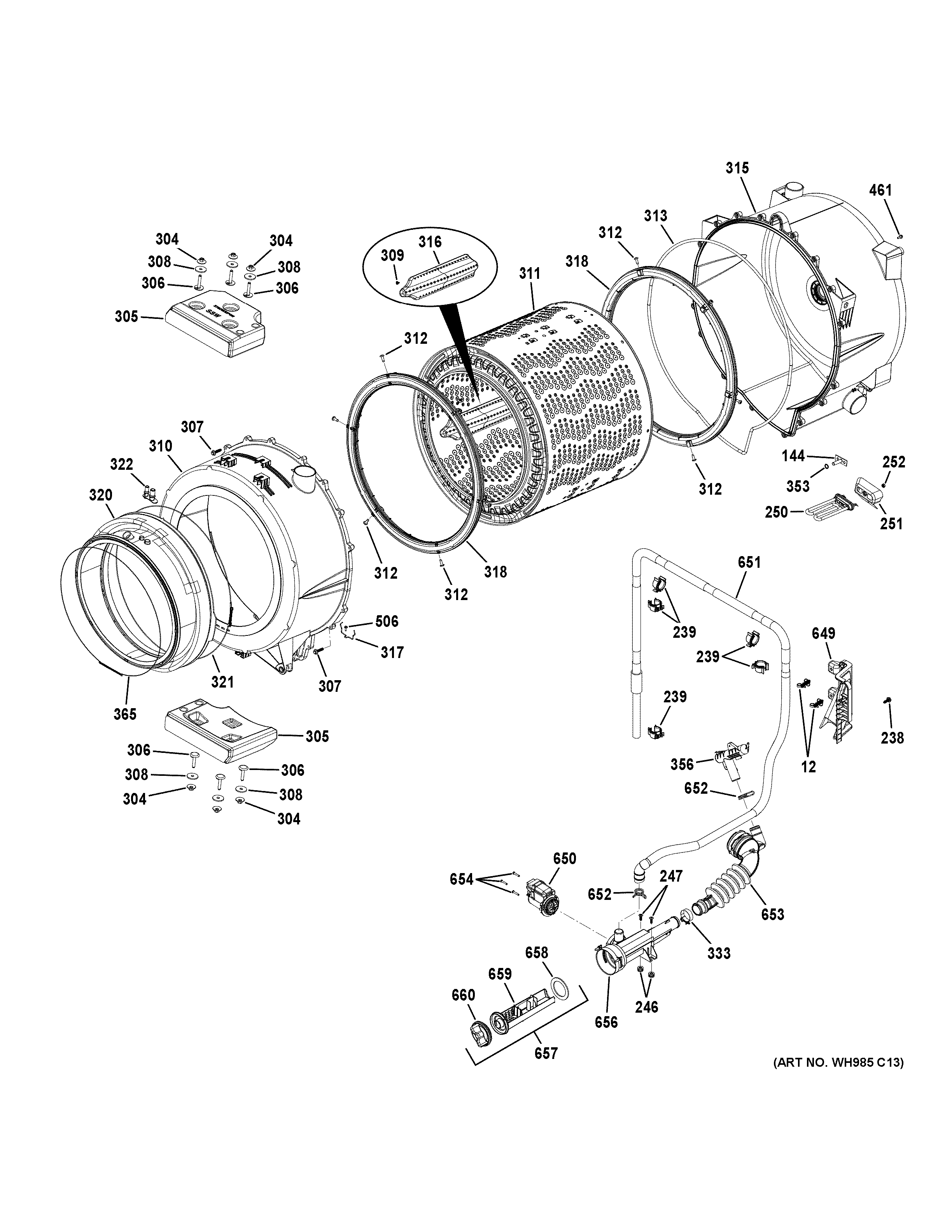

GFW480SSK0WW TUB & MOTOR

GFW480SSK0WW TUB & MOTOR

Written by

in

GFW480SSK0WW TUB & MOTOR

Products

PositionProduct
12WH01X10750 GE Wire Tie Standoff
144WH12X10597 GE Thermistor
238WD02X10151 GE Dishwasher Screw 10-16 AB 43WHEX 5/8
239WH01X10734 GE Clip
246WH01X10737 GE Isolation Grommet
247WH02X10399 GE Screw 8-18
250WH12X10589 GE Heater Assembly
251WH10X10010 GE Heater Shield
252WH01X10690 GE Heater Hex Nut
304WH01X10718 GE Nut 5/16-18-2B Hex
305WH01X10717 GE Counter Weight
306WH01X10721 GE Plate Stud
307WH02X10393 GE Screw 1/4" Plated Hex
308WH01X10719 GE Washer Flat
309WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
310WH45X10141 GE Washer Front Tub
311BASKET AND TRUNNION ASM
312WH02X10392 GE Screw 10-14 AB Flat 5/8"
313WH01X21994 GE Washer O-Ring Seal
315TUB ASM REAR
316WH16X10187 GE Baffle
317WH16X10188 GE Heater Bracket Support
318WH45X10138 GE Balance Ring Assembly
320GASKET MAIN
321WH01X10742 GE Gasket Clamp
322WH01X23255 GE Nozzle Gasket
333WD01X10105 GE Dishwasher Clamp
353WH01X10677 GE Thermistor O-Ring
356AIR CHAMBER
365WH01X10744 GE Washer Gasket Clamp
461WZ5X158D GE Screw Package of 12
506WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
649WH41X25496 GE Drain Hose Guide
650WH23X10051 GE Washer Drain Pump
651WH41X20509 GE Drain Hose
652WH01X10746 GE Clamp
653WH41X10340 GE Sump Hose
654WH02X10402 GE Scr 8-16 B Hxwt 19/20 S
656WH41X21494 GE Combination Pump Housing
657WH41X10358 GE Pump Filter Assembly
658WH08X10068 GE Pump Seal
659WH41X10360 GE Filter Body
660WH41X10343 GE Washer Cap Filter
