GFW490RPK0DG BASE PAN & PEDESTAL

GFW490RPK0DG BASE PAN & PEDESTAL

Written by

in

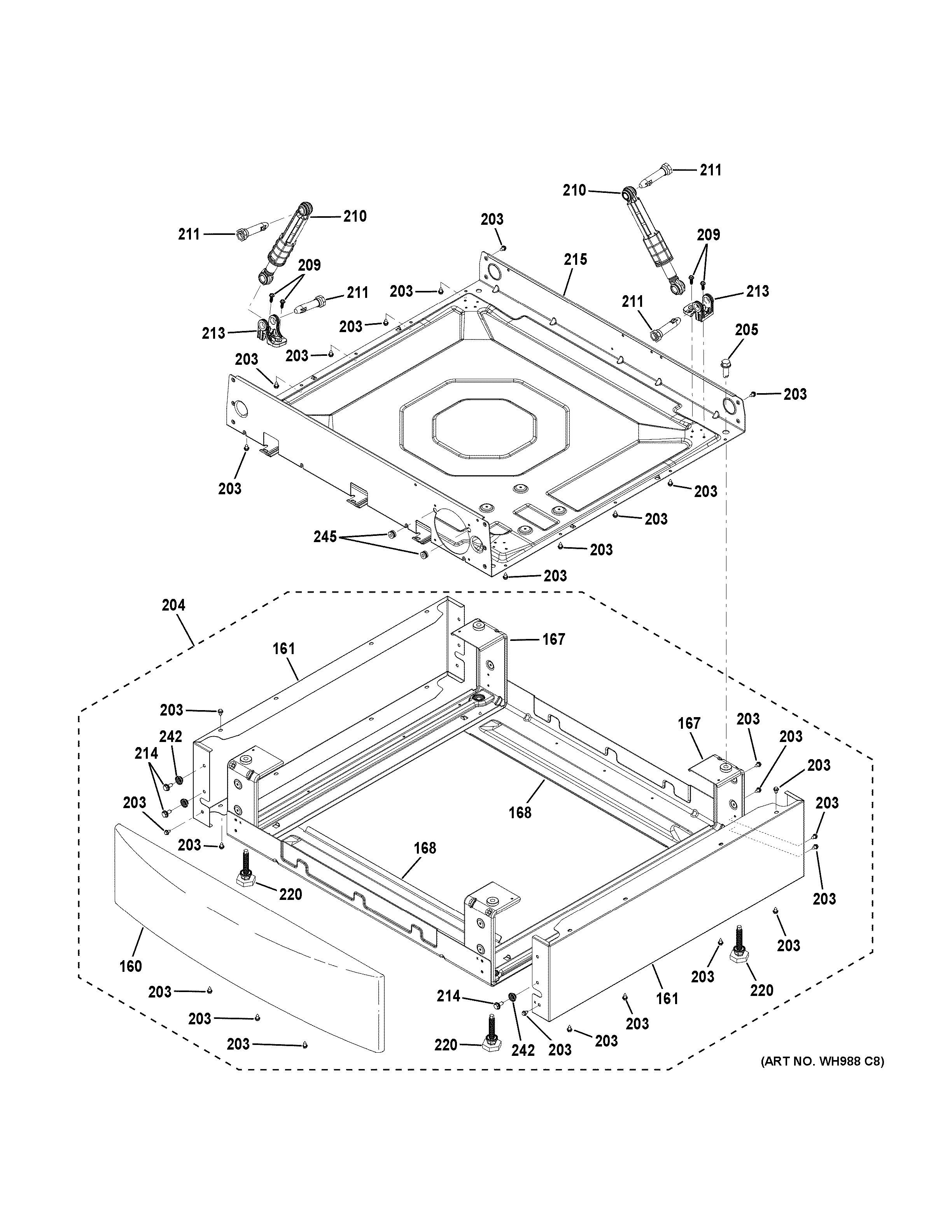

GFW490RPK0DG BASE PAN & PEDESTAL

Products

PositionProduct
160WH46X26036 GE Front Riser Panel Assembly
161PANEL SIDE RISER (DG)
167RISER SIDE BRACKET ASM
168WH10X10017 GE Riser Cross Bracket Assembly
203WH02X10396 GE Screw 10-16 B HXW 3/8 S
204RISER ASM (DG)
205WH02X10397 GE Riser Bolt Attachment
209WH02X20698 GE Screw 10-16 AB Hex .532
210WH01X10727 GE Washer Damper Assembly
211WH01X10726 GE Damper Pin
213WH01X10728 GE Damper Mount
214WH02X10398 GE Screw Type A 10-16 SHLDR
215WH17X10023 GE Heater Base
220WH02X10401 GE Levelling Leg Assembly
242BUSH GUIDE PIN
245GROMMET ISOLATION
