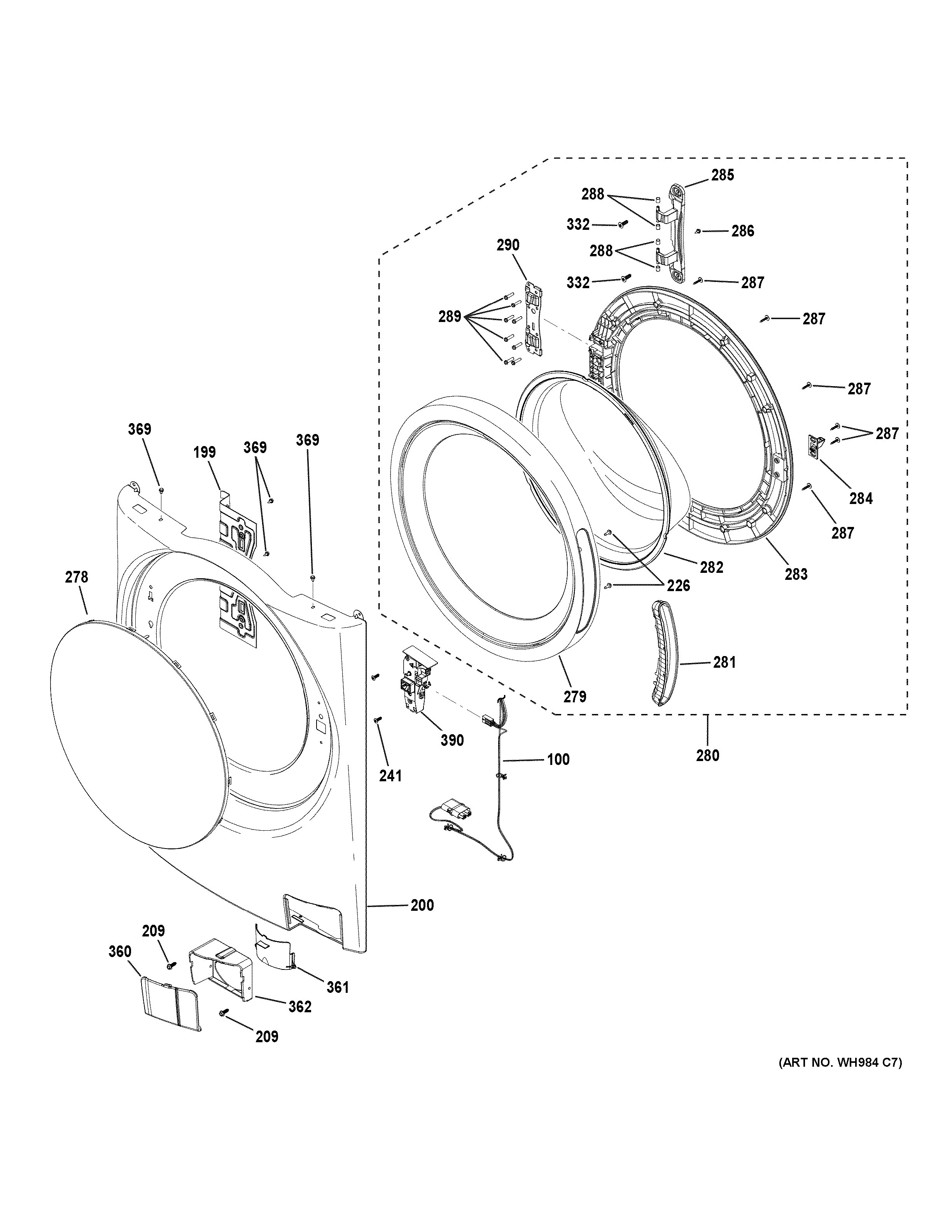

GFW490RPK0RR FRONT PANEL & DOOR

GFW490RPK0RR FRONT PANEL & DOOR

Written by

in

GFW490RPK0RR FRONT PANEL & DOOR

Products

PositionProduct
100HARNESS MAIN
199WH10X10020 GE Stiffener Housing
200WH44X25838 GE Front Panel Assembly
209WH02X20698 GE Screw 10-16 AB Hex .532
226WH2X1205 GE Screw 8-18
241WR01X10065 GE Screw
278WH44X21159 GE Door Cover Protector
279WH46X10284 GE Door Cover
280MIDLINE DOOR ASM
281WH01X10725 GE Door Handle
282WH46X25561 GE Glass Door
283WH46X25014 GE Door Frame
284WH01X10731 GE Door Striker
285WH01X10723 GE Hinge
286WH2X930 GE Screw
287WH02X10394 GE Screw 8-18 AB TRQ 5/8 Stainless Steel
288WH01X10722 GE Hinge Bushing
289WB1K5157 GE Oven Black Screw
290WH01X10724 GE Hinge Plate
332WH02X10139 GE Screw 10-32 B TRT-25 5/8
360WH44X10331 GE Pump Housing Cover
361WH01X10754 GE Laundry Cleanout Funnel
362WH01X10753 GE Pump Housing Enclosure
369WH02X26056 GE Screw 10-16 AB Hex 1/2"
390WH01X23494 GE Washer Door Lock Module
