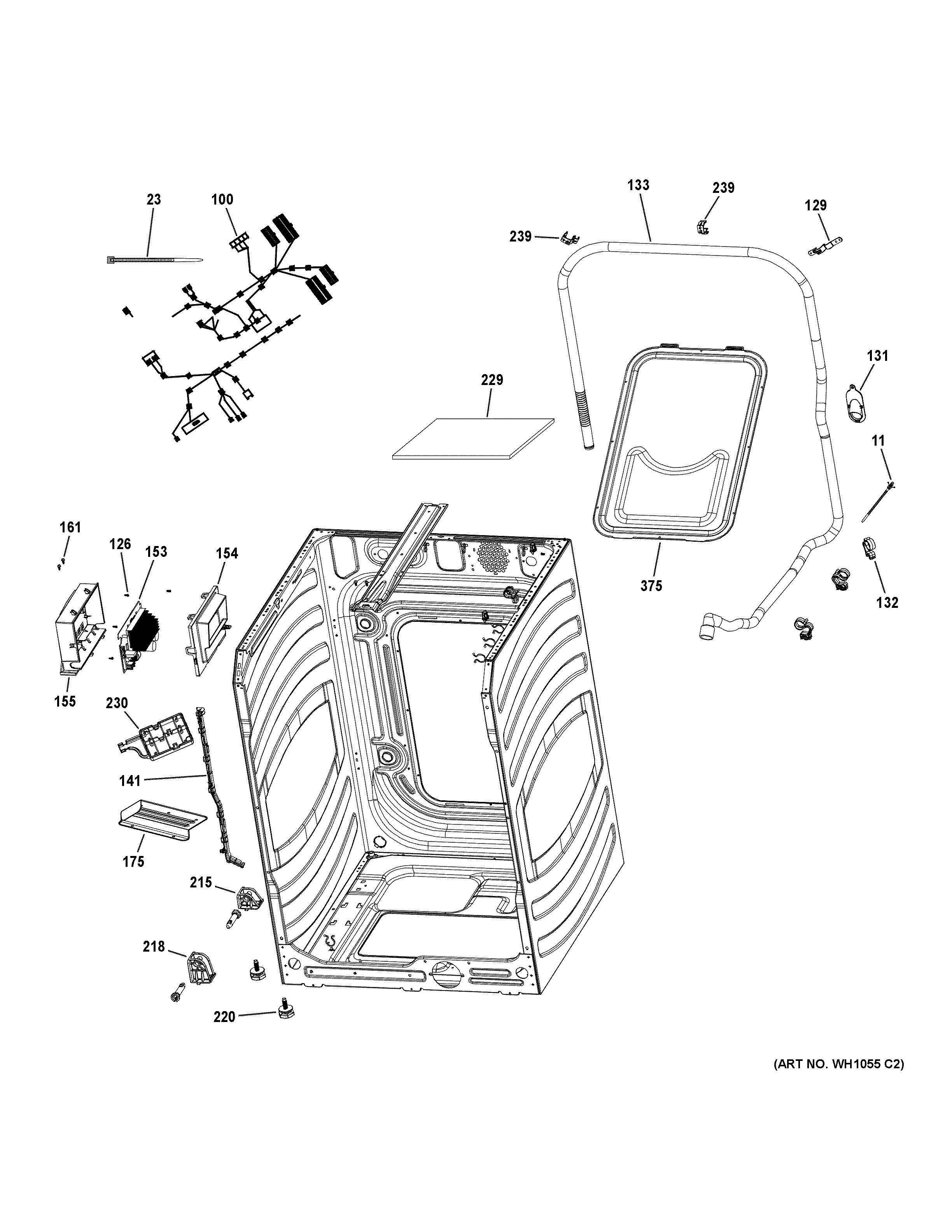

GFW510SCN0WW CABINET (2)

GFW510SCN0WW CABINET (2)

Written by

in

GFW510SCN0WW CABINET (2)

Products

PositionProduct
11LARGE WIRE TIE
23WH01X26259 GE Wire Tie
100WH08X29512 GE Main Wiring Harness
126M SCREW
129WH01X29613 GE External Drain Hose Support
131WH02X29619 GE Drain Hose Guide
132WH02X29616 GE Internal Drain Hose Assembly
133EXTERNAL DRAIN HOSE FL WASHER
141WH01X29651 GE Left Harness Support
153INVERTER BOARD FL WASHER
154WH01X35100 GE Inverter Box Drive Motor
155WH01X29624 GE Inverter Cover
161WR01X28375 GE M5 x 16 Screw
175INVERTER HEAT SHIELD
215WH13X29675 GE Rear Damper Bracket
218WH13X29653 GE Front Damper Bracket
220WH01X29505 GE Leveling Leg
229HEAT SHIELD
230TERMINAL BRACKET
239WH02X29635 GE External Drain Hose Support
375WH10X29625 GE Cover Rear
