GFW510SCN0WW CONTROLS & DISPENSER

GFW510SCN0WW CONTROLS & DISPENSER

Written by

in

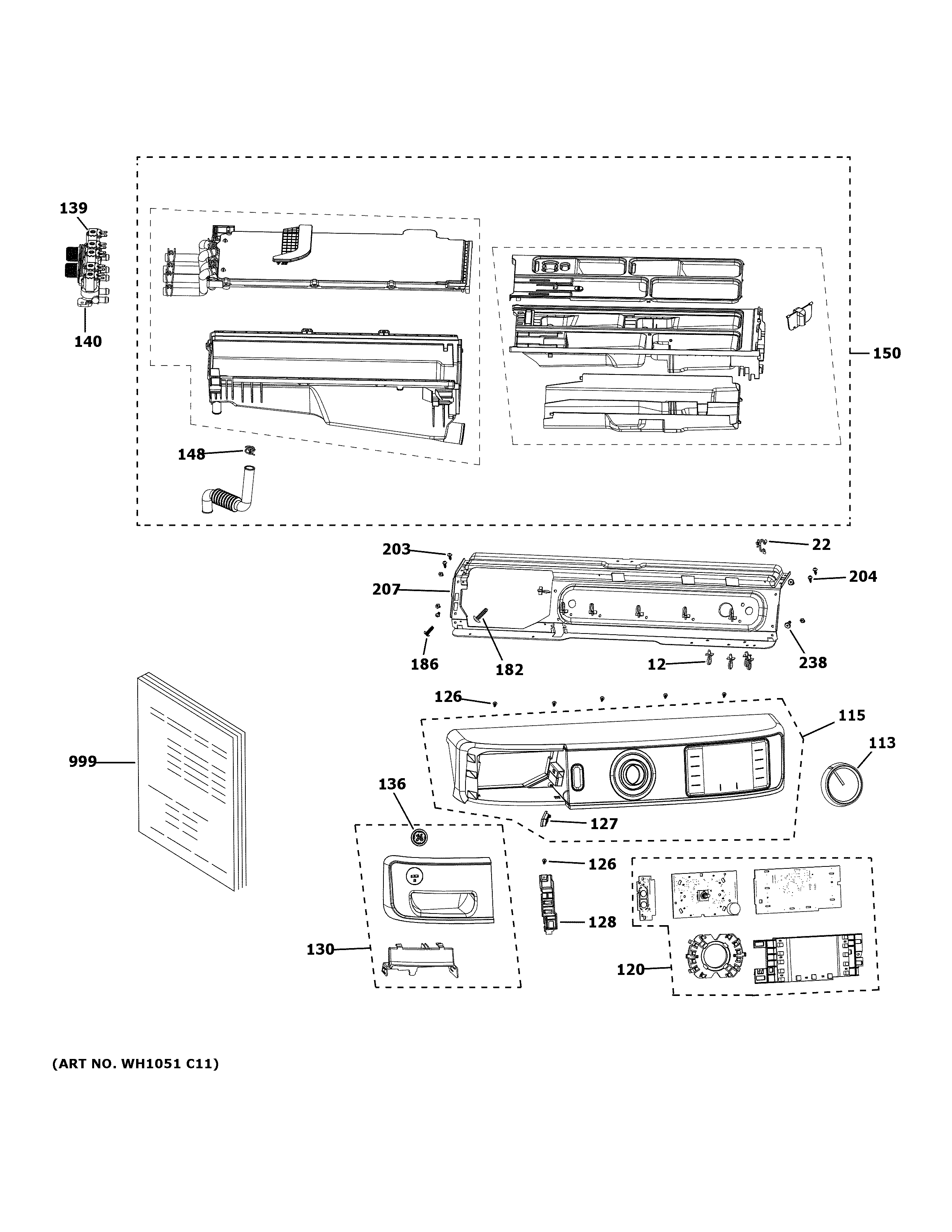

GFW510SCN0WW CONTROLS & DISPENSER

Products

PositionProduct
12WH02X29626 GE Ground Harness Clamp
22FIXED-LINE CLIP
113WE01X29707 GE Selector Knob
115WH22X29554 GE White Control Panel
120WH22X34917 GE Washer User Interface Board with Instructions
126M SCREW
127WH01X29669 GE RJ45 Cover
128WH01X29631 GE Power Button Support
130WH01X29670 GE Dispenser Drawer Handle
136GE BADGE
139WH23X29527 GE Hot Water Valve
140WH23X29541 GE Appliance Water Valve
148WH01X26245 GE Tub Vent Hose Clamp
150WH42X35098 GE Dispenser Drawer
182WE02X26338 GE Front Panel Screws
186WH02X30343 GE Hinge Base Fastening Screw
203WH02X30339 GE Ground Screw
204WH02X26236 GE Screw Assembly
207WH13X29643 GE Control Bracket
238WH02X30370 GE Shoulder Bolt
999PM OWNERS AND INSTALL
999PM MINI MANUAL AND WIRING
