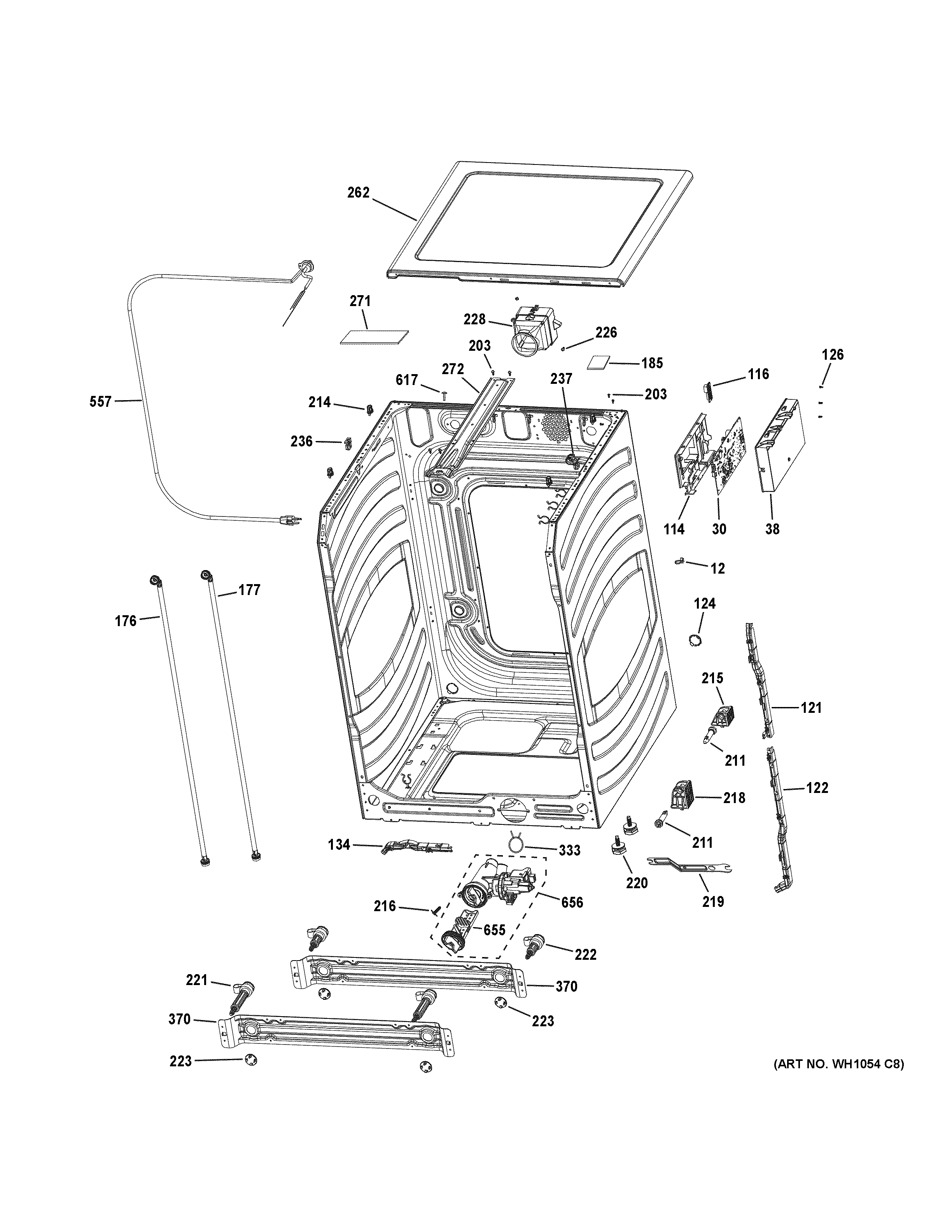

GFW510SCV0WW CABINET (1)

GFW510SCV0WW CABINET (1)

Written by

in

GFW510SCV0WW CABINET (1)

Products

PositionProduct
12WH02X29626 GE Ground Harness Clamp
30MAIN CONTROL BOARD FLW LE
38WH01X29667 GE Control Board Cover
114WH01X29633 GE Wi-Fi Bracket
116WH22X36577 GE Wi-Fi and Bluetooth Board with Instructions
121WH01X29655 GE Upper Right Harness Support
122WH01X29678 GE Refrigerator Lower Right Harness Support
124WH02X29673 GE Access Cover Damper Pin
126M SCREW
134WH01X29676 GE Bottom Support Harness
176WH41X27465 GE Fill Hose Inlet
177WH41X27464 GE Inlet Fill Hose
185FOAM PAD
203WH02X30339 GE Ground Screw
211DAMPER PIN
214WH02X29617 GE Top Panel Pin
215WH13X29675 GE Rear Damper Bracket
216WH02X30340 GE Drain Hose Fixing Screw
218WH13X29653 GE Front Damper Bracket
219LEVELING LEG WRENCH FL WASHER
220WH01X29505 GE Leveling Leg
221WH02X30002 GE Washer Bolt
222WH02X29999 GE Washer Bolt
223WH02X29671 GE Washer Shipping Bolt Hole Cover
226WH02X26247 GE Housing Screw ST4 12
228WH16X29504 GE Fan Housing Overnight Dry
236WH02X29668 GE Left Spring Sheath
237WH02X29640 GE Right Sheath Spring
262WH13X29519 GE Top Panel
271WH01X28406 GE Crossbrace Foam Pad
272CROSS BRACE
333WH02X30362 GE Drain Pump Clamp
370WH13X29674 GE Bracket Shipping
557WH08X29508 GE Power Cord
617WH02X27118 GE Water Valve Screws
655WH23X38617 GE Pump Filter with Seal
656DRAIN PUMPS & FILTER
