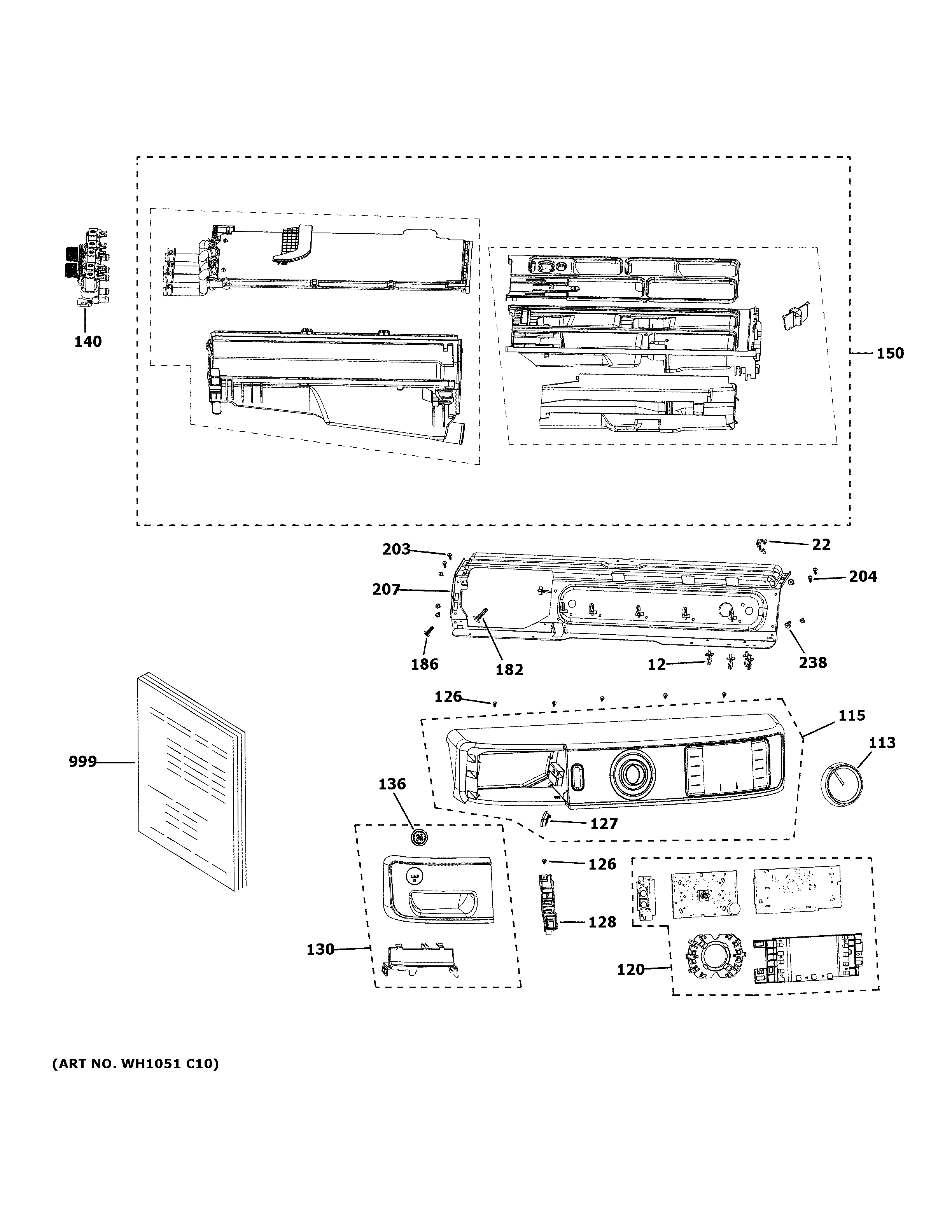

GFW550SPR3RS CONTROLS & DISPENSER

GFW550SPR3RS CONTROLS & DISPENSER

Written by

in

GFW550SPR3RS CONTROLS & DISPENSER

Products

PositionProduct
12WH02X29626 GE Ground Harness Clamp
22FIXED-LINE CLIP
113WH01X30000 GE Knob Selector
115WH22X34557 GE Washer Control Panel 550 SA
120WH22X34938 GE Washer User Interface Board
126M SCREW
127WH01X29669 GE RJ45 Cover
128WH01X29631 GE Power Button Support
130WH01X34618 GE Dispenser Drawer Handle
136GE BADGE
140WH23X29538 GE Hot Water Valve
150WH42X35099 GE Manual Dispense Drawer
182WE02X26338 GE Front Panel Screws
186WH02X30343 GE Hinge Base Fastening Screw
203WH02X30339 GE Ground Screw
204WH02X26236 GE Screw Assembly
207WH13X29643 GE Control Bracket
238WH02X30370 GE Shoulder Bolt
999PM MINI MANUAL AND WIRING
999PM OWNERS AND INSTALL
