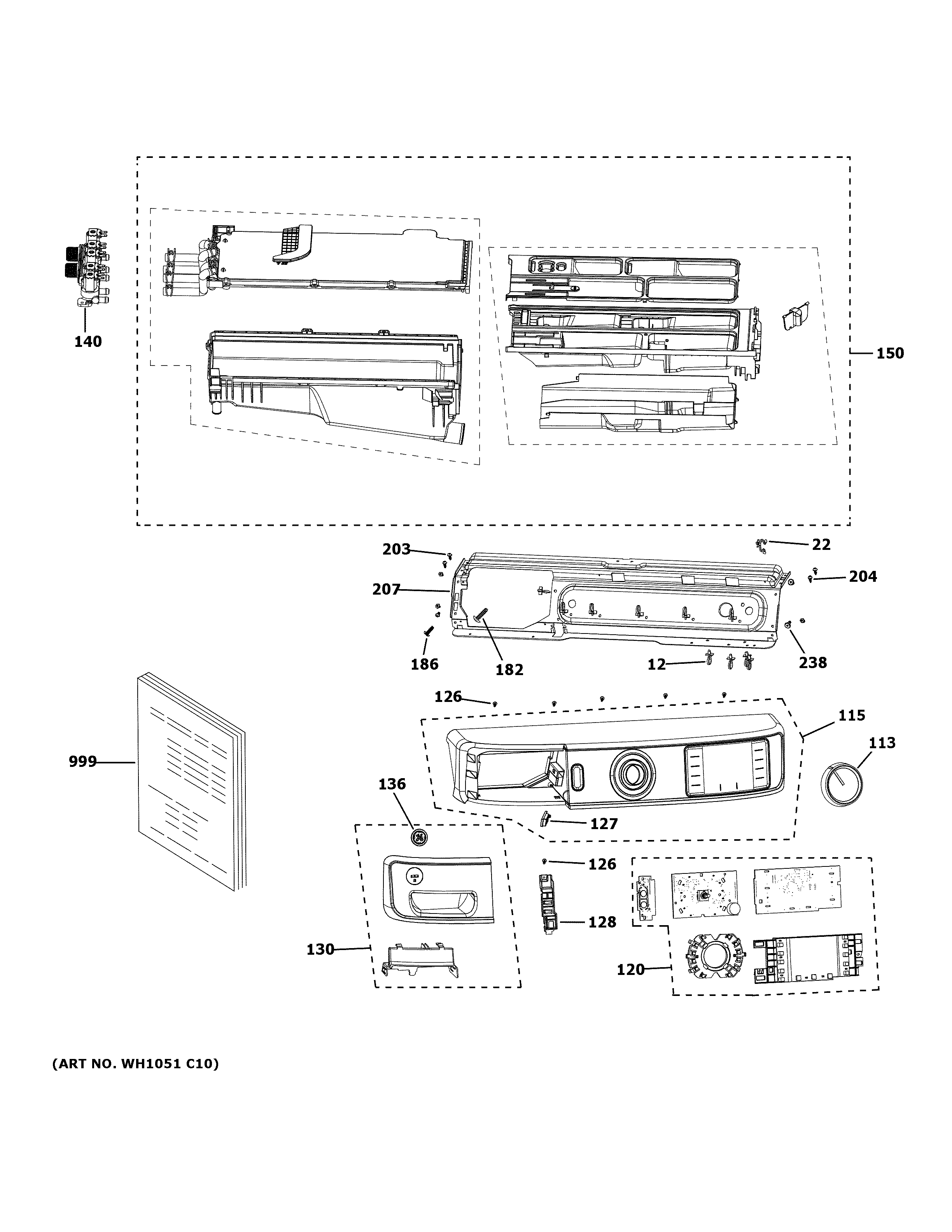

GFW550SSN2WW CONTROLS & DISPENSER

Products

Position	Product
12	WH02X29626 GE Ground Harness Clamp
22	FIXED-LINE CLIP
113	WH01X30000 GE Knob Selector
115	WH22X29545 GE White Control Panel
120	WH22X34917 GE Washer User Interface Board with Instructions
126	M SCREW
127	WH01X29669 GE RJ45 Cover
128	WH01X29631 GE Power Button Support
130	WH01X29680 GE Dispenser Drawer Handle
136	GE BADGE
140	WH23X29538 GE Hot Water Valve
150	WH42X35099 GE Manual Dispense Drawer
182	WE02X26338 GE Front Panel Screws
186	WH02X30343 GE Hinge Base Fastening Screw
203	WH02X30339 GE Ground Screw
204	WH02X26236 GE Screw Assembly
207	WH13X29643 GE Control Bracket
238	WH02X30370 GE Shoulder Bolt
999	PM OWNERS AND INSTALL
999	PM MINI MANUAL AND WIRING
